Vertiv NetXtend Flex 20

To Next Page

To Previous Page

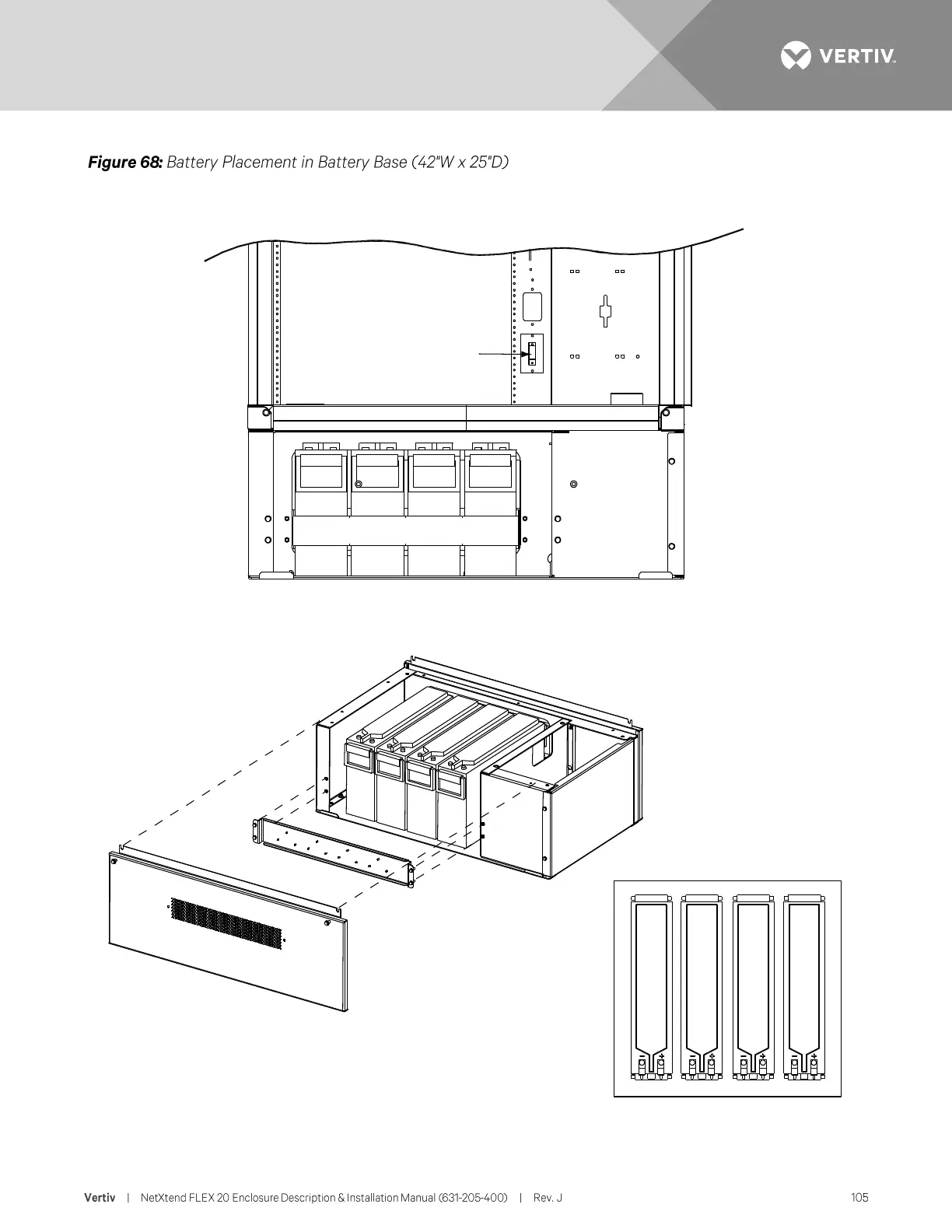

42W x 25D

Battery Base

(Zone 2)

Top View

Battery Tray in Battery Base

front

Battery String(s)

Front View

Note:

-48VDC systems have one (1)

battery string per battery base.

+24VDC systems have two (2)

battery strings per battery base.

Battery Disconnect

Circuit Breaker

BATTERY BASE

42” WIDE X 25” DEEP
