Vertiv NetXtend Flex 20 - Page 117

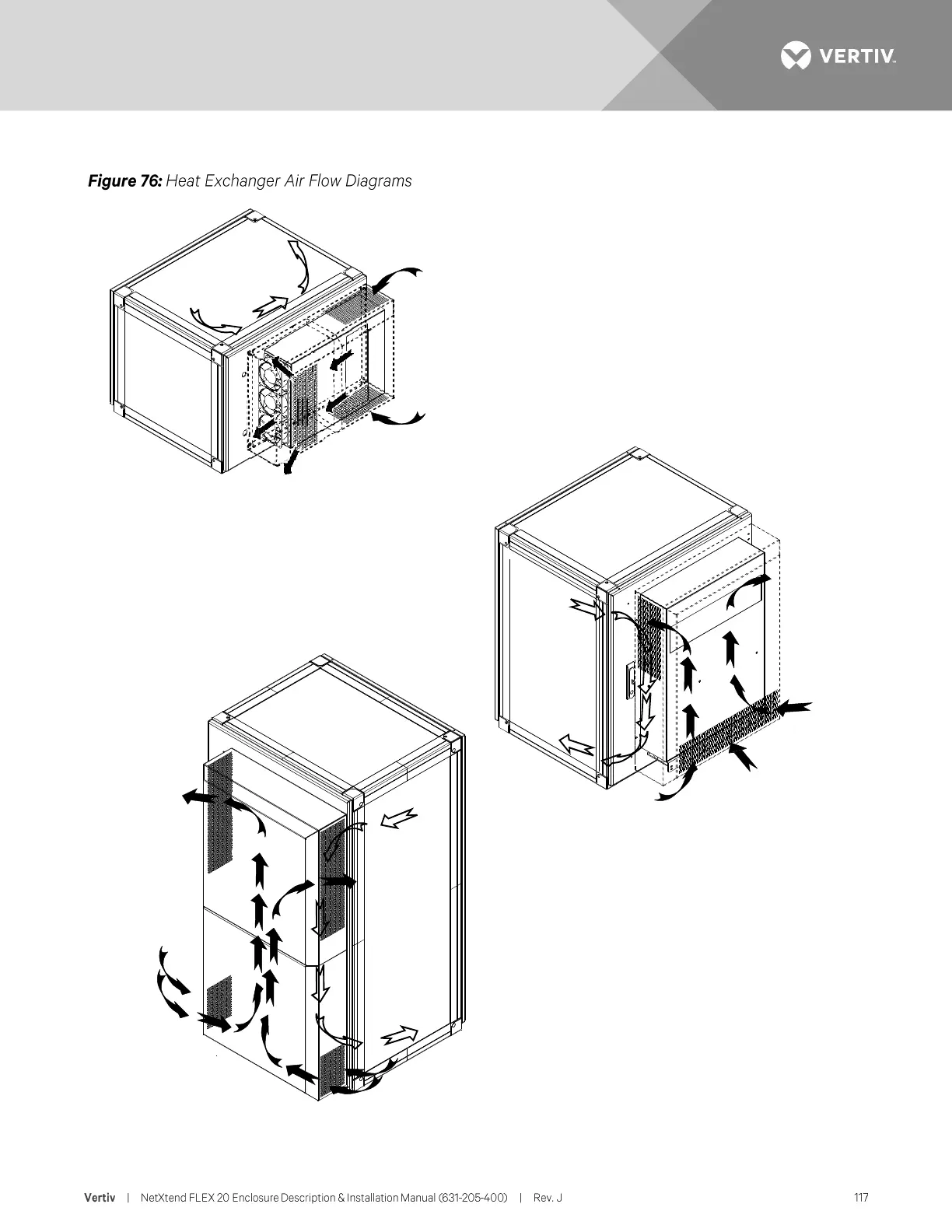

1000W Heat Exchanger
(Shown on Flex 8)
(Rotate heat exchanger 90°
counterclockwise for Flex 17
and higher RU cabinets.)
FRESH AIR FROM
OUTSIDE CABINET
FRESH AIR FROM
OUTSIDE CABINET
INTERNAL
ENCLOSURE
AIRFLOW
AIR
EXHAUSTED
OUTSIDE
INTERNAL
ENCLOSURE
AIRFLOW
FRESHAIR FROM
OUTSIDE CABINET
AIR
EXHAUSTED
OUTSIDE
1450W Heat Exchanger
(Shown on Flex 17)
FRESH AIR FROM
OUTSIDE CABINET
FRESH AIR FROM
OUTSIDE CABINET
AIR
EXHAUSTED
OUTSIDE
INTERNAL
ENCLOSURE
AIRFLOW
2800W Heat Exchanger
(Shown on Flex 27)
