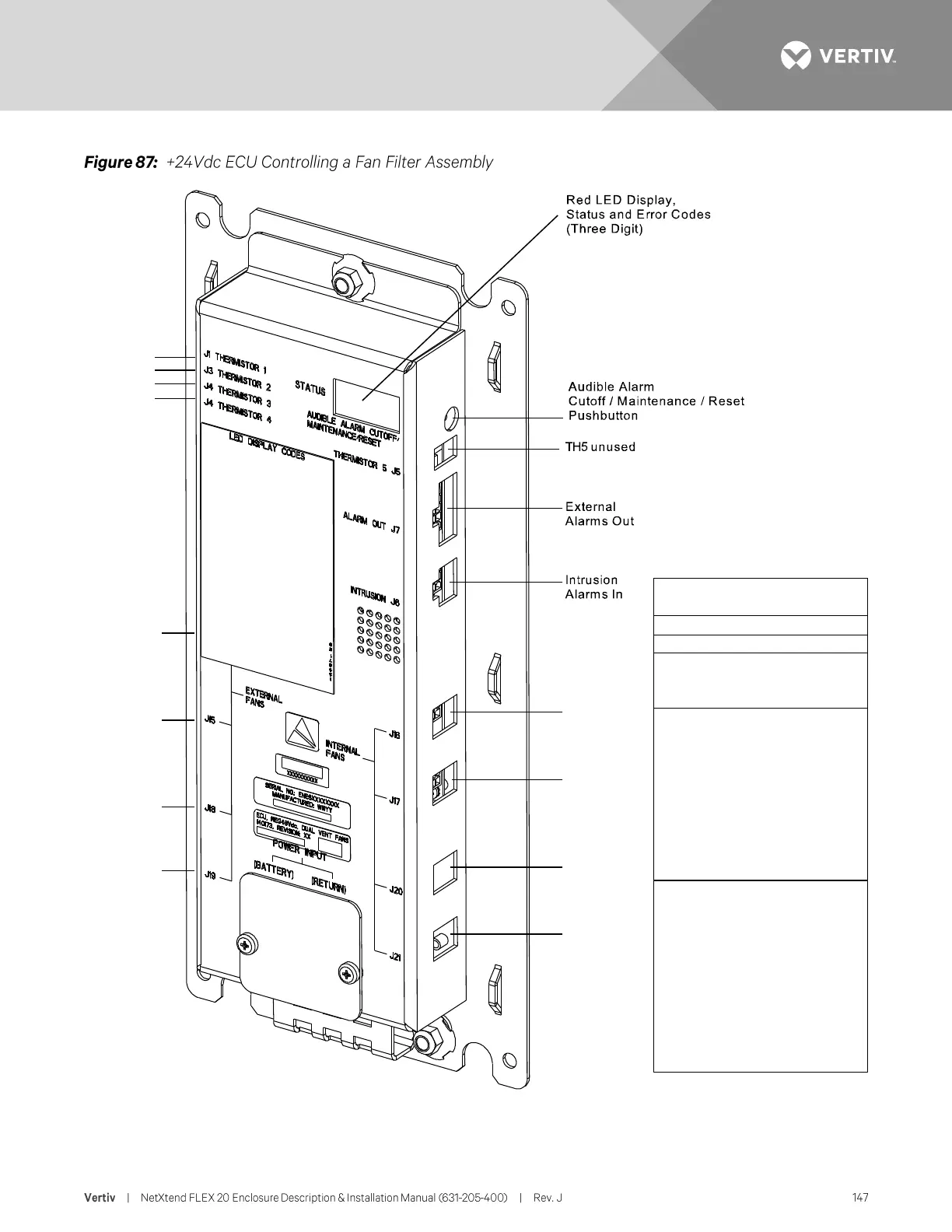

Vertiv NetXtend Flex 20

To Next Page

To Previous Page

UP - Controller OK

C01 - FAN PCB FAILURE

F01 - J16 INTERNAL FAN #1 FAIL

F02 - J17 INTERNAL FAN #2 FAIL

LED DISPLAY CODES

d01 - DOOR OPEN

d02 - DOOR AJAR

d03 - MAINTENANCE MODE

E01 - TH1 FAIL

E07 - HIGH TEMP #1

E12 - LOW TEMP #1

Thermistor 1

unused

Fan #2

Fan #1

unused
