Shroud Removal
Remove Hardware:
- (4) 1/4-20 x 0.75 Machine Screws
- (4) 1/4-20 Rubberized Washers
- (4) 1/4-20 Hex Threaded Inserts
b
o
t
t
o
m
Air Flow
Arrow
Air Flow
Arrow
Shroud
Outside of Door
with Shroud Removed
Outside of Door
with Shroud Removed
External
Fans
Shroud
External
Fans
Shroud Removal
Remove hardware:
- (4) 1/4-20 x 0.75 Machine Screws
- (4) 1/4-20 Rubberized Washers
- (4) 1/4-20 Hex Threaded Inserts
No. 4 Flat Washers
4-40 Ext. Lock Washers
4-40 Pan-Head Screws
No. 4 Flat Washers
4-40 Ext. Lock Washers
4-40 Pan-Head Screws

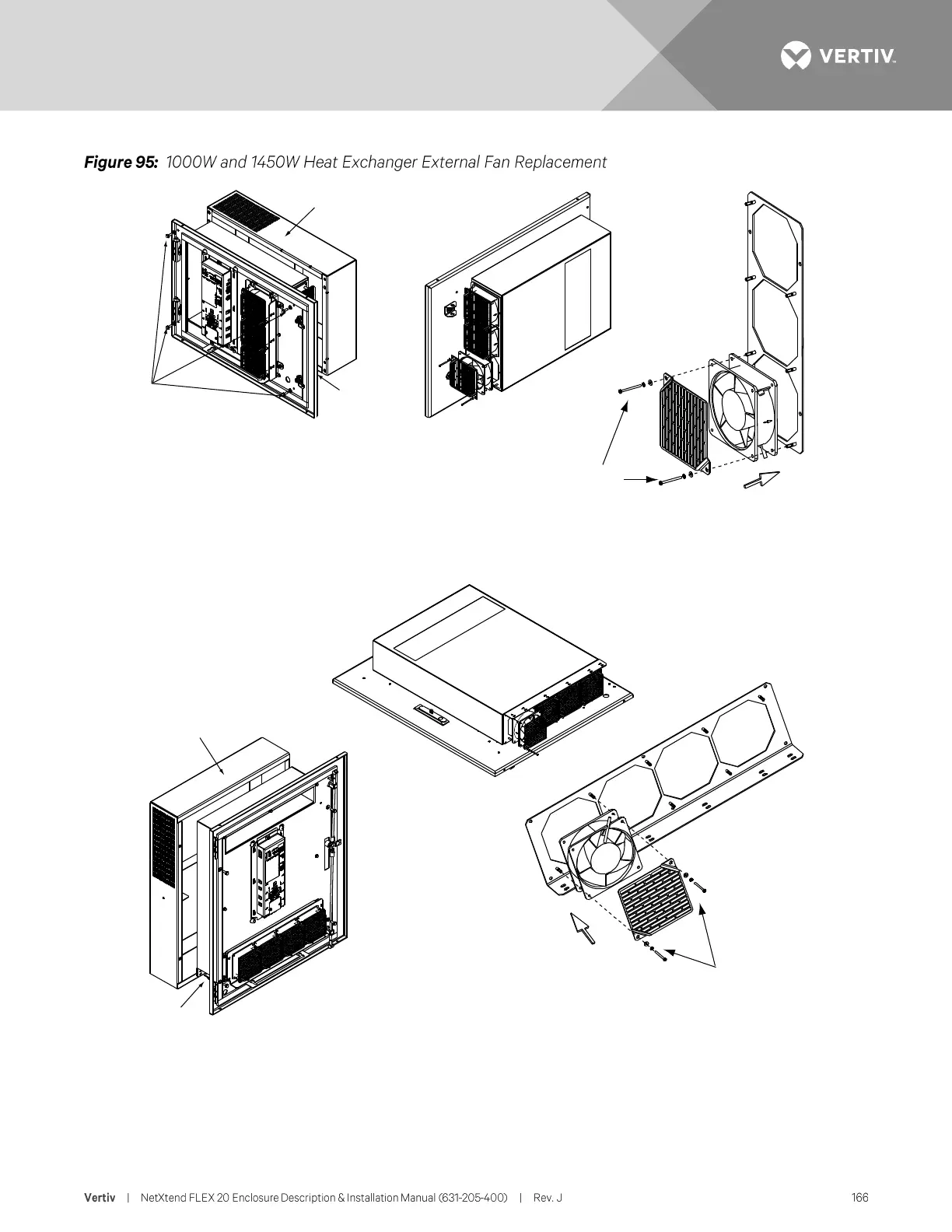

1450W Heat Exchanger External Fan Replacement
1000W Heat Exchanger External Fan Replacement
