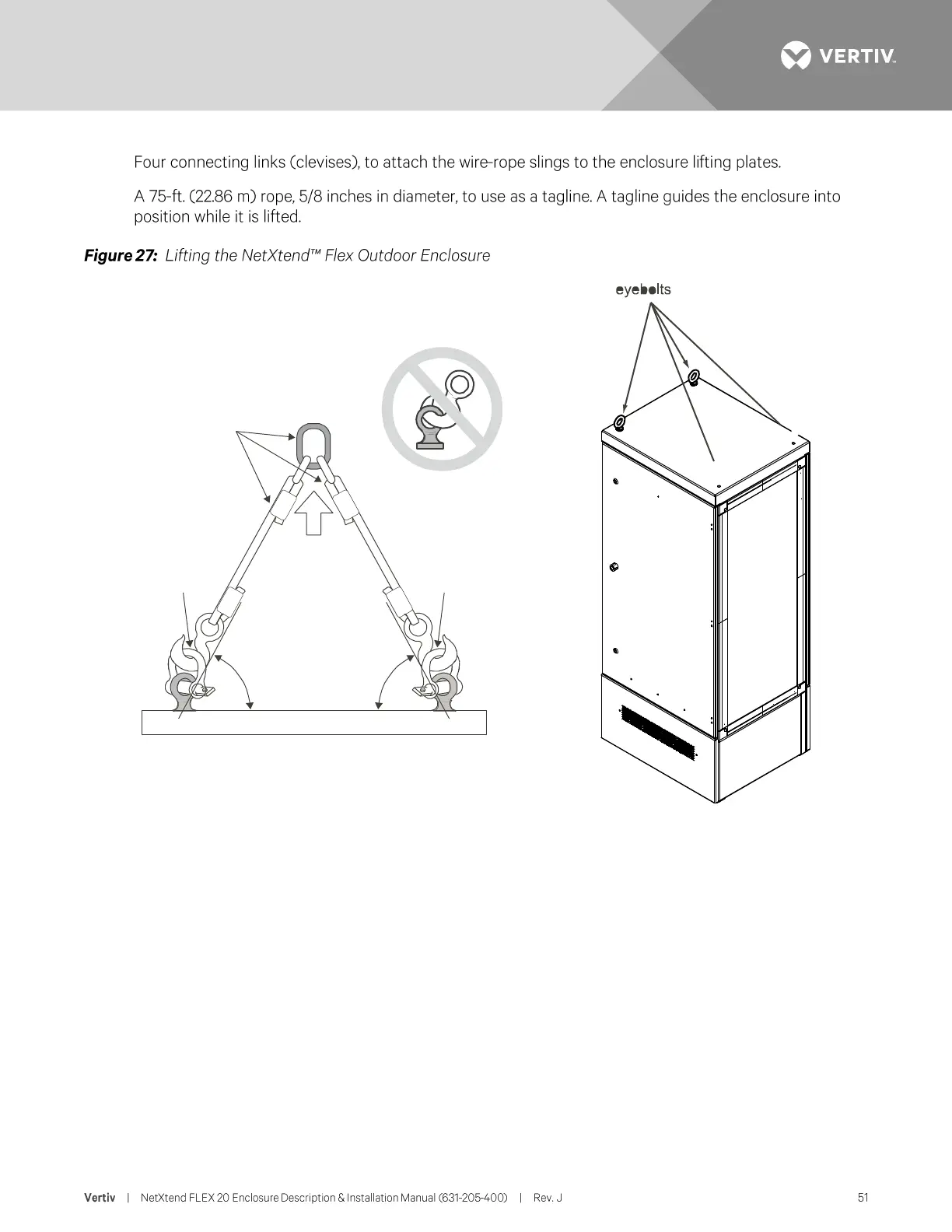

Typical sling
arrangement
Shackle
Direction
of pull
The angle
between the sling
cables and the top
of the cabinet shall
not be less than 60°.
Top of Cabinet
Shackle
Never use the sling without
clevises or shackles as this
may break the eyebolts
