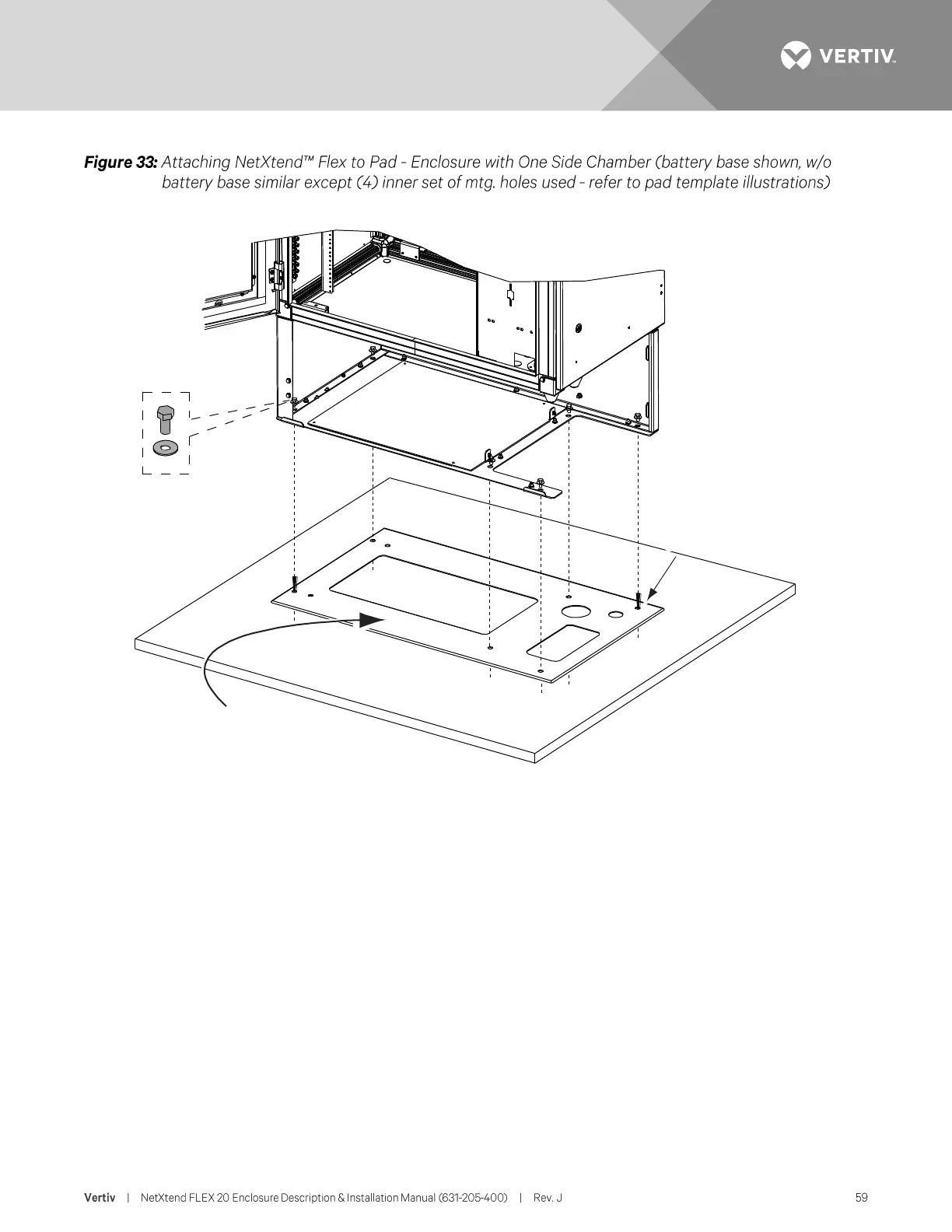

Guide pins

for lowering cabinet onto

exact location for mounting

(2 plcs)

Guide pins

for lowering cabinet onto

exact location for mounting

(2 plcs)

Place Anti-Corrosion Barrier Pad Over

Pad Template Before Attaching Battery Base

components

removed in

illustration

for clarity

Install Hardware

as Shown (6 Plcs)

(1/2-13)
