ASSEMBLE & DISASSEMBLE
RD 36T - RD 40T - RD 46T
4- Remove the head panel hinge cover and dismantle the upper hinge then unscrew
the pin of hinge and screw again changing the direction and then unscrew the three
screws which are fixing the head panel. (FIG-4)

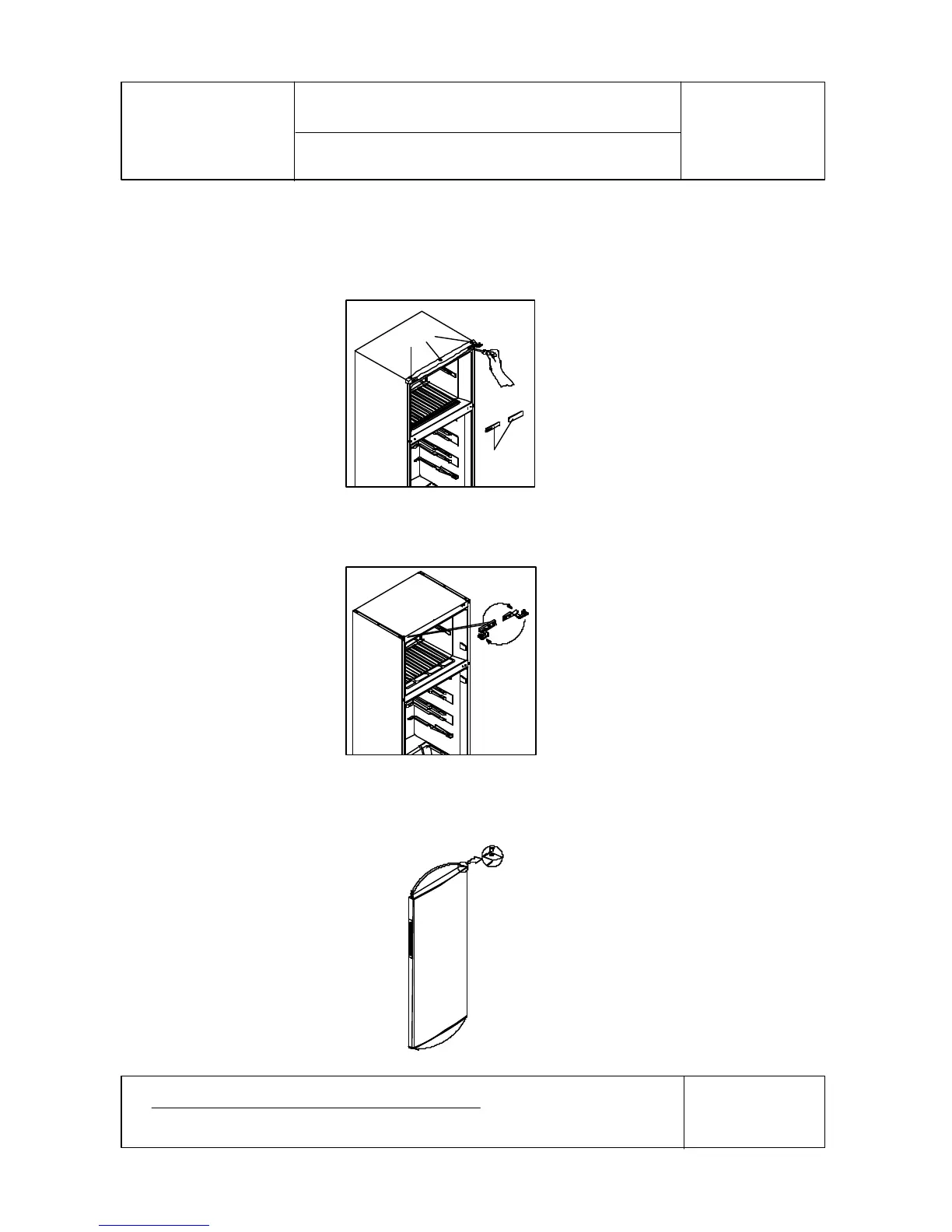

Figure - 4
A- Changing The Doorway Direction to Right Hand
5- Assemble the upper hinge to the left side and assemble the head panel and take out
the caps and reassemble them by changing their places. (FIG-5)
Figure - 5
Head panel
screws
Hinge covers
Turn the top
hinge 180°
clockwise
direction.
6- Take out the bushing and bushing caps and reassemble they by changing their
places. (FIG-6)
Take out bush and stopper and reassemble them changing their places. (FIG-6)
Figure - 6
To Next Page
