ASSEMBLE & DISASSEMBLE
RD 36T - RD 40T - RD 46T
A- Changing The Doorway Direction to Right Hand

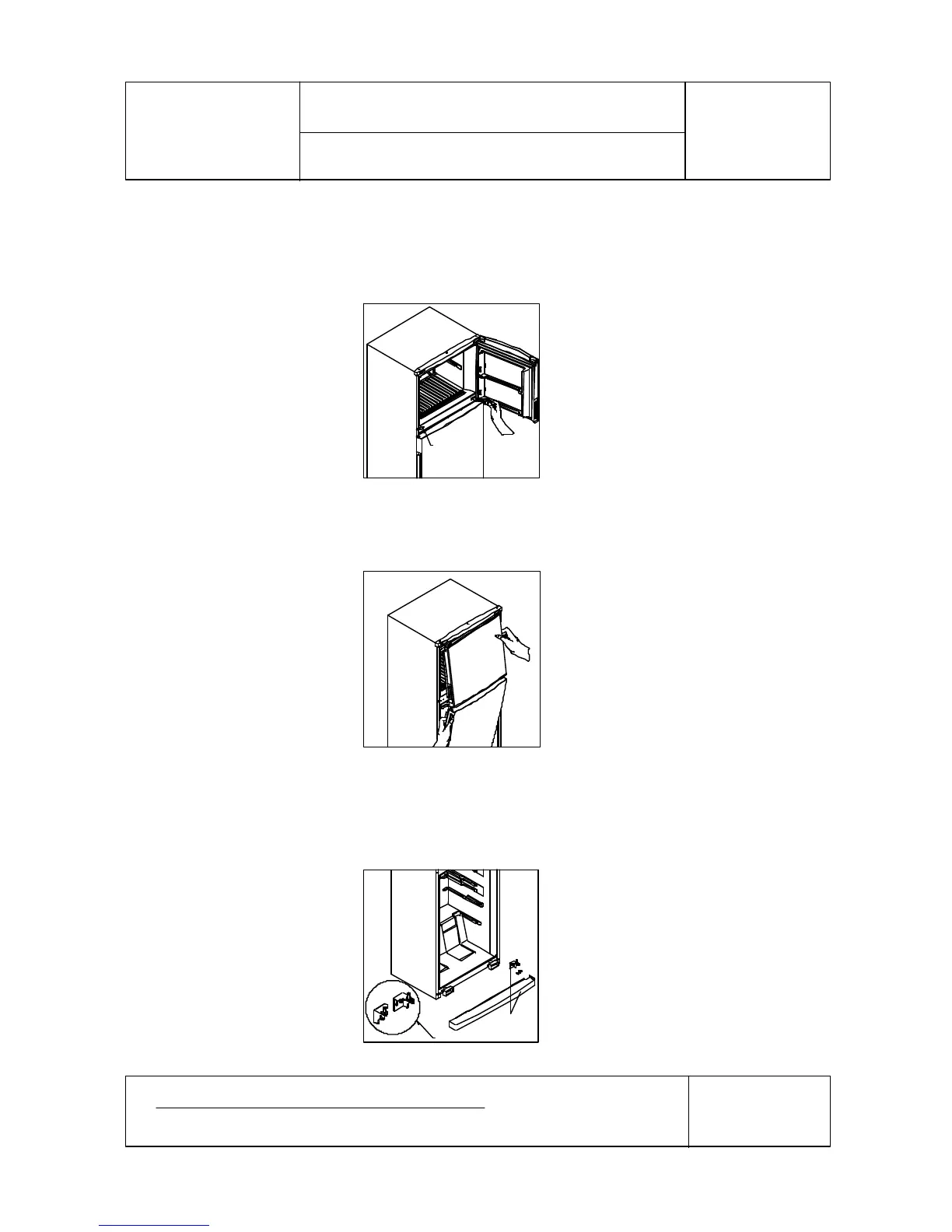

1- Unscrew the two screws which are fixing the middle hinge and one screw where
located near the middle hinge. (FIG-1)
Figure - 1
Figure - 2
3- Take off the kick plate by pulling forward.Unscrew the bottom hinge fixing screws
and remove it.Unscrew the pin of hinge and screw again changing the direction.(See
Detail A)Then assemble the hinge to bottom left side of refrigerator. (FIG-
Figure - 3
DETAIL-A
Bottom hinge
and Kick plate
2- Dismantle the refrigerator and freezer door from cabinet by pulling towards to you
together with the middle hinge. (FIG-2)
Cap holes
