B - Changing The Thermostat :
1) Take off the lamp cover and unscrew the fixing screw.
2) Take off the thermostat box by pulling it and take off the wire connector.
3) Pull out the thermostat bulb from the cabinet.
4) Take off the thermostat knob pulling forward. Loosen the nut which is fixing the thermostat.
5) Replace the thermostat with the new one and assemble the thermostat box following the steps
backwards.
ASSEMBLE & DISASSEMBLE
RD 36T - RD 40T - RD 46T
7- Take out the bushing and bushing caps and reassemble they by changing their
places. (FIG-7)
Take out the bush and reassemble it by changing it places and remove the right stop-
per and reassemble it to the left side by using left stopper. (FIG-7)
A- Changing The Doorway Direction to Right Hand

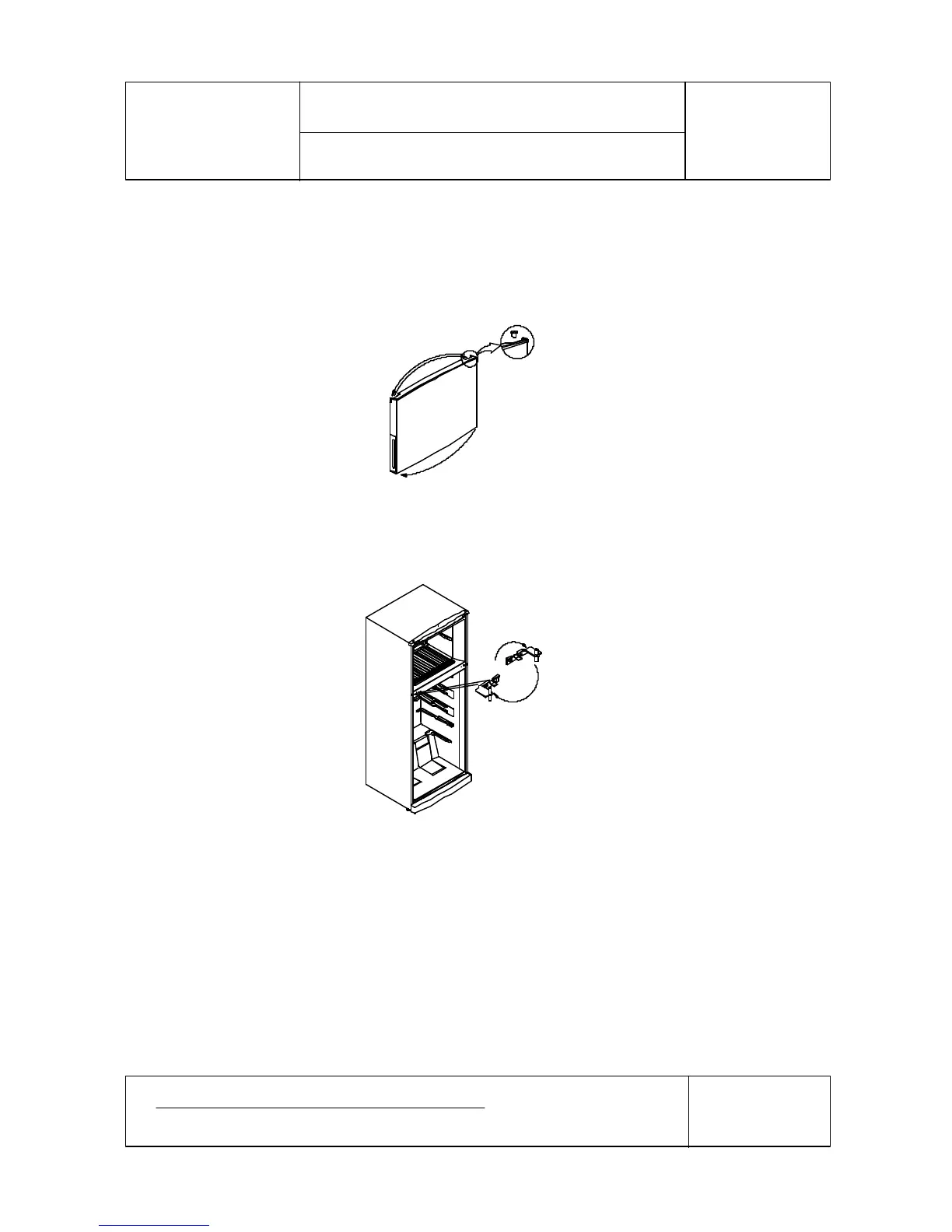

Figure - 7
8- Assemble the freezer door and refrigerant door together with middle hinge and fix
the middle hinge by tighting the screws finally,by using a knife cut left side of the kick
plate and assemble it. (FIG-8)
Figure - 8
Turn the middle hinge 180°
clockwise direction.
