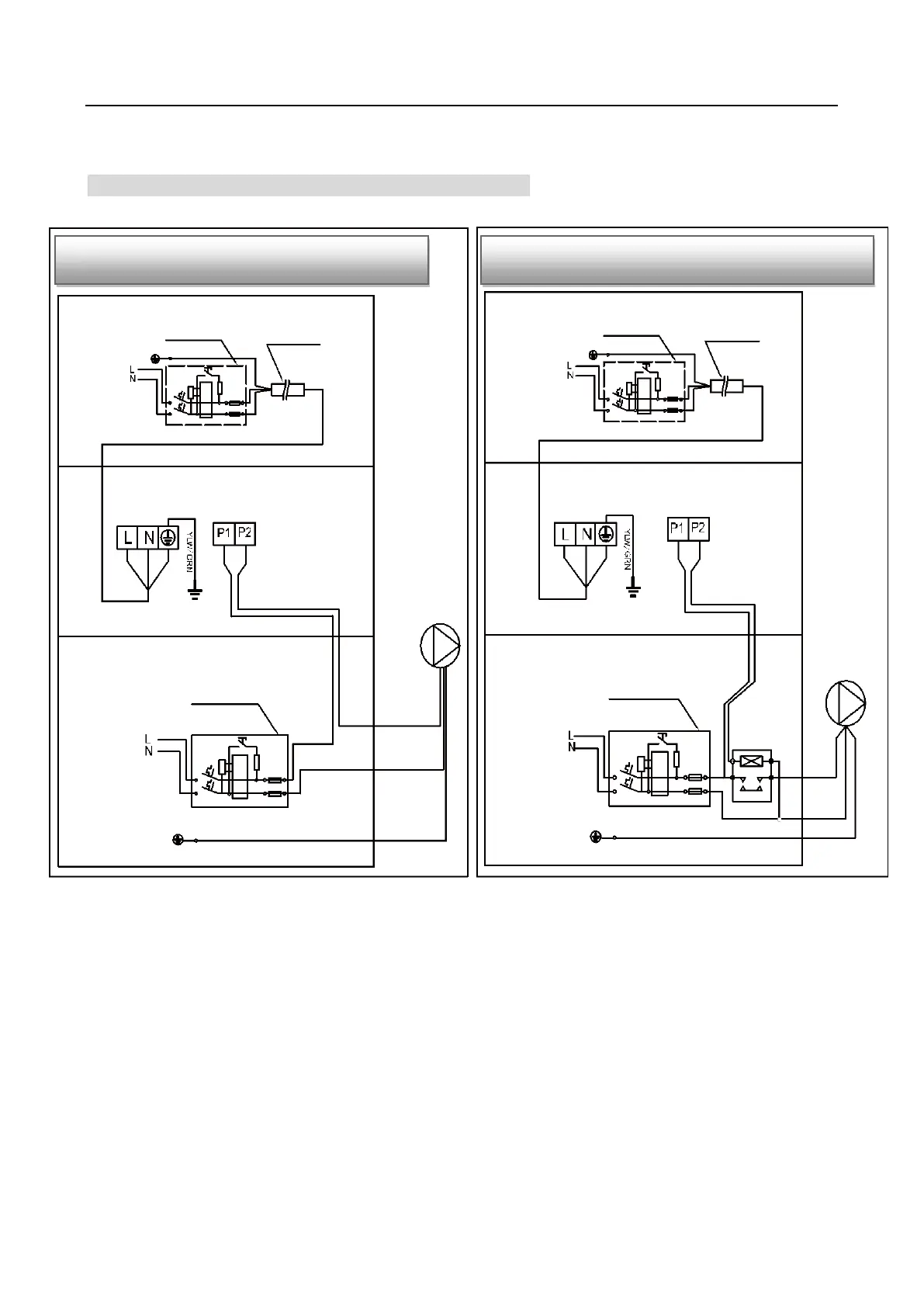

Appendix 1: Heating priority wiring diagram (Optional)
For water pump: Voltage 230V, Capacity ≤500W
For water pump: Voltage 230V, Capacity ＞500W
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer prepare)
Power Cord
Water Pump
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer prepare)
Water Pump
Water Pump
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer prepare)
Water Pump
contactor
Power Supply
230V~/50Hz
Breaker/fuse
(Customer prepare)
Power Cord
Earthing
