vetus® Installation manual BPPPJA - BPPJA - Proportional panel for bow and stern thruster
ENGLISH
4.7 Conguring a panel for operating a bow thrust-
er or a stern thruster
1 x
N.B. The panel must be in the OFF position (if the panel is NOT in the
OFF position, rst press the On / O button once to switch the panel
to the OFF position.

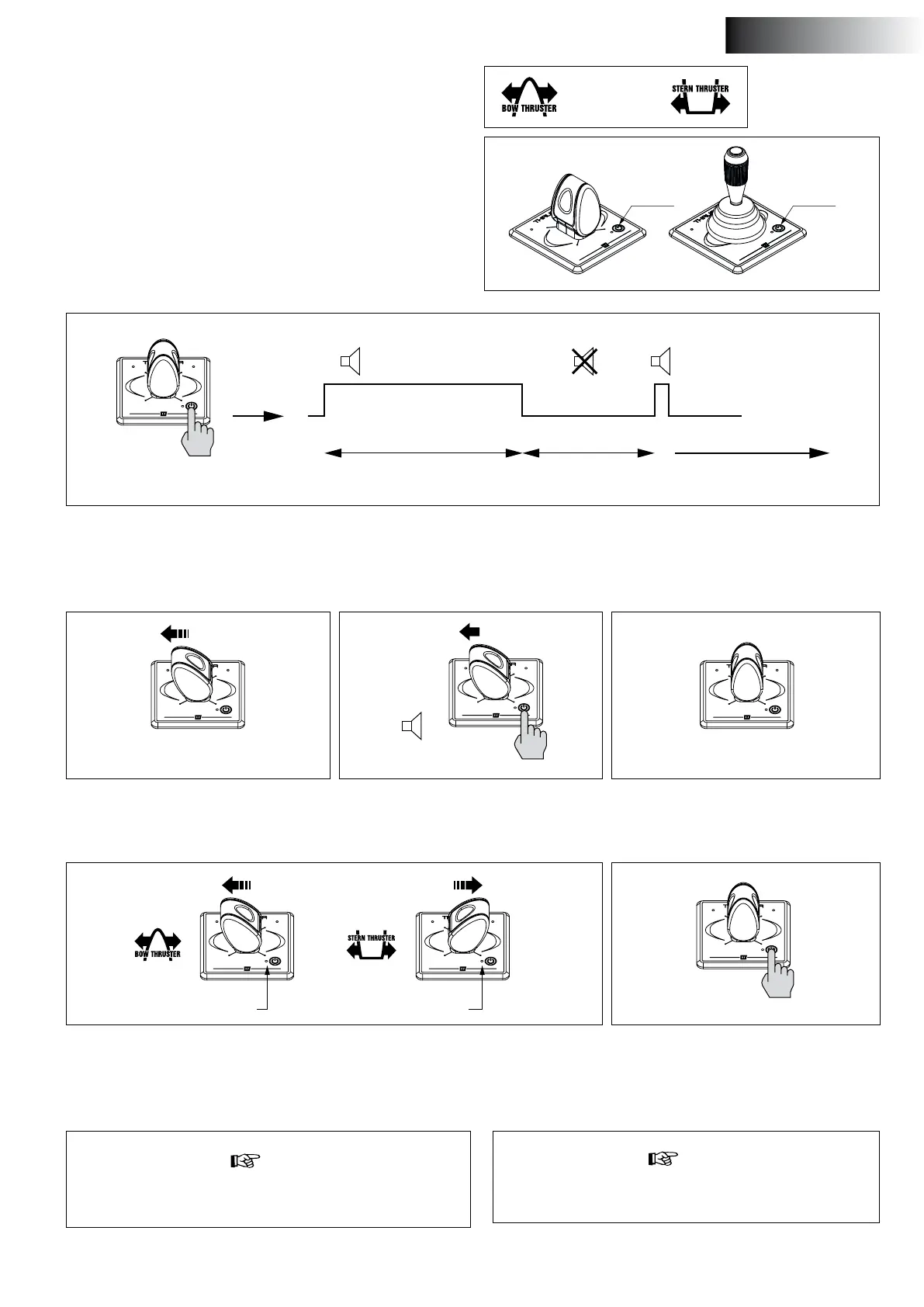

1 Place the panel in conguration mode
• Press and hold the On / O button for 10 seconds.
BLUE RED
1 x
1 x
2 Push the joystick to the left.
didahdi ( . − . )
3 Keep the joystick in this position and press
the On/Off button.
During the rst 6 seconds, the buzzer will continuously signal a didi-
didididi ..... (. . . .). Keep pressing the On / O button. After 10 seconds
the buzzer sounds the signal dididididah (. . . - -). Now the panel is in
conguration mode.
4 Release the joystick after the signal didahdi
( . – . ) is given.
5 Configuring for a bow thruster: Push the joystick to the left once.
Configuring for a stern thruster: Push the joystick to the right once.
6 Press the On/Off button once to confirm
the setting.
10 seconds
seconds
Conguration mode
seconds
6
dididididididid ( . . . . . . ) dididididah ( . . . . − )
4
2 3 4
5 6
1
Carry out the following actions on EACH panel in the order indi-
cated:
note
With a bow and stern thruster panel, together at the same helm
station, the helm station number entered must be the same.
BPPPA BPPJA
ON/OFFON/OFF
note
Settings are retained even if the supply voltage is switched
off!
OR
