vetus® Installation manual BPPPJA - BPPJA - Proportional panel for bow and stern thruster
didahdi ( . − . )
2 x
BLUE and RED,
simultaneously
ashing
RED GREEN
1 x
GREEN RED
1 x
If, during the test run, it appears that the movement of the boat is
contrary to the direction in which the joystick is moved, recongure
as follows.
Carry out the following actions on EACH panel in the order indi-
cated:
N.B. The panel must be in the OFF position (if the panel is NOT in the
OFF position, rst press the On / O button once to switch the panel
to the OFF position.
note
Settings are retained even if the supply voltage is switched off!
1 x
2
4
5
3

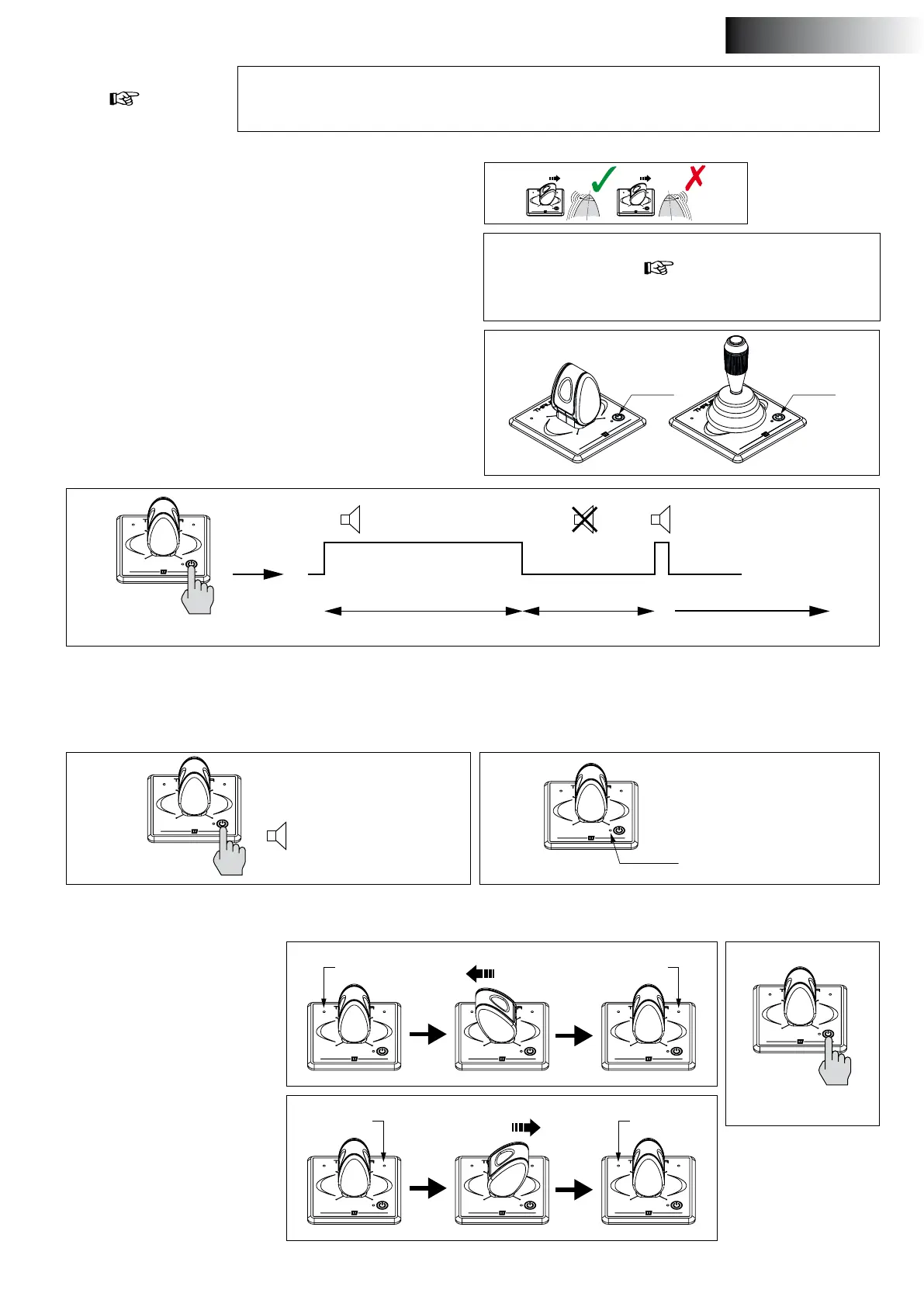

4.9 Changing the thrust direction
1 Place the panel in conguration mode
• Press and hold the On / O button for 10 seconds.
During the rst 6 seconds, the buzzer will continuously signal a did-
ididididi ..... (. . . .). Keep pressing the On / O button. After 10 seconds
the buzzer sounds the signal dididididah (. . . - -). Now the panel is in
conguration mode.
10 seconds
seconds
Conguration mode
seconds
6
dididididididid ( . . . . . . ) dididididah ( . . . . − )
4
1
2 Press the On/Off button twice. 3 The LED next to the On/Off button will now start flashing simulta-
neously blue and red.
6 Press the On/Off but-
ton once to confirm the
setting.
BPPPA BPPJA
ON/OFFON/OFF
4 When the red LED at the upper
left is on: Push the joystick to
the left once. The green LED at
the upper right will now go on
and the thrust force direction is
changed.
5 When the green LED on the up-
per right is on: Push the joystick
to the right once. The red LED
at the upper left will now go on
and the thrust force direction is
changed.
OR
6
Always set up the following two configurations
first: - whether the panel is to operate a bow or a
stern thruster (see section 4.7), and
- which helm station the panel is situated in (see
section 4.8). Thereafter, if necessary, change the
thrust force direction.
