2. Mount jack based on drawing shown above.
3. Slide A-frame jack through hole on top of A-frame coupler.
4. Line up the three slotted holes on jack mounting plate to the three
holes in the coupler.
5. With three bolts and nuts (sold separately) secure jack tightly to the
top of the a-frame coupler. (Regularly check to ensure bolts/nuts are
tightened securely.)
6. After the jack is mounted to trailer, attach the handle assembly to jack
with bolt fastener provided.

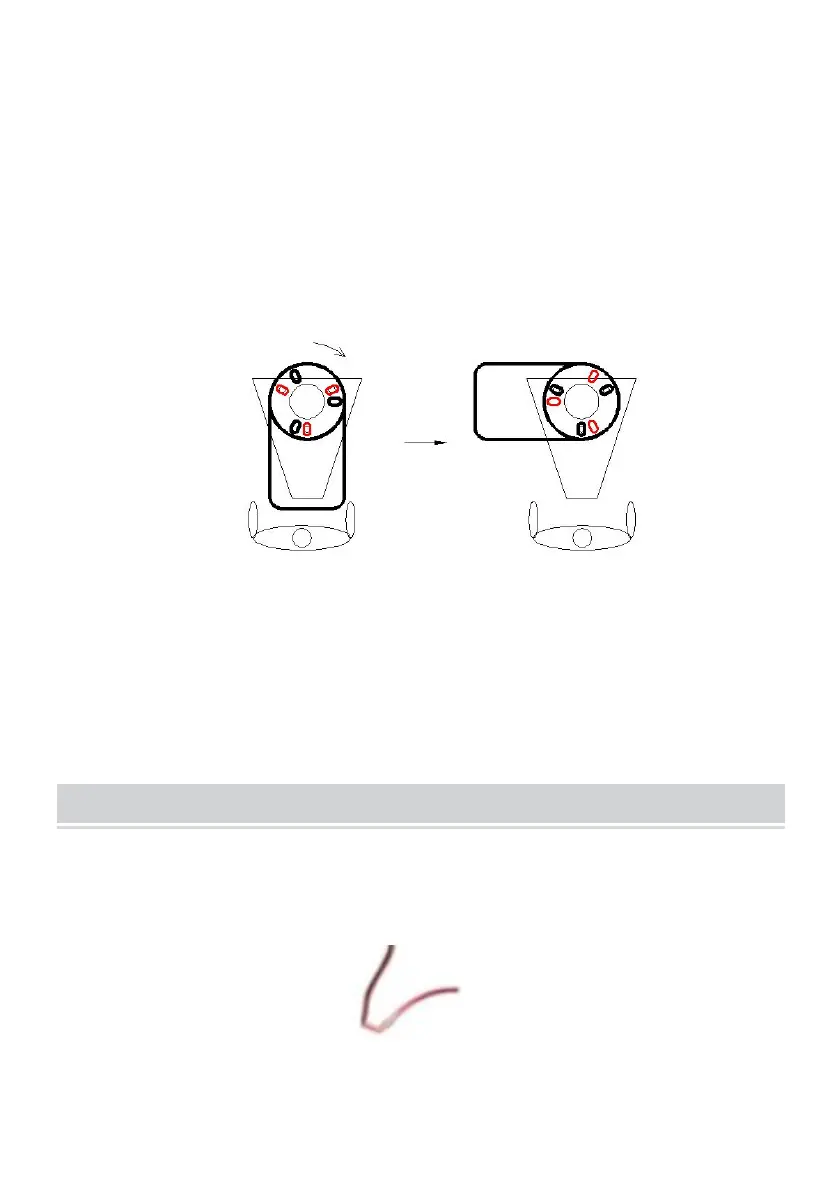

Note: Select mounting holes as required.(Figure above)
1.Connect the red positive terminal to the positive terminal of the DC12V
Battery.
