VEVOR SD-002 - Blade Height and Feed Plate Adjustment

- 7 -

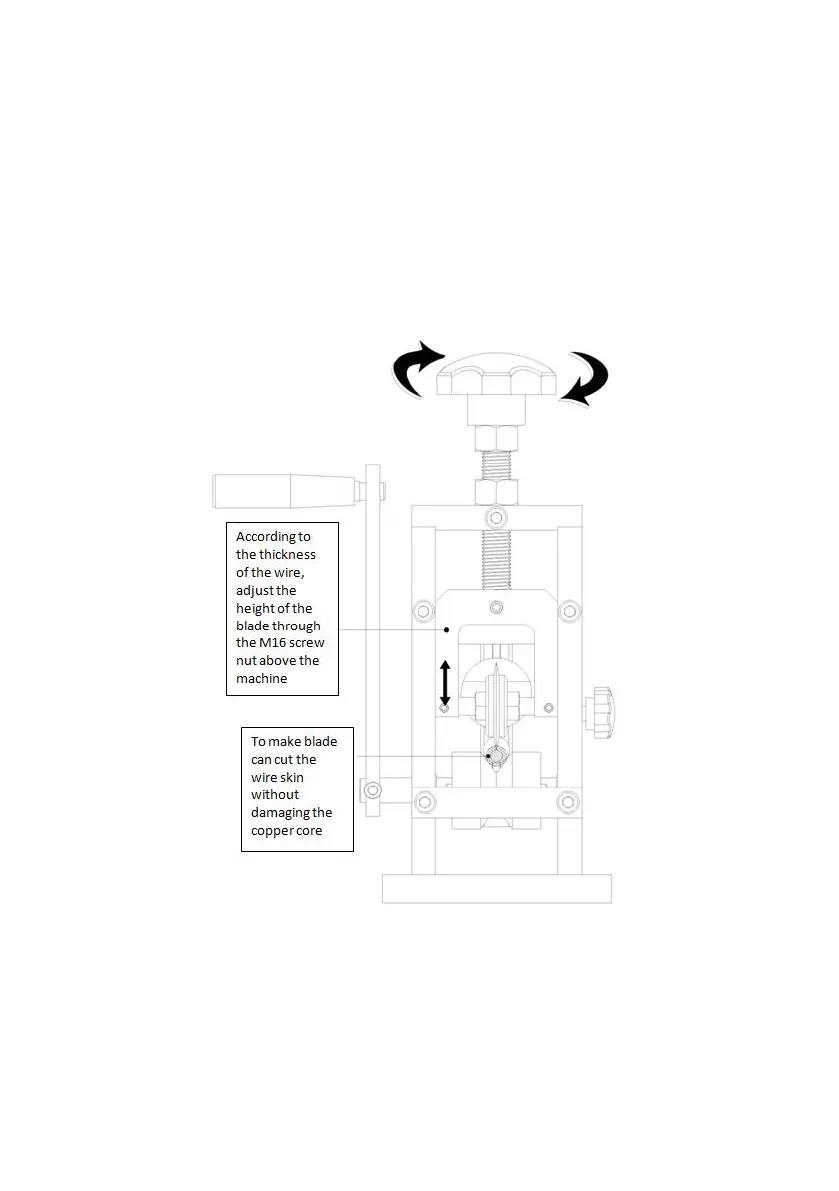

3.According to the thickness of the wire, adjust the height of the blade
through the M16 screw nut above the machine so that the blade can cut
the wire skin without damaging the copper core (as shown in the following
figure).
