transmitter.
15
. Transmission level display that shows the present transmission level of the
transmitter.
" " denotes that the present transmission level of the transmitter is level 1.
" " denotes that the present transmission level of the transmitter is level 2.
" " denotes that the present transmission level of the transmitter is level 3.
The instrument consists of a transmitter and a receiver. The transmitter
generates AC signal of a modulated current. The current of the ac signal flows
through the connected conductor generating a electromagnetic field around this
conductor. This electromagnetic field induces a voltage in the receiver coils. For
the automatic mode and manual mode, the receiver works with three coils and
does not depend on the direction of receiver. A selective and position-dependant
search is performed in the selective mode or PINPOINT mode with only one active
coil. The induced voltage is amplified, decoded, and converted by the receiver,
and finally indicated on the receiver screen. For any application, ensure that there
is a closed loop for the flowing signal in the conductor when connecting the

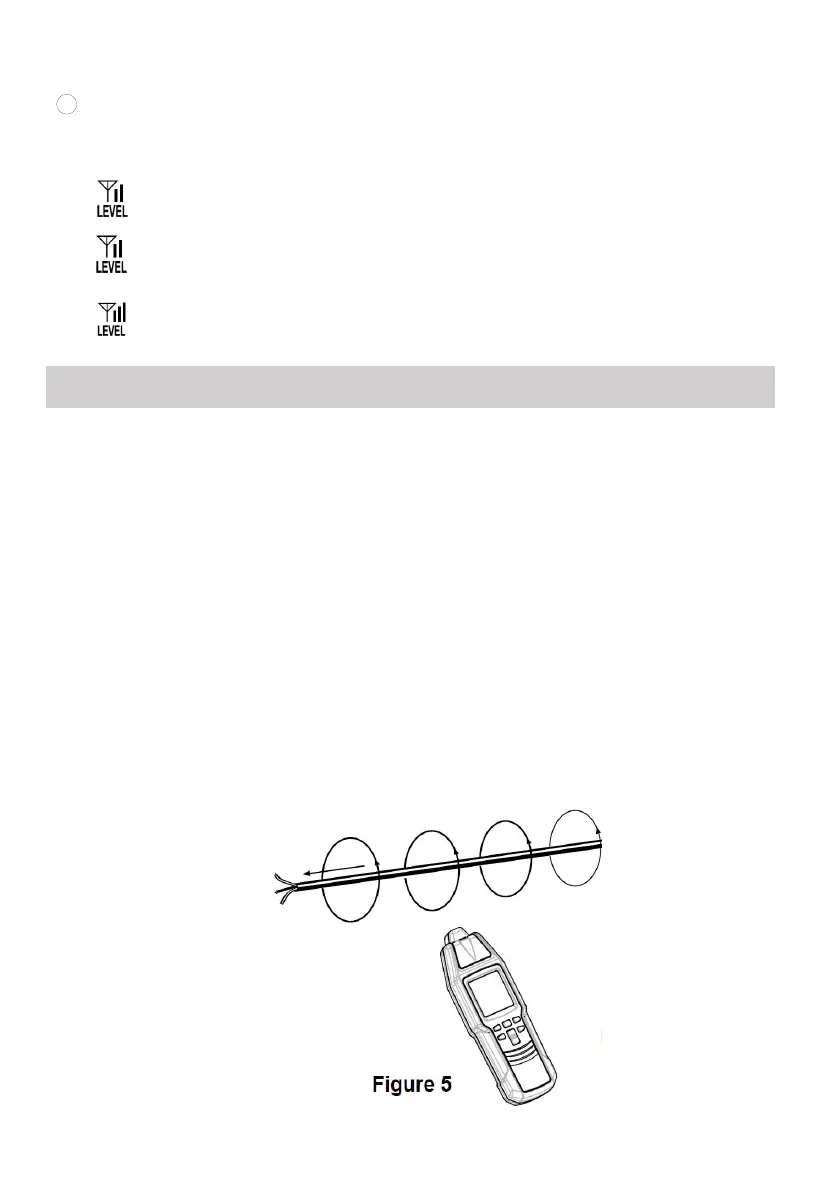

transmitter.(see Figure 5)
