The transition resistance of a line interruption must be > 100 kOHM. The
verification of resistance can be done by using a multimeter.
Systematically circle the line interruption by changing the sensitivity of the
receiver.
Note:
Increasing the transmission level from level 1 to level 3 with the " "
button increases the detecting distance of the receiver by a factor of about 4.
Setup of the receiver: manual mode, minimal sensitivity. If necessary, adjust
the sensitivity of the receiver according to the actual condition during detection.
Max. tracing depth: about 2 meters

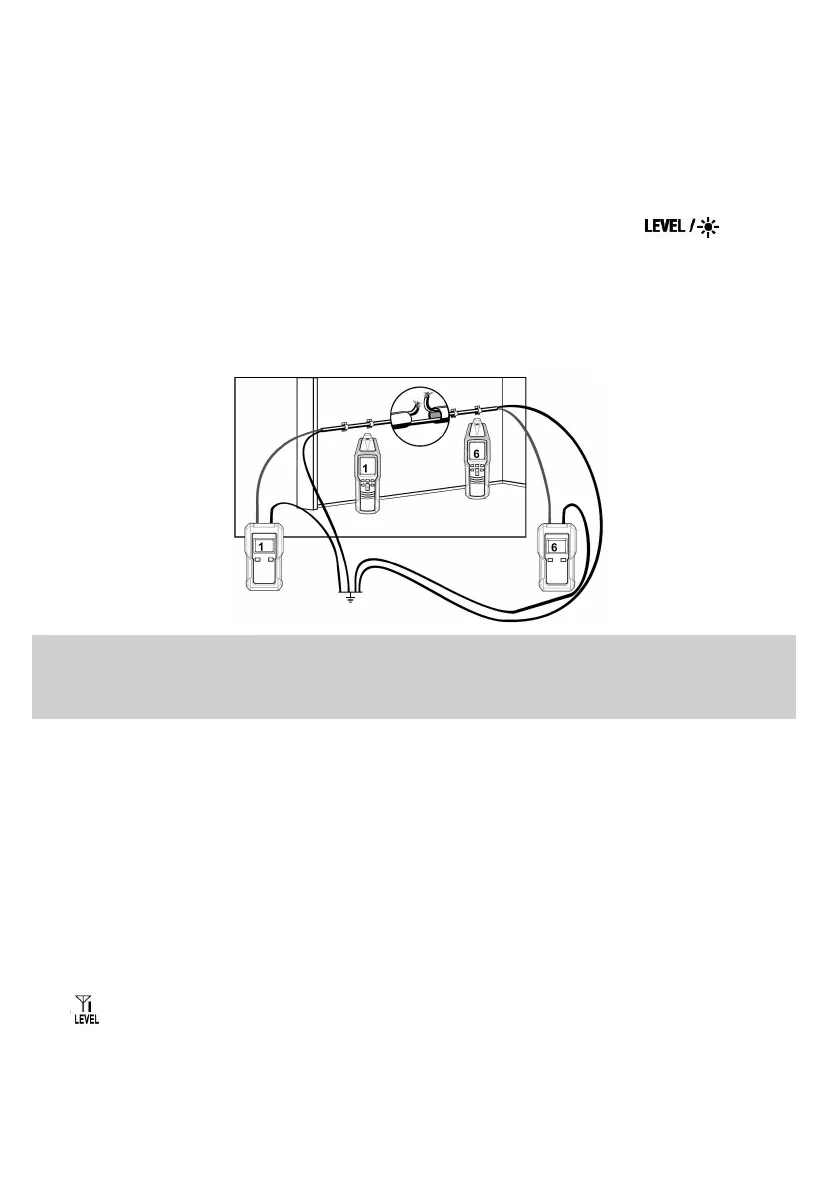

Figure 11
Warning: Adhere to local and national safety codes. To avoid electric shock,
do not touch any naked conductor with hand or skin.
Refer to Figure 12, connect the red and black terminals of the transmitter
to the desired energized AC wall outlet, make sure that the red terminal of
the transmitter is connected to the Live terminal of the outlet and the black
terminal of the transmitter is connected to the Neutral terminal of the outlet.
The transmitter displays the value of the voltage of the outlet. Set the
transmission level of the transmitter to level 1, the transmitter will display "
" as an indication.
Go to the circuit breaker panel box, place the flat top of the probe of
the receiver directly onto circuit breaker or fuse ( refer to Figure 12 ).
Hold the receiver so that it is perpendicular to the breakers or fuses as
LOCATING CIRCUIT BREAKER OR FUSE THAT SUPPLIES AN OUTLET
( DUAL-POLE APPLICATION )
