Vex Robotics Clawbot Assembly Guide

4

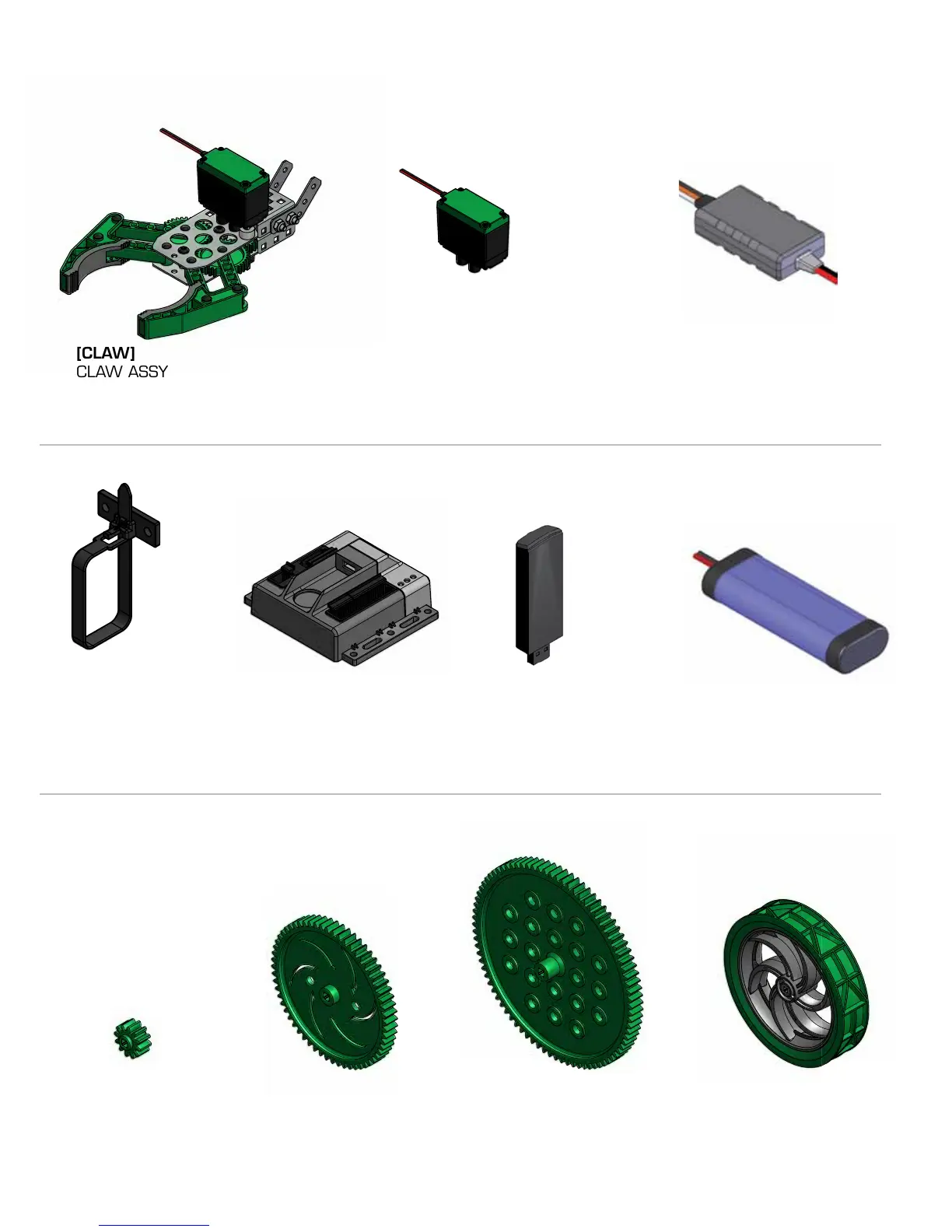

[CLAW]
CLAW ASSY
(shown not to scale)
[M393]
2-Wire Motor 393
Module
(shown not to scale)
[G12]
GEAR, 12 TOOTH
(shown not to scale)
[MC29]
MOTOR
CONTROLLER 29
(shown not to scale)
[BST]
VEX Battery Strap
(shown not to scale)
[G60]
GEAR, 60 TOOTH
(shown not to scale)
[G84]
GEAR, 84 TOOTH
(shown not to scale)
[W4]
VEX WHEEL (4” DIAMETER)
(shown not to scale)
[BATT]
7.2V RECHARGEABLE
BATTERY
(shown not to scale)
[VNET]
VEXnet Key
(shown not to scale)
[CTX]
CORTEX
(shown not to scale)
REFERENCE:

Vex Robotics Clawbot Specifications

General

Category	Robotics
Motor Count	4
Claw	Yes
Controller	VEXnet Joystick
Programmable	Yes
Name	Clawbot
Motor Type	VEX 393 Motor
Power Source	7.2V NiMH Battery
Programming Language	VEXcode
Material	Metal and Plastic
Compatibility	VEX Robotics Design System
