17
1. Right side part of the jacket
2. Screw M5 x 12
3. Washer 5,3
4. Left side part of the jacket
5. Screw M5 x 12
6. Washer 5,3
7. Upper part of the jacket
8. Thermomanomater
9. Rear part of the jacket
10. Screw ST 4,2 x 9,5
11. Bushing HEYCO
12. Slant bushing
13. Blind flange 15,9 (3 ks)
14. Blind flange 19 (1 ks)

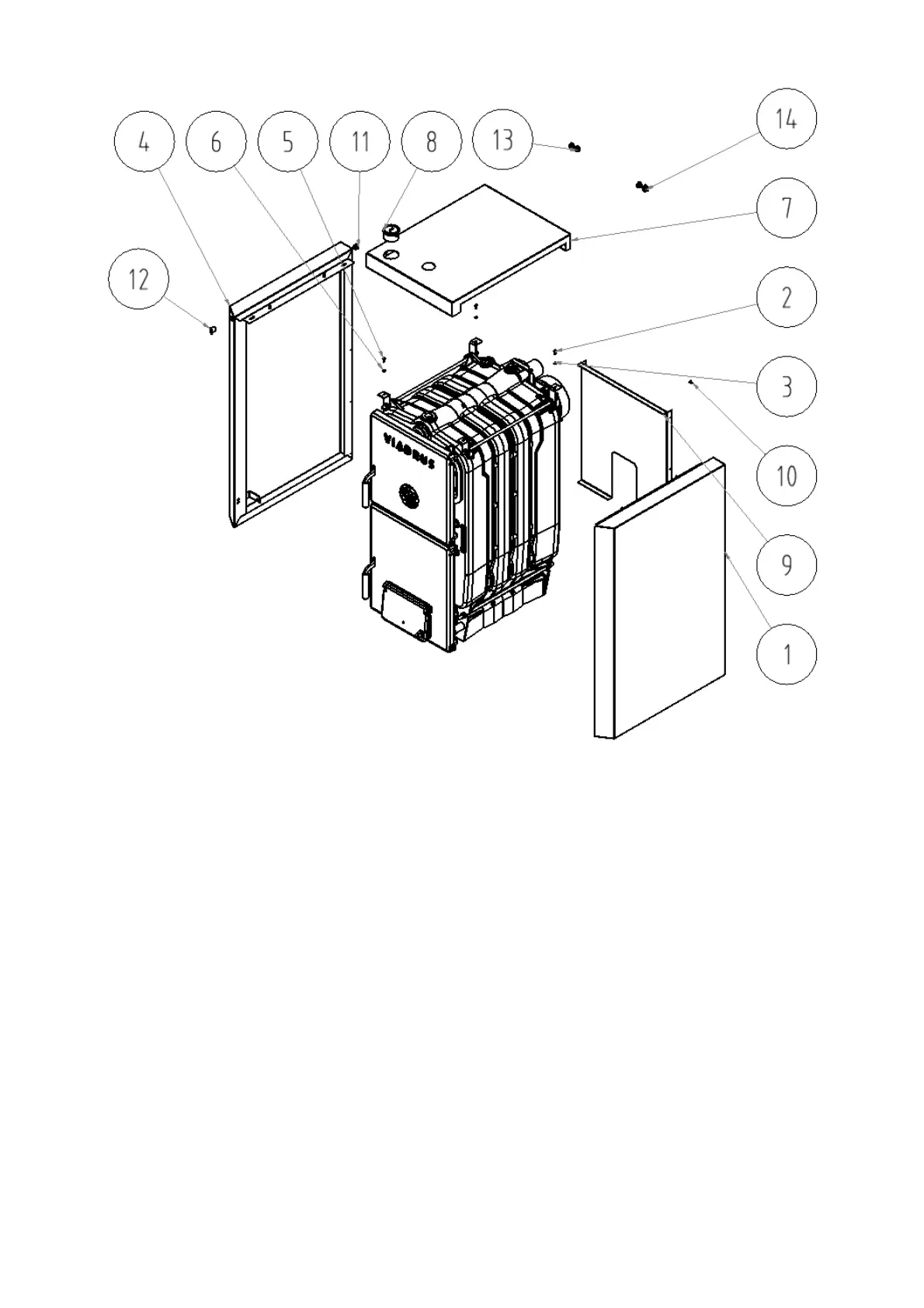

Fig. no. 15 Jacket assembly of the boiler without the box
