STEP 1
STEP 2
STEP 3
4
*1
111
63
71
63
11
www.viavito.com
Step Four.

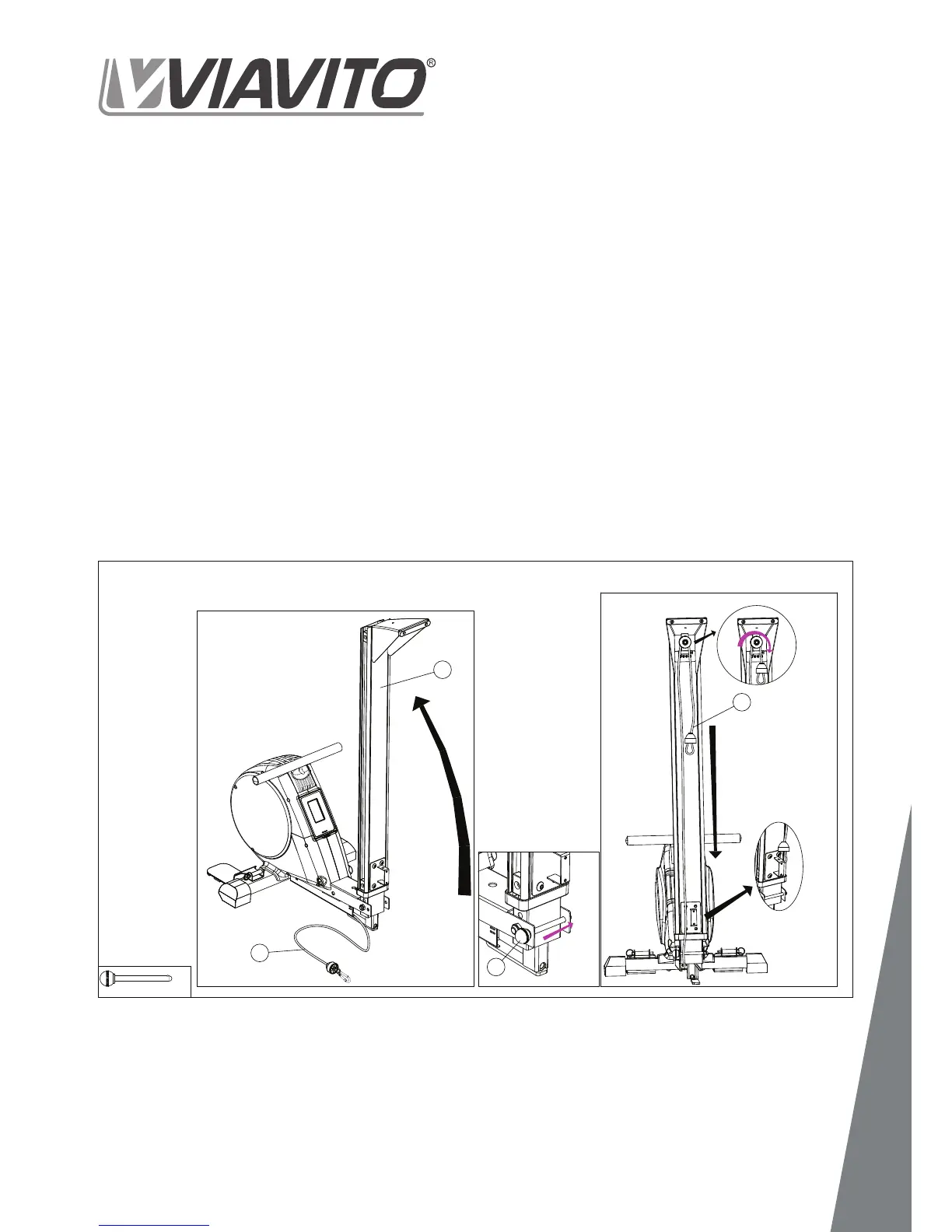

01 Lift the aluminium rail (71) into the
vertical position.
02 Insert the locking pin into the base
(111) to secure the rail. Carefully cut
the cable tie to release the bungee
cord, making sure not to cut the
bungee cord. Do check that the cord is
not frayed or damaged.
03 Place the handlebar in its holder above
the console. Pull the slack of the
bungee through the bottom of the rail.
Loop the bungee cord (63) around the
roller located in the rear foot (top of
diagram). Then pull the bungee cord
down and hook the carabiner through
the hole on the aluminium rail as shown
(bottom of diagram), ensuring the
bungee cord (63) runs parallel to the
aluminium rail.
Caution: At this point the bungee cord
will be under tension. Make sure the
bungee cord is properly secured using
the carabiner before you let go of the
cord. Failure to do so may result in injury.
