5
*1
*4
*1
*1
*1
71
86
85
111
86
86
86
109
110
111
12
www.viavito.com

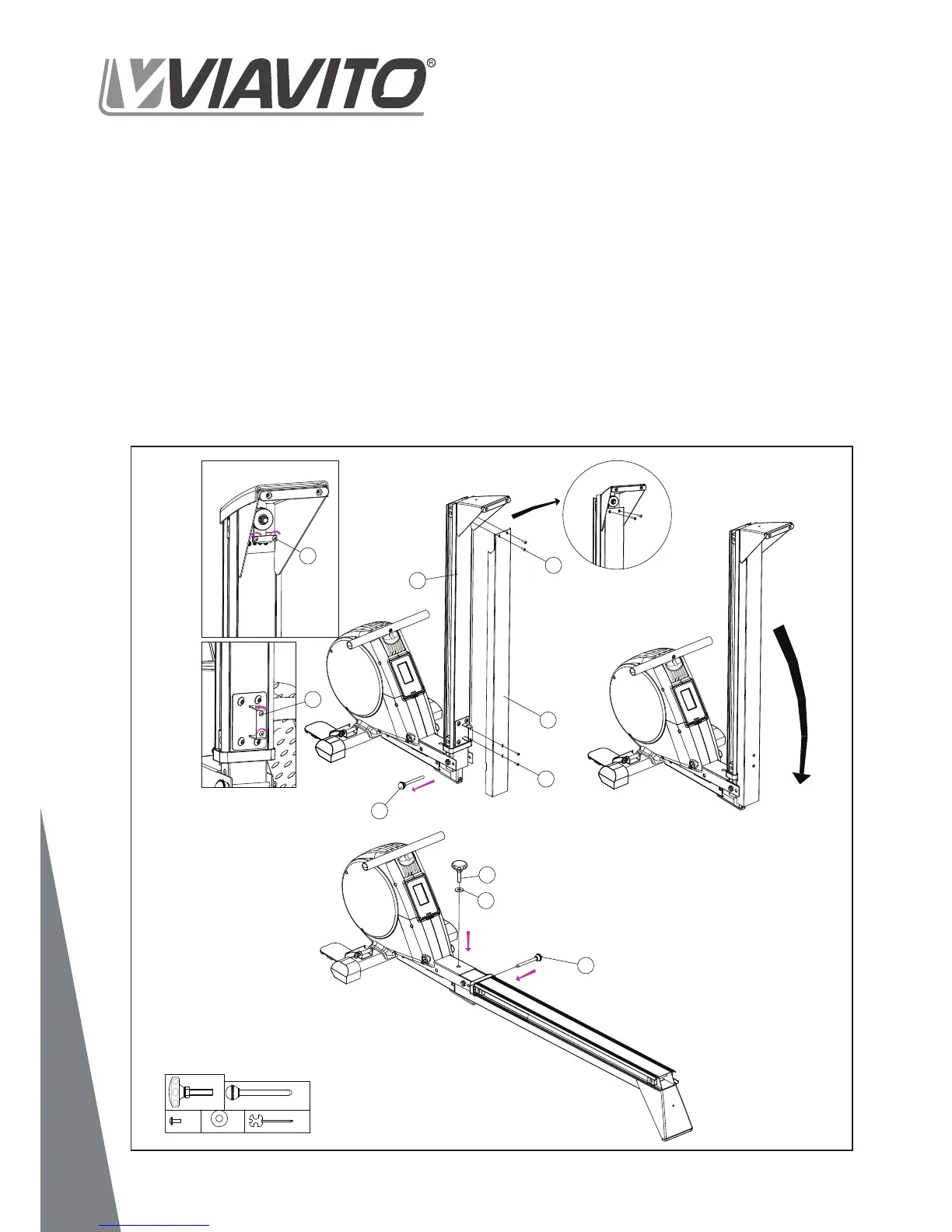

Step Five.
01 Remove the screws (86) on the
aluminium rail at the rear foot and
at the bottom. Keep the screws
somewhere safe.
02 Take out the locking pin (111) from the
main frame. Hold the rail securely in
the upright position.
03 Place the rail cover (85) onto the
aluminium rail.
04 Attach the rail cover (85) to the rail
with the 4 screws (86).
05 Fold down the aluminium rail, and in-
sert the locking pin (111).
06 Insert the locking knob (109) with the
washer (110) into the hole on the
main frame as shown.
To Next Page
