The VIBRADORM VFF/CDL-BF-11 is a radio remote control designed for adjustable beds equipped with a VIBRADORM dual drive V-MAT-Basic, which includes memory function and an LED night light module. This device utilizes Bluetooth technology for communication.

Function Description

The remote control allows users to adjust various bed positions and control integrated lighting features. It facilitates the movement of both back and leg drives independently or simultaneously. Memory positions can be set and recalled, offering personalized comfort settings. Additionally, it incorporates a night light function and a torch function for convenience. The device communicates with the dual drive V-MAT-Basic via a teach-in process, ensuring proper synchronization. It can also be operated via a smartphone or tablet PC through a dedicated app, provided the mobile device supports Bluetooth 4.0 (Bluetooth Smart, BLE, Bluetooth Low Energy).

Important Technical Specifications

Operating Voltage: 3VDC via batteries.
Power Consumption:
- Idle: typically 1µA
- Operational: 2mA
Transmission/Receiving Frequency: 2.4GHz ISM band (Industrial, Scientific, and Medical band), specifically between 2.402 GHz and 2.480 GHz.
Transmission Range: 10 - 50m.
Housing Material: ABS.
Protection Grade: IP20.
Battery Type: 2 pcs. 1.5V AAA (LR03).
Weight (incl. batteries and packaging): Approximately 80g.
Standard Compliance: Designed and manufactured according to DIN EN 60335-1 (Safety of Household and similar Electrical Appliances) and carries the CE mark.

Usage Features

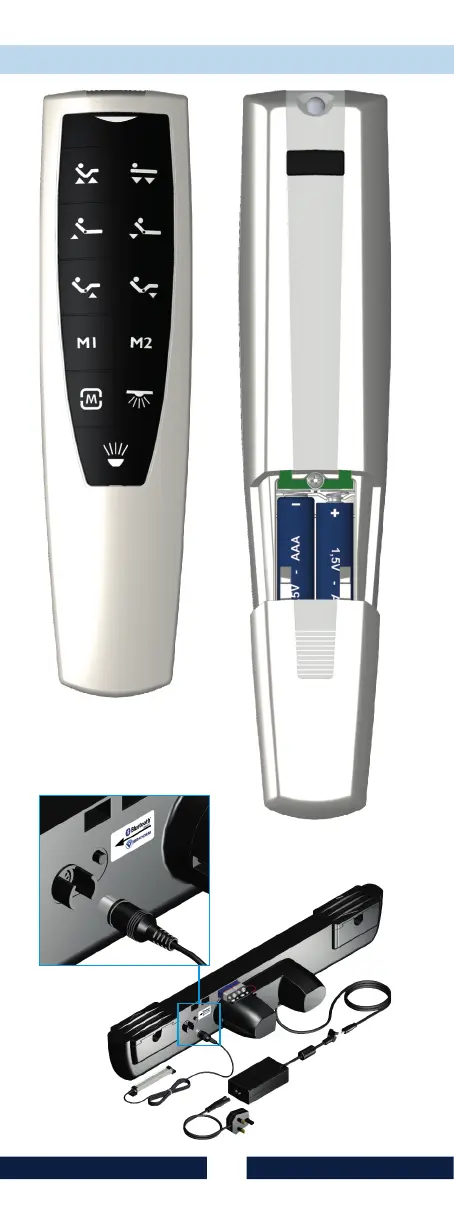

The remote control features a clear button layout for intuitive operation:

Status LED (S): Indicates when a button is pressed (lights up) or kept pressed (flashes).
Bed Adjustment Buttons (1-6):
- 1: All drives up
- 2: All drives down
- 3: Back drive up
- 4: Back drive down
- 5: Leg drive up
- 6: Leg drive down
- These buttons control the respective drives as long as they are pressed.
Memory Position Buttons (7, 8):
- 7: Memory position 1
- 8: Memory position 2
- Save Memory Positions (9): Pressing this button 3 times, followed by either 7 or 8, saves the current bed position to the corresponding memory button. Stored positions can be recalled by pressing and holding 7 or 8.
LED Night Light Bar (10):
- Briefly press to switch the LED module on/off.
- Press and hold to dim the LED module (lighter/darker). Releasing and pressing again reverses the dimming direction.
Torch LED (11, T):
- Pressing 11 for approximately 3 seconds activates the torch LED (T). It switches off automatically after about 20 seconds.
- Briefly pressing 11 again switches off the torch LED.
- Keeping 11 pressed keeps the LED switched on; it turns off about 20 seconds after release.
Background Illumination: The keypad illuminates when the remote control is moved or any button is pressed, turning off after approximately 5 seconds of inactivity.
Teach-in Process (L): A teach-in button (L) on the dual drive is used to establish communication between the remote control and the V-MAT-Basic drive. This process is typically performed by the manufacturer.
Factory Reset: The remote control can be reset by simultaneously pressing and holding specific bed adjustment buttons (1, 3, 5 or 2, 4, 6) until the status LED flashes and then goes off. The dual drive can also be reset by pressing button L for approximately 10 seconds and then disconnecting and reconnecting the mains plug.

Maintenance Features

Battery Replacement: The remote control requires 2x 1.5V AAA (LR03) batteries, inserted into the battery compartment (B). Batteries should be replaced as soon as they are weak to prevent leakage.
Cleaning: The housing can be cleaned with a slightly damp cloth. Aggressive detergents or scouring agents should not be used.
General Maintenance: Apart from battery replacement, the radio remote control is maintenance-free.

Safety Instructions

Intended Use: For operating VIBRADORM dual drives within the home. Any other use is improper and voids warranty.
Improper Use Warnings: Not to be used with medical products, in flammable/explosive environments, damp environments, outdoors, in mechanical washing systems, or for lifting/lowering loads in industrial/craftsman areas.
Operating Environment: Keep away from direct contact with damp or water. Only suitable for dry indoor rooms. Allow time to adjust to ambient temperature when moving from cold to warm environments to prevent condensation damage. Avoid strong electromagnetic fields, direct sunlight, high temperatures, cold, damp, or wet conditions.
Device Integrity: Do not use if housing is damaged. Do not open the housing (except for battery change) or make unauthorized changes, as this voids the warranty.
Operation: Ensure proper commissioning. Do not allow children or vulnerable persons to use unsupervised. Radio signals can pass through walls/ceilings, but the remote control should only be used in the room where the adjustable bed is located.
Batteries: Keep out of reach of children. Do not throw into fire, short circuit, take apart, or charge (danger of explosion). Batteries contain harmful acids; replace weak batteries promptly. Do not mix old and new or different types of batteries.
Leaking Batteries: Wear chemically resistant protective gloves and goggles. Avoid direct skin contact. Wash hands thoroughly if contact occurs. Remove electrolyte residues with a damp cloth and wash contaminated clothes.
Night Light/Torch: Do not look directly into the night light LEDs or torch LED.

Manufacturer's Address

VIBRADORM GmbH Relystraße 38 64720 Michelstadt GERMANY Tel.: ++49 (0)6061 / 94 44 0 Fax: ++49 (0)6061 / 94 44 10 http://www.vibradorm.de E-Mail: info@vibradorm.de
