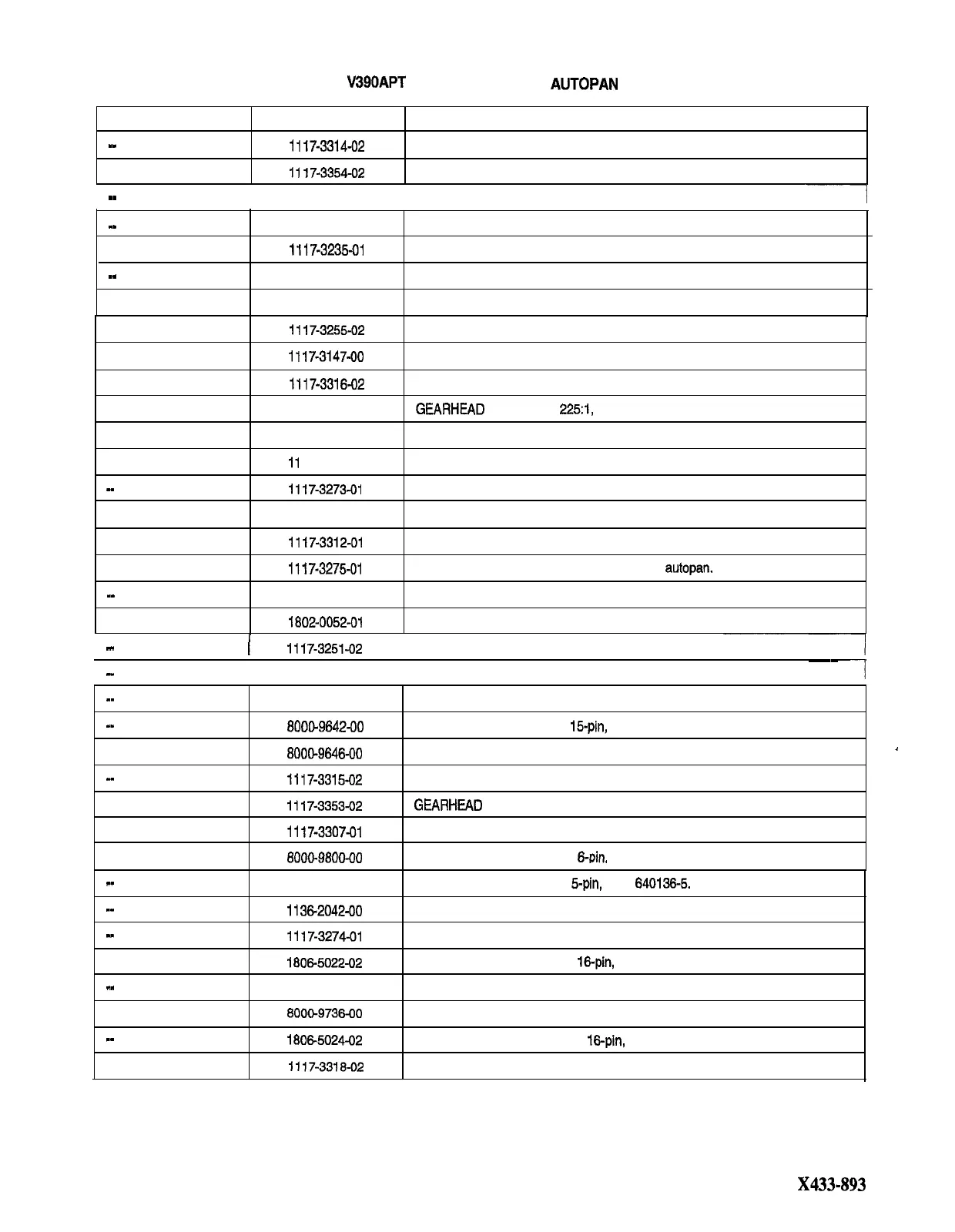

REPLACEMENT PARTS LIST
V390APT PAN-AND-TILT WITH AUTOPAN
Reference Designation
Part
Number Description
_-
1117-3314-02
PAN MOTOR AND CABLE ASSEMBLY.
__
II
17-3354-02
TILT MOTOR AND GEAR ASSEMBLY, size 8.
I
--
l
1117-3238-05
1 HOUSING ASSEMBLY.
~~
-7
--
--
_-
1117-3570-01
SUPPORT
ASSEMBLY, drive end.
1117-3235-01
SUPPORT
ASSEMBLY, spring end.
1117-3243-03
PEDESTAL ASSEMBLY, with reverse switch.
1117-3300-02
PEDESTAL PLATE ASSEMBLY.
--
--
--
-_
--
--
_-
--
1117-3255-02
MOTOR AND BRAKE ASSEMBLY, size 8.
1117-3147-00 PCB ASSEMBLY.
1117-3316-02
CABLE ASSEMBLY, pan.
1117-3267-02
GEARHEAD ASSEMBLY,
225:1,
pan.
1117-3352-02
END-CAP ASSEMBLY, drive side.
II
17-3320-02
TILT MOTOR AND PLATE ASSEMBLY.
1117-3273-01
HOUSING AND BEARING ASSEMBLY.
1802-0053-01 CAPACITOR, included with motor
1117-3312-01
CONNECTOR AND COIL CORD ASSEMBLY.
1117-3275-01
SWITCH AND CABLE ASSEMBLY, 24 V with
autopan.
1117-3286-01 CABLE ASSEMBLY, pedestal.
1802-0052-01 CAPACITOR, included with motor, 4 uf.
I
-
I
1117-3251-02
MOTOR AND CLUTCH ASSEMBLY, pan.
~~
--1
I
-
I
1117-3250-02
BRAKE ASSEMBLY, size 8.
~~
1
__
-_
--
_-
__
--
1117-3251-04
MOTOR AND CLUTCH ASSEMBLY, tilt.
800&9842-00
CONNECTOR PCB, female,
15-pin,
mounting ears.
8000-9846-00
CONNECTOR, cable, male, Q-pin, AMP i-350235-9 (when exhausted i-64051 1).
1117-3315-02
TILT MOTOR AND CABLE ASSEMBLY.
1117-3353-02
GEARHEAD ASSEMBLY.
1117-3307-01
COIL CORD AND LUGS ASSEMBLY.
80069800-00
CONNECTOR CABLE, male.
6-oin.
AMP l-640510-0.
--
8000-9644-00
CONNECTOR PCB, female,
ti-pin,
AMP
840136-5.
_-
_-
-_
_-
--
1136-2042-00
LIMIT SWITCH ASSEMBLY, with reversing switch.
1117-3274-01
CABLE REVERSE SWITCH ASSEMBLY, 24 V.
1806-5022-02
CONNECTOR PANEL, male,
16-pin,
AMP 2060361.
8000-9644-00 CONNECTOR PCB, female, B-pin, AMP 640136-5.
8000-9736-00
CONNECTOR CABLE, female, B-pin, AMP I-350241-9 or 640520-o.
1806-5024-02
CONNECTOR CABLE, female, %-pin, AMP 20637-I.
1117-3318-02
MOTOR AND BASE ASSEMBLY.
12
X433-893
