Integration – Global Commands
The following figure shows which objects from the controller can be monitored and commanded from the BAS front-
end.
MSTP Network
BAS front-end
VT7600 series tstat
Outdoor Temperature
Outdoor Temperature (AV9)
Schedule
Occupancy Command (MV12)
BAS current energy savings mode
Schedule and Outdoor Temperature
Fan Mode (MV15)
Occupied Heating Setpoint (AV42)
Unoccupied Heating Setpoint (AV44)
Occupied Cooling Setpoint (AV43)
Unoccupied Cooling Setpoint (AV45)
Restrict user access to thermostat
Keypad Lockout (MV18)
Outdoor Temperature and HVAC plant current mode System Mode (MV13)
Global commands all devices
( All thermostats )
Global commands specific devices
( Specific area thermostats )
Room Temperaturefor testing and override
Room Temperature (AV7)
Global Command Control Level Device Level

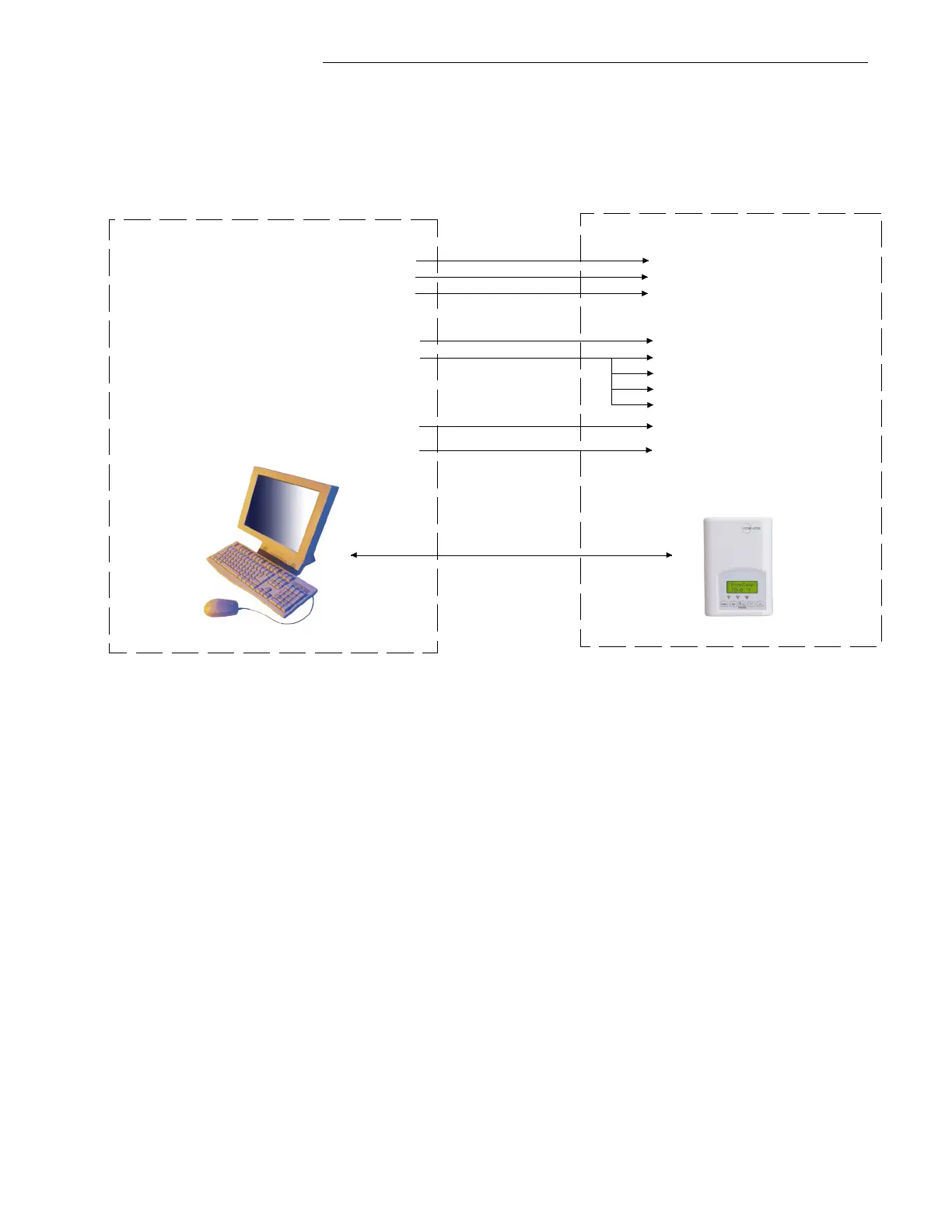

Figure 1: Global commands from a BAS front-end to a VT7600 series controller
