Viconics VT7600 Series User Manual

7 | 028-0228-06 November 2015

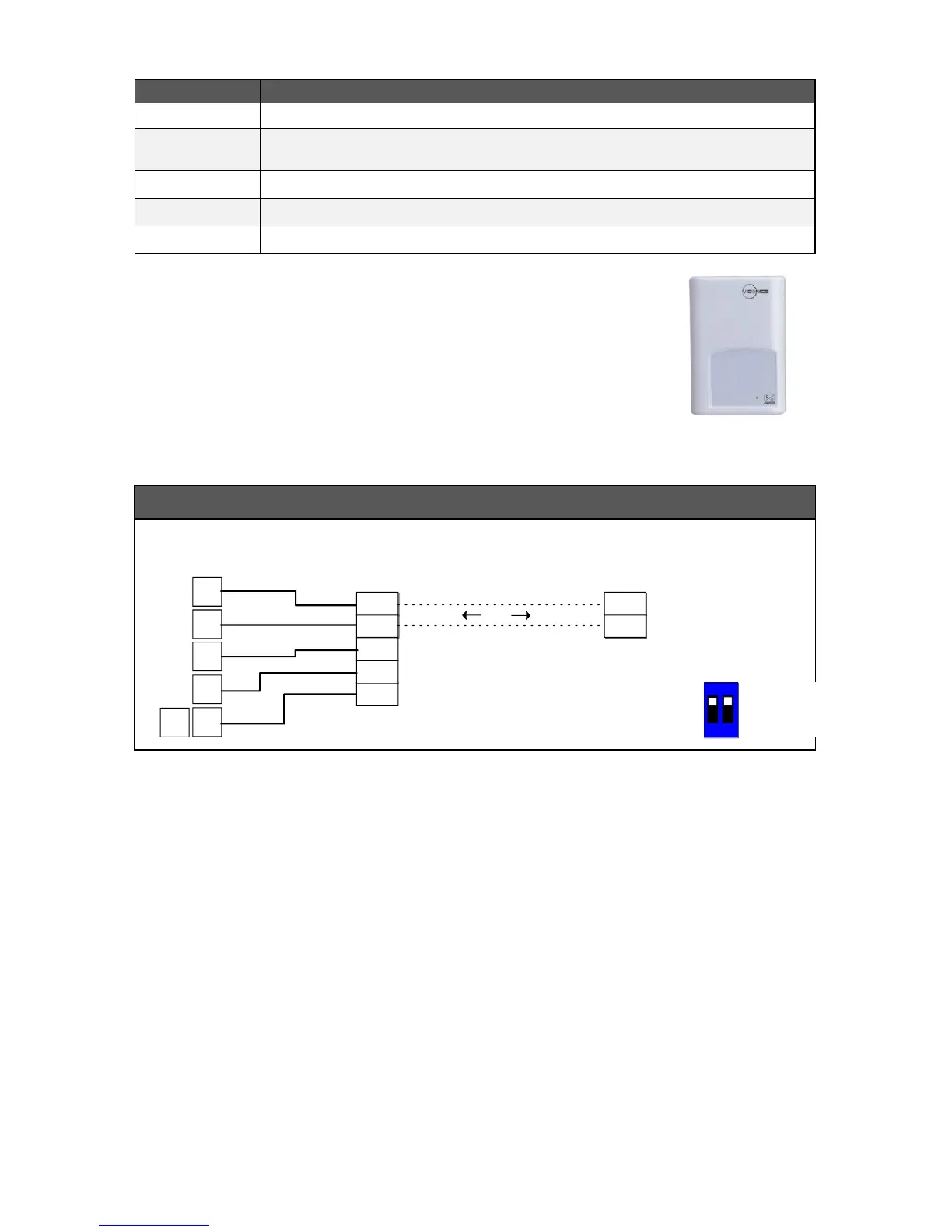

Remote sensor accessories
MODEL NO.
DESCRIPTION
S3010W1000
Wall mounted temperature sensor
S3020W1000
Wall mounted temperature sensor+override button and occupancy
status
S2020E1000
Outdoor temperature sensor
S2060A1000
Averaging temperature sensor
S2000D1000
Duct mounted temperature sensor
Remote mount temperature sensors use 10K NTC thermistor.
This sensor can be used for:
 Various averaging combinations
 Optional occupancy led
 Optional override key
Wall mounted sensor
WIRING EXAMPLE OF SINGLE REMOTE ROOM SENSOR:
AU
D1
RS
Scom
C
D2
Scom
RS
Scom
RS
C
DI
Aux
Scom
RS
Scom
RS
OR
VT7600 Series
1x S3020W1000
Remote wiring 1 sensor
S2-1 = ON / S2-2 = ON
S3010W1000
Remote wiring 1 sensor
S2-1 = ON / S2-2 = ON
1
2
ON
Dip switch
setting for:
1 sensor
S2-1 = ON
S2-2 = ON
