Viconics VT7600 Series User Manual

2 | 028-0228-06 November 2015
INSTALLATION
Remove security screw on bottom of Room
Controller cover.

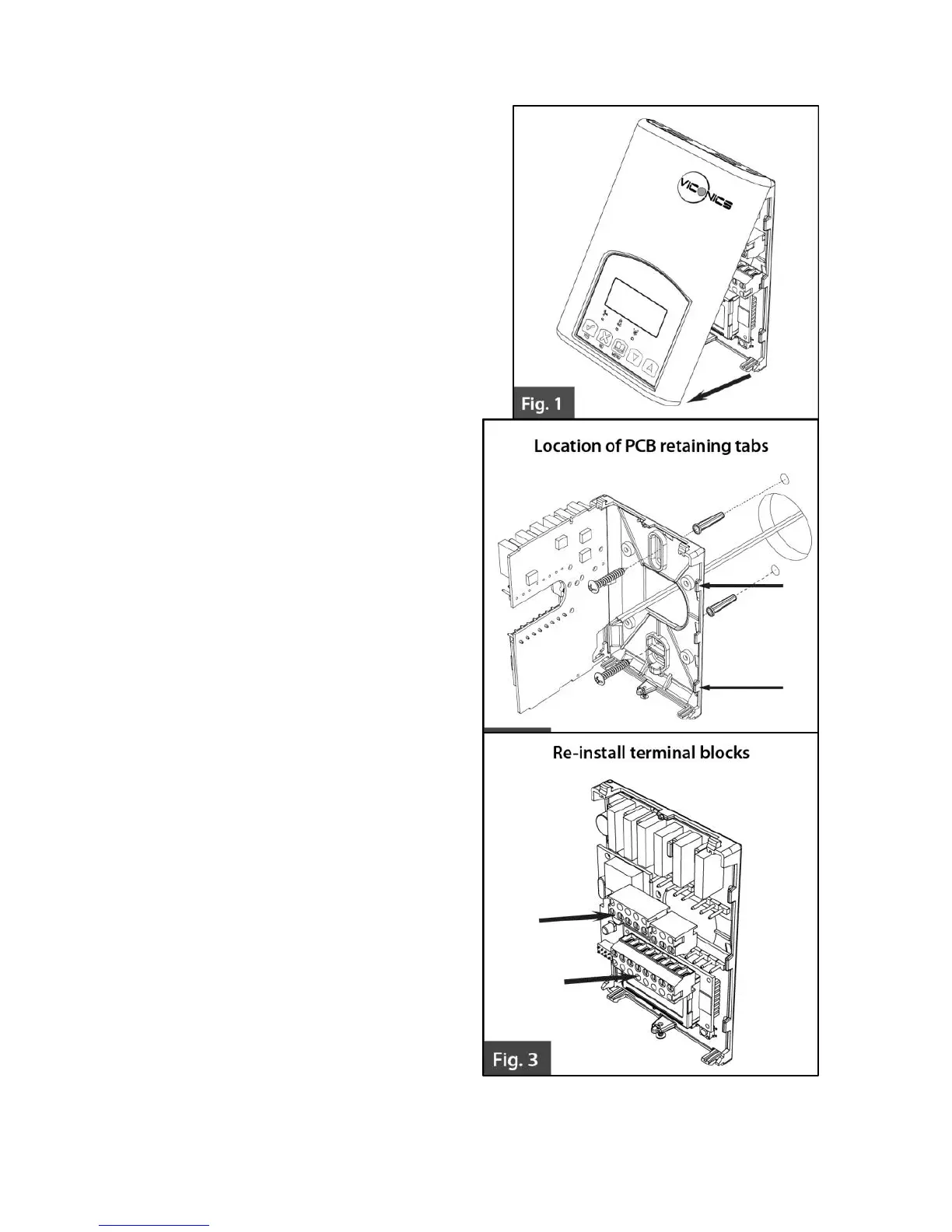

 Open unit by pulling on bottom side
of Room Controller (fig. 1).
 Remove wiring terminals from
sticker.
 Read FCC ID and IC label installed
in the cover.
Location
1. Should not be installed on an outside
wall.
2. Must be installed away from any
direct heat source.
3. Should not be installed near air
discharge grill.
4. Should not be affected by direct
sun radiation.
5. Nothing should restrict vertical
air circulation to Room
Controller.
Installation
1. Swing open Room Controller
PCB to left by pressing PCB
locking tabs (fig. 2).
2. Pull out cables 6” out from wall.
Ensure wall surface is flat and
clean.
3. Insert cable in central hole of
base.
4. Align base and mark location of
two mounting holes on wall
ensuring proper side of base is
up.
5. Install anchors in wall.
6. Insert screws in mounting holes
on each side of base (fig. 2).
7. Gently swing back circuit board
on base and push until tabs
lock.
8. Strip each wire 1/4 inch from
end.
9. Insert each wire according to
wiring diagram.
10. Gently push excess wiring back
into hole (fig. 3).
