",eTA
MAINTENANCE
Cone.

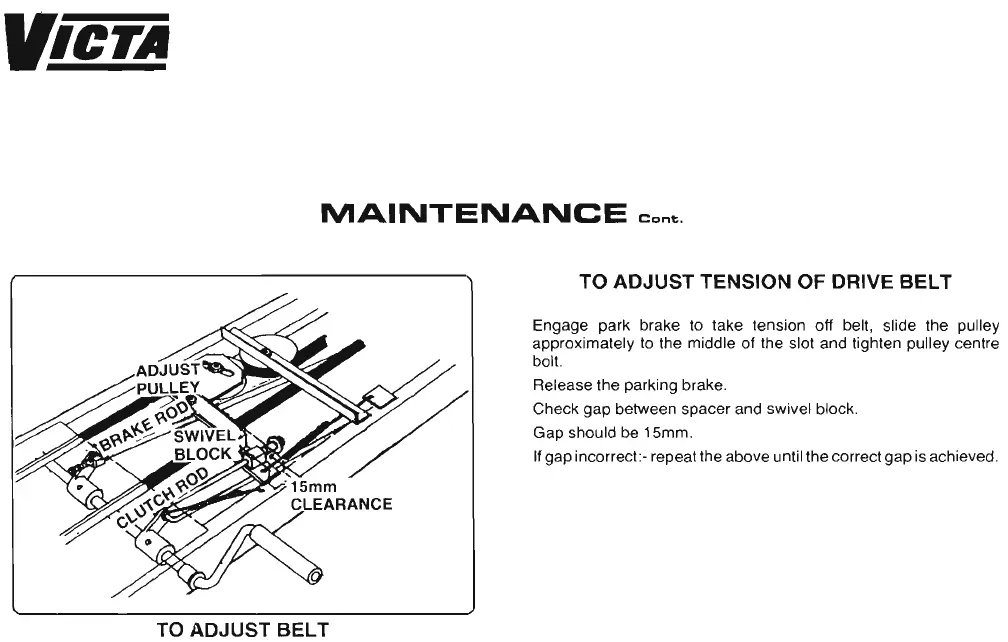

TO ADJUST TENSION OF DRIVE BELT
Engage park brake to take tension off belt, slide the pulley
approximately to the middle of the slot and tighten pulley centre
bolt.
Release the parking brake.
Check gap between spacer and swive l block.
Gap should be 15mm .
If gap incorrect:- repeat the above until the correct gap is achieved.
TO ADJUST BELT
