Victa STB2224 User Manual

Trimmer Flange
Housing
13

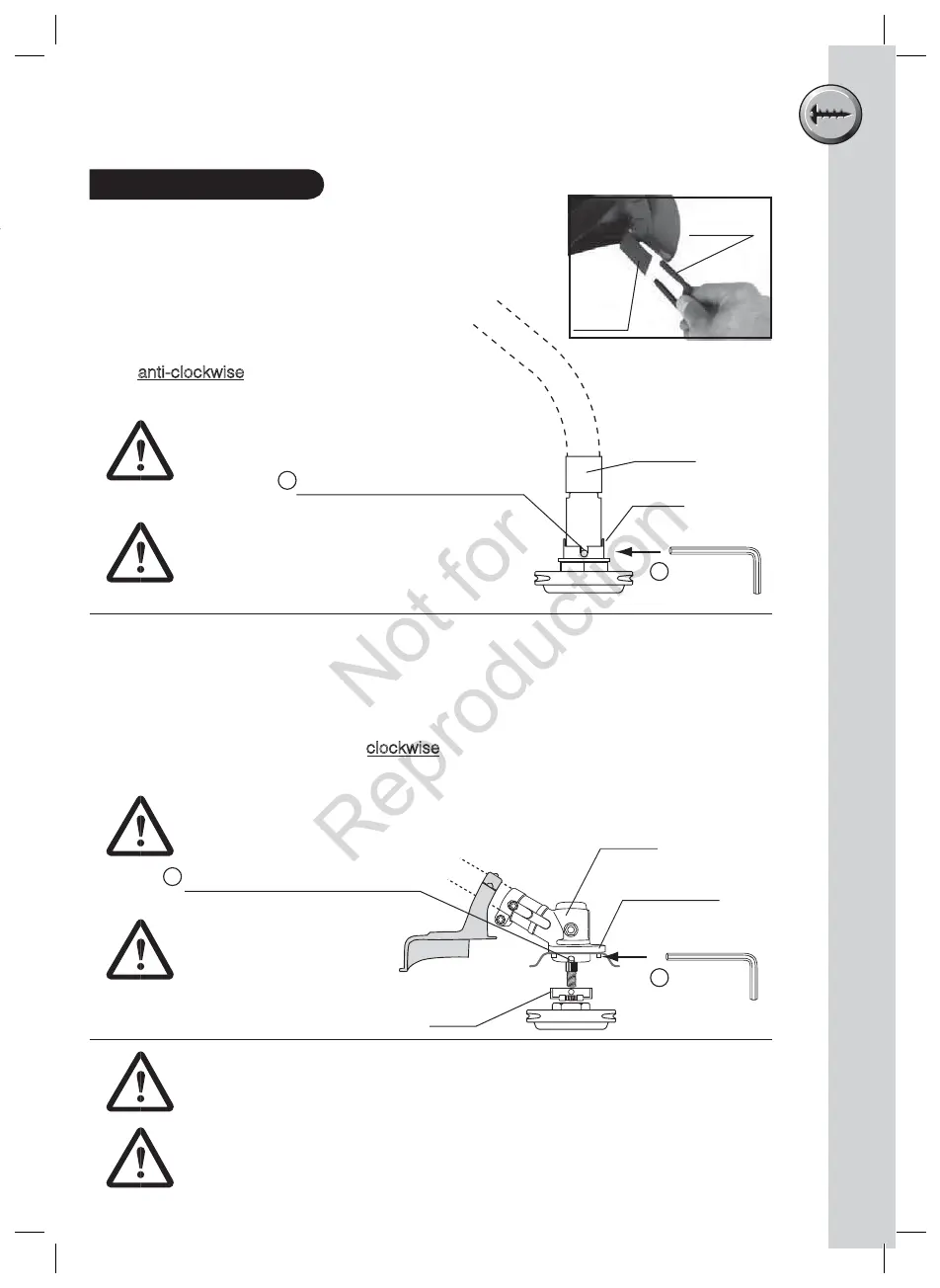

ASSEMBLYPROCEDURES
BENT SHAFT (Sabre & Tornado)
1. Replace blade protector.
2. Align hole in flange and housing.
3. Insert Allen Key (supplied) into hole in
flange and housing to prevent rotation.
4. Grip the cast head and rotate
anti-clockwise
to remove.
5. Refitting is in reverse order.
Ensure the blade on guard is covered.
Always disconnect spark plug H.T.
lead before any work is done on
the trimmer.
STRAIGHT SHAFT (Tornado Plus and Razor)
1. Replace blade protector.
2.
2.
3.
3.
2. Align hole in flange and housing.
3. Insert Allen Key (supplied) into hole in flange and housing to prevent rotation.
4. Grip the cast head and rotate clockwise
to remove.
5. Refitting is in reverse order.
Ensure the blade on guard is covered.
Always disconnect spark
plug H.T. lead before
any work is done on the
trimmer.
NOTE: Not aligning the flange to the housing hole will cause damage.
Trimmer nylon line will deteriorate with time resulting in more frequent
line breakages.
Fitting Trimmer Head
Align housing slot with key hole
Allen Key
Flange
Flange
Housing
Allen Key
r
Line
cutting
blade
Blade
protector
Align housing slot with key hole
Not for
Reproduction
