5

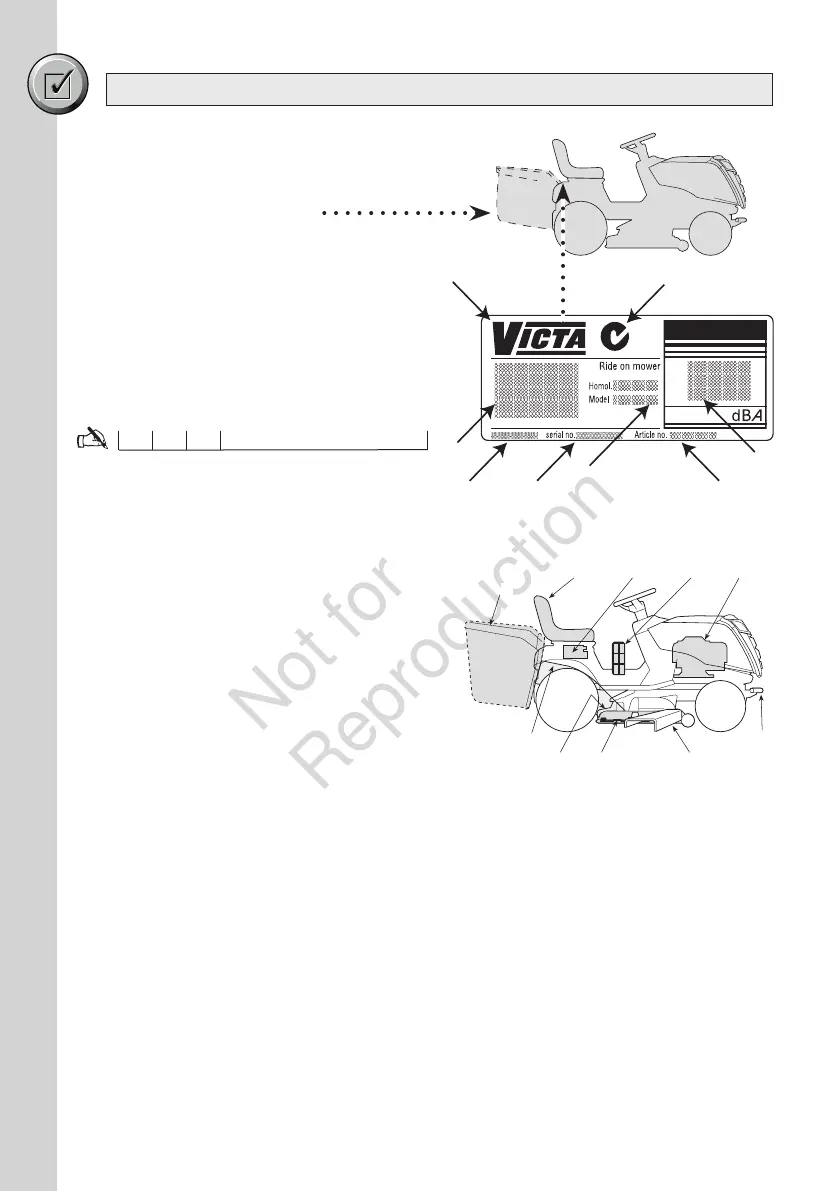

2.1 IDENTIFICATION OF THE MACHINE
The label located near the battery housing
has the essential data of each machine.
** Rear catch bag illustrated
(only available on selected models.)
1. Brand Marking
2. Model Number
3. Barcode Number
4. Date of Manufacture
5. Serial Number
6. Article Number
7. Noise Rating according to
Manufacturer test standard
2. IDENTIFICATION OF THE MACHINE & COMPONENTS
Write your machine’s serial number here (5)
2.2 IDENTIFICATION OF MAIN COMPONENTS
The main components of the machine have the following functions:
11. Cutting deck: this is the guard housing
the rotating blades.
12. Blades: these are what cut the grass.
The wings at the ends help convey the
cut grass towards the collector channel.
13A. Stone-guard or deflector: It is a
safety guard which prevents objects
drawn up by the blades from being
thrown outside of the machine.
(Side discharge models only)
13B. Collector channel: this is the part connecting the cutting deck to the grass-
catcher. (Rear catch models only)
13C. Grass-catcher: as well as collecting the grass cuttings, this is also a safety
element that stops any objects drawn up by the blades from being thrown
outside of the machine. (Rear catch models only)
14. Engine: this moves the blades and drives the wheels. Its specifications and
regulations for use are described in a specific manual.
15. Battery: provides the energy for starting the engine.
16. Driving seat: this is where the machine operator sits. It has a sensor
connected to safety devices for detecting the presence of the operator.
17. Regulation and safety labels: give reminders on the main regaulations for
working safely, each of which is explained in chapter 1.
18. Front Bumper: This is a safety guard and must be fitted to all machines.
16
13C**
17 14
13A**
11
15
12
18
13B**
**
** ITEMS ONLY ON SELECT MODELS
