3. UNPACKING AND ASSEMBLY
6
For storage and transport purposes, some components of the machine are not
installed in the factory and have to be assembled after unpacking. Follow the
instructions below.
IMPORTANT
The machine is supplied without engine oil or fuel. Before
starting the engine, fill with oil and fuel following the instructions given in the
engine manual.
WARNING!
Unpacking and completing the assembly should be
done on a flat and stable surface, with enough space for machine handling
and its packaging, always making use of suitable equipment.
3.1 UNPACKING
When unpacking the machine, take care to gather all individual parts and fittings,
and do not damage the cutting deck when taking the machine off the pallet.
The packaging contains:
– the machine;
– the steering wheel;
– the dashboard cover;
– the seat;
– the battery;
– the front bumper
( 2.2, #18) If not preassembled in factory,
Check front of machine. Must be fitted.
– the stone-guard;
(Side discharge models only)
– the grass catcher (with instructions) (Rear catch models only)
– the lower part of the rear plate, the grass catcher brackets and accessories
necessary for completing and assembly (Rear catch models only)
NOTE
Only some model are supplied inclusive of some kits
such as the Mulching Plug, Tow Hitch and Battery Charger. These kits will
require assembly according to the instructions and are not factory fitted.
NOTE
To prevent damage to the cutting deck, raise it to its
maximum height and take upmost care when taking the machine off the pallet.
Hydrostatic transmission
To make it easier to get the machine off
the pallet and to move it, the drive disengage lever should be put in position
«B» (
4.33).
Disposal of the packaging should be done in
accordance with the local regulations in force.

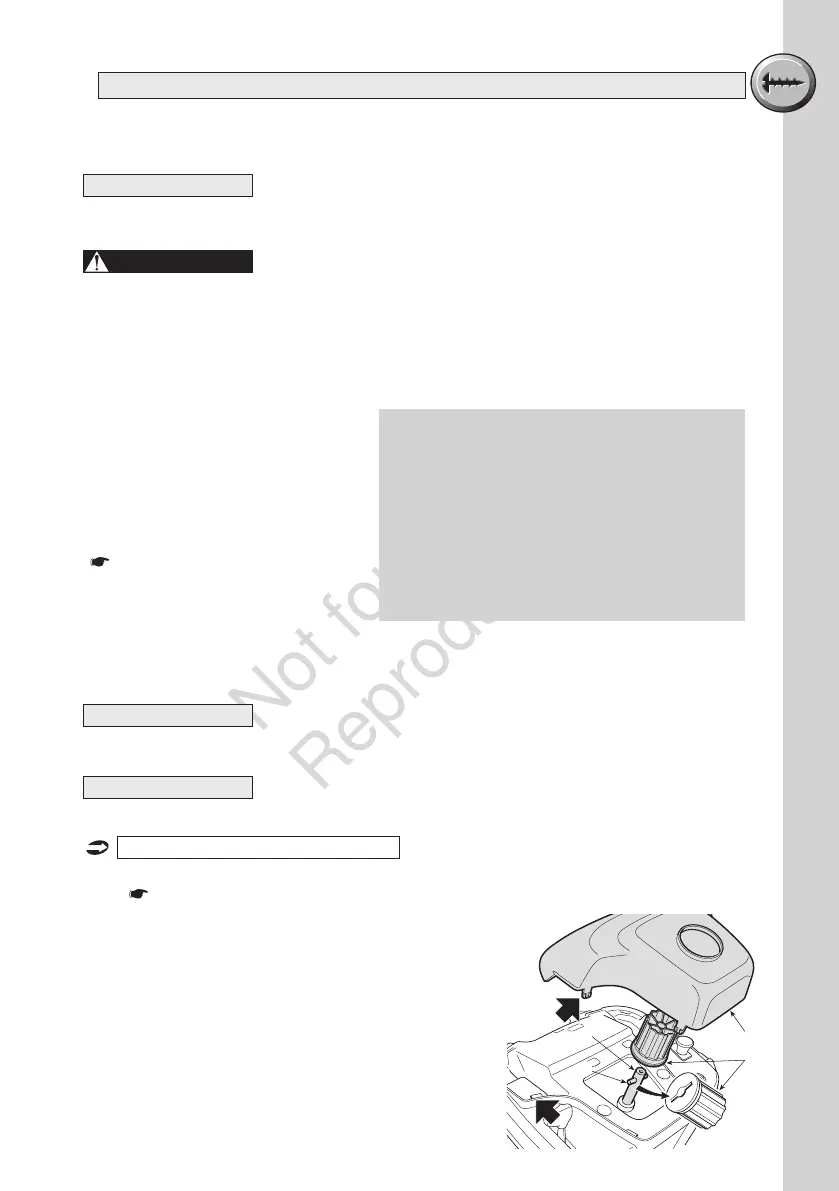

3.2 FITTING THE STEERING WHEEL
Put the machine on a flat surface & straighten up
the front wheels.
Mount the hub (1) on the shaft (2), making sure
that the plug (3) is correctly fitted into the hub seat.
Fit the dashboard cover (4) clicking the seven
fasteners into place.
1
2
3
4
– an envelope containing:
– the operator’s manuals & documents,
– steering wheel assembly parts & seat
assembly bolts & screws
– stone-guard fasteners
(Side discharge models only)
– the connection screws for the battery
cables
– 2 starter keys,
– 1 spare 10 A fuse.
