13.1

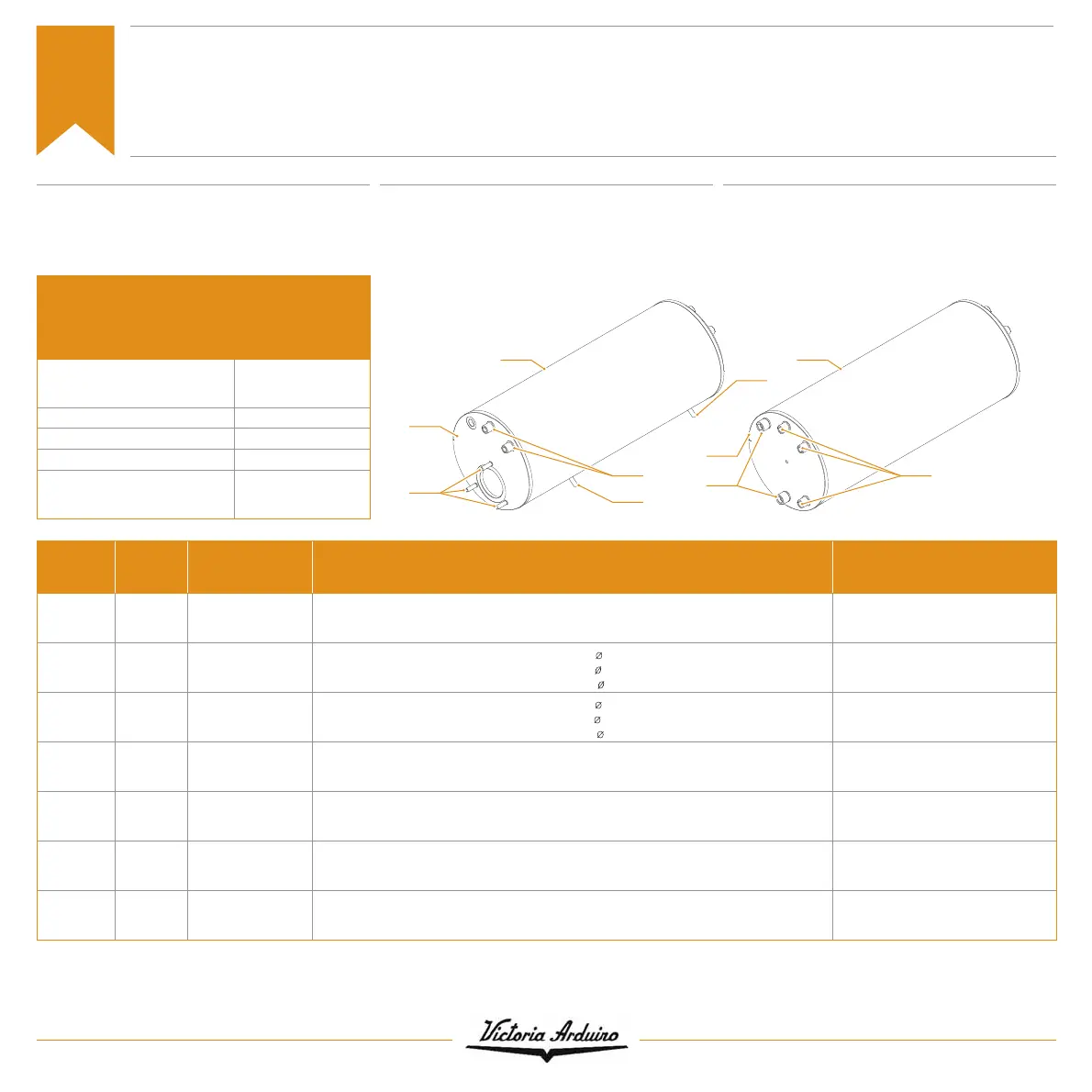

SCHÉMA CHAUDIÈRE
VAPEUR 2/3 GROUPES
EN
EN
13.1
STEAM BOILER DIAGRAM
2/3 GROUPS
IT
IT
13.1
SCHEMA CALDAIA VAPORE
2/3 GRUPPI
Elemento
Element
Élément
Quantità
Quantity
Quantité
Numero Parte
Part Number
Numéro Partie
Descrizione
Description
Description
Materiale
Material
Matériau
1100051090
Corpo caldaia
Boiler body
Corps chaudière
INOX AISI 316L
2100049622
Flangia PR
161
PR Flange
161
Flasque PR
161
INOX AISI 316L
3100049631
Flangia PS
161
PS Flange
161
Flasque PS
161
INOX AISI 316L
4200044360
Raccordo G 3/8 M
G 3/8 M fitting
G 3/8 M Raccord
INOX AISI 316L
5500047050
Raccordo G 1/8 M
G 1/8 M fitting
G 1/8 M Raccord
INOX AISI 316L
6300081410
Prigioniero M6x20
M6x20 stud
Boulon prisonnier M6x20
INOX A2
7200080730
Prigioniero M6x15
M6x15 stud
Boulon prisonnier M6x15
INOX A2
DATI PROGETTO DIRETTIVA PED
PROJECT DATA FOR DIRECTIVE PED
DONNÉES PROJET DIRECTIVE PED
2014/68/CE
VOLUME
VOLUMES
VOLUMES
8 l
TS 139°C
P.V.S. 3,0 Bar
PT 4,0 Bar
FLUIDO
FLUID
FLUIDE
H
2
O
13
SCHEMI CALDAIA
BOILER DIAGRAMS
SCHÉMA CHAUDIÈRE
2
3
11
6
4
5 5
7
7
