CABINET DOOR & SCOREBOARD INSTALLATION
Install Scoreboard onto Cabinet Door
Step.1

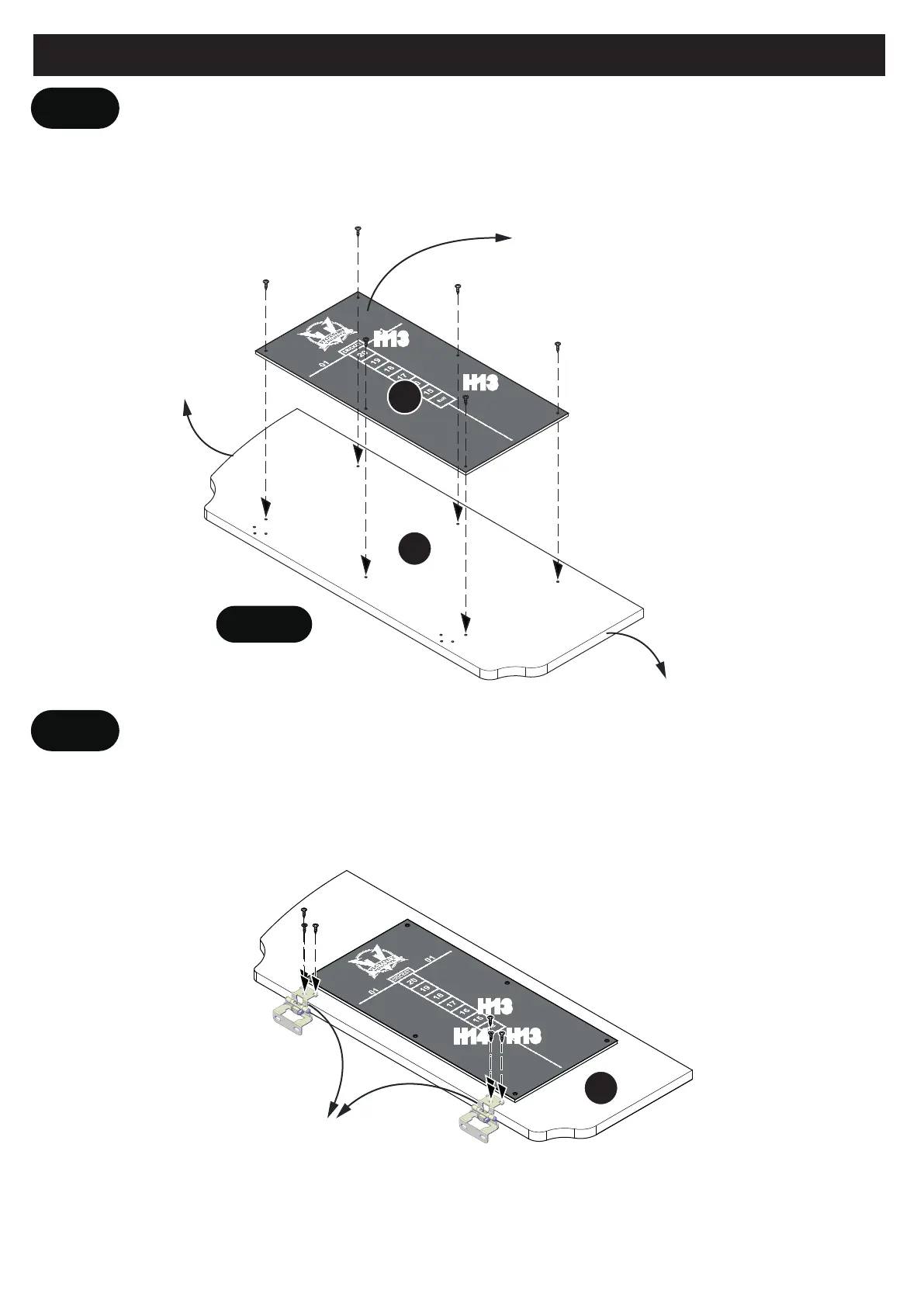

1. Align the 6 holes on P2 Scoreboard onto P3 Right Cabinet Door’s 6 pilot holes.
2. Using 6 pcs H13 Rounded Head Screw, screw P2 Scoreboard onto Cabinet Door like shown on Figure 1.
3. Repeat the same process to install P2 Scoreboard onto P4 Left Cabinet Door.
H13
H13
H13
H13
P2
P3
Flat side is Bottom
Curve side is Top
NOTE: Make sure Victory Tailgate logo
is at upside.
Hinge onto Cabinet Door
Step.2
1. Align 3 holes on each H12 Hinge onto P3 Right Cabinet Door’s 6 pilot holes.
2. Make sure to push the the Hinge to completely stick on Cabinet Door’s edge.
3. Using 2 pcs H13 Rounded Head Screw & 1 pc H14 Flat Head Screw to screw it to each Hinge.
Point 1 to 3 in this step shown on Figure 2.
4. Repeat the same process to install H12 Hinge to P4 Left Cabinet Door.
Figure 1
H13
H13
H14
NOTE: Make sure This area of the Hinges
are totally stick on Cabinet Doors’s edge.
H12
H12
P3
H13
- 3 -
H13
H13
H13
H13
H13
H14
H13
H13
H14
To Next Page
