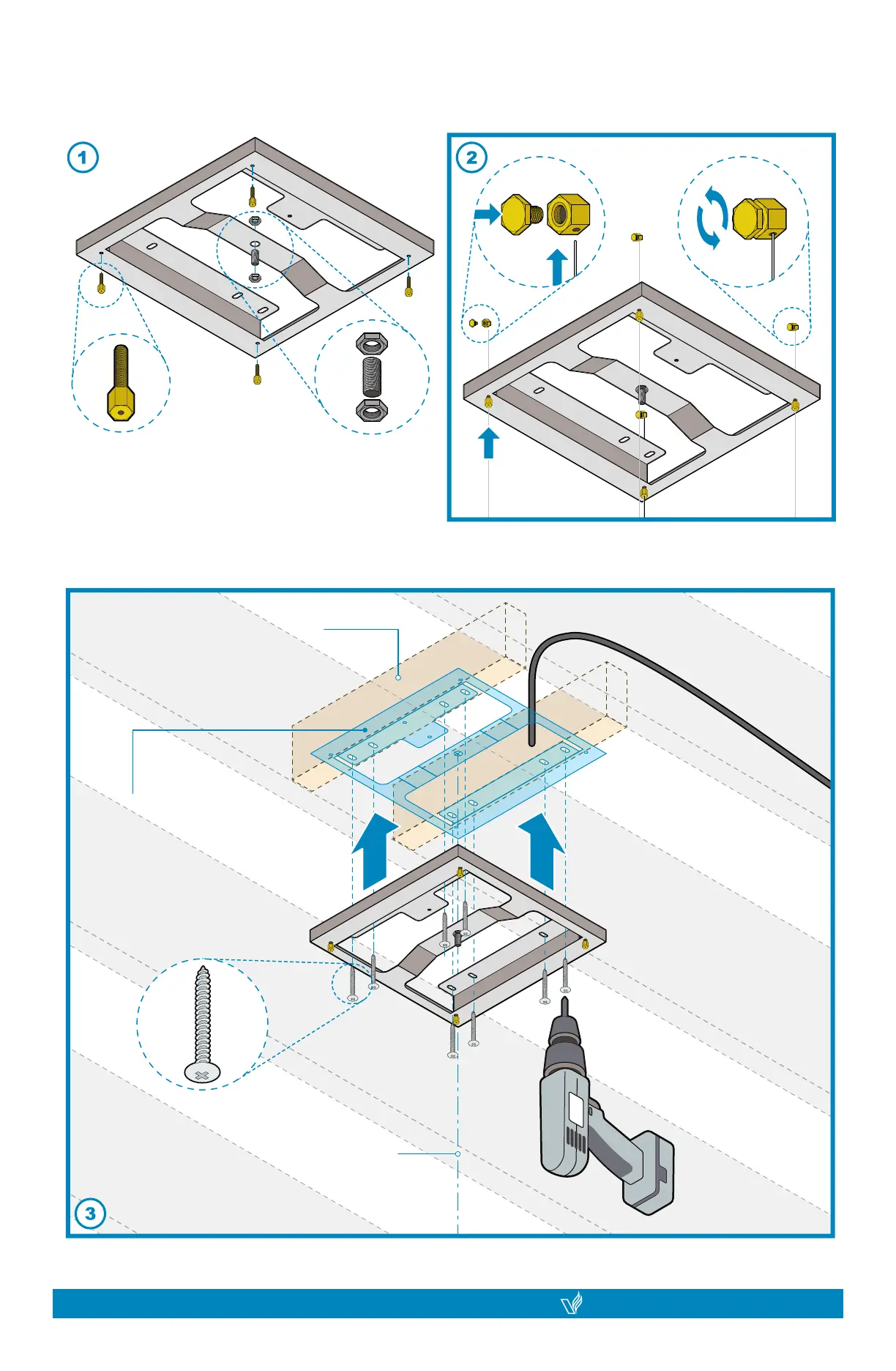

Adjustable
Screw (x4)
M10 - Barrel (x1)
and Nut (x2)
(a)
(b) (c)
Locking
Screw
and nut
(x4)
Ceiling Joist
a) Align centre of range hood with
centre of island stove countertop.
b) Paper stencil provided
will help line up the hanging
board.
c) To give proper support to
range hood, add two 6”x4”
braces separated 6½” from
centre in between the joists.
d) Cable coming from
120v power supply
through ceiling.
e) Fasten woodscrews to
the hanging board and
bracing.
Woodscrews
(x8)
VICTORY range hoods
| JUPITER
12
VICTORY range hoods
JUPITER |
13
INSTALLATION (Continued)
