Green
(ground to frame)
WhiteWhite
Black
Black
MOTOR
Unlock
Lock

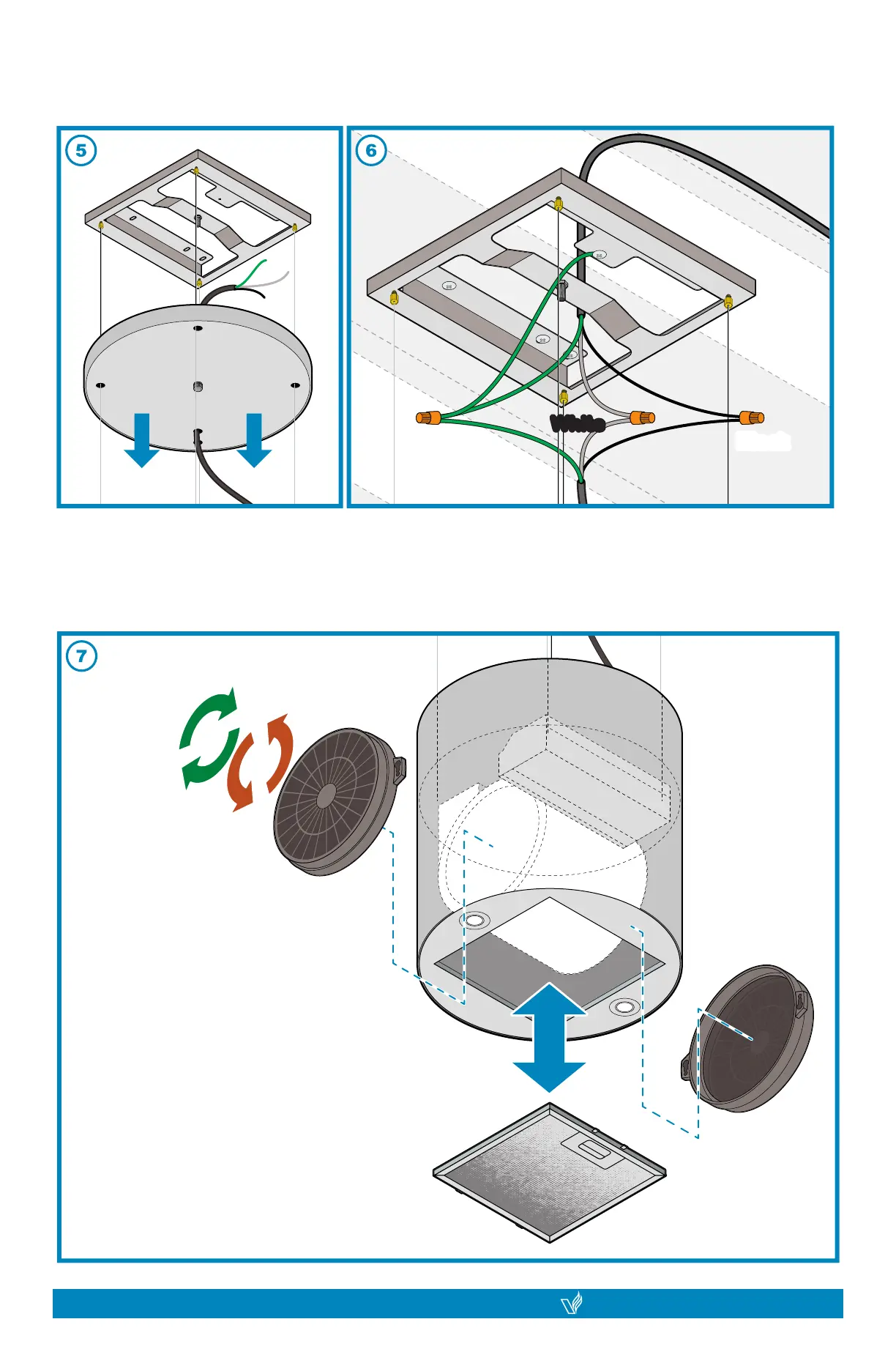

5) Drop down the decorative
board and thread the power cord
through remaining accessible
hole on the decorative board.
6) Have an electrician properly install the power cord to
the 120v power supply through the ceiling ensuring that it
is grounded and insulated. Reinstall decorative board, and
level the unit by rotating the adjustment screws.
Charcoal Filters (x2)
Aluminum Mesh
Grease Filter (x1)
VICTORY range hoods
| JUPITER
14
VICTORY range hoods
JUPITER |
15
INSTALLATION (Continued)
