Operating Controls and Connections
Operating Controls/ Names and Functions

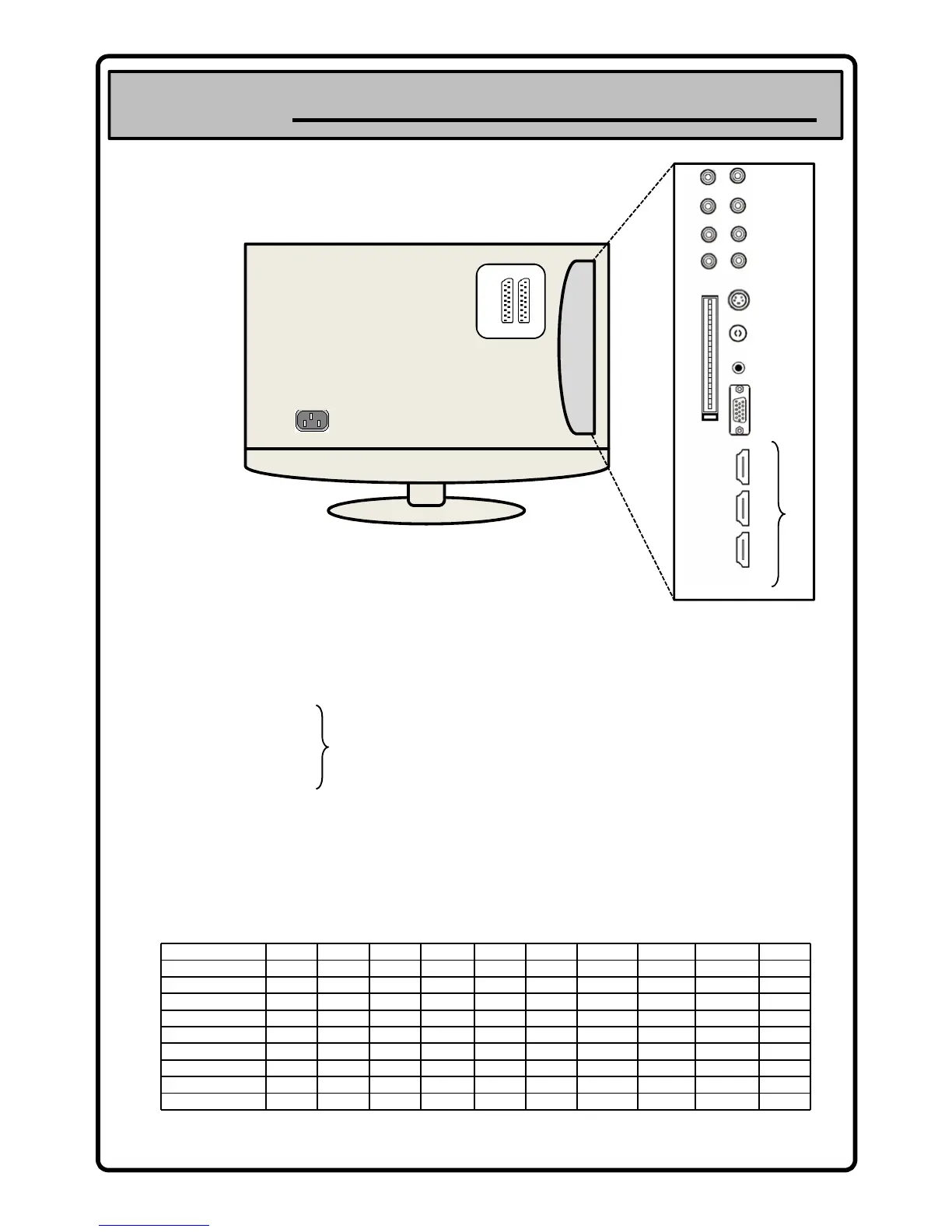

Rear Connections
10
10. AC INPUT TERMINAL 11. SCART 1/ SCART 2
11
12
13
14
15 16
17
18
19 20
22
21
23
24
25
26
fig 2
9
12. SIDE CONNECTION PANEL - see fig 2 - expanded
14. AUDIO IN R2 (For Component) – RIGHT
16. Pr/ Cr Component In
18. Pr/ Cb Component In Component In
20. Y Component In
22. CI Slot (common interface)
24. VGA Audio In (PC Sound)
26. HDMI 1/ HDMI 2/ HDMI 3 Connections
13. AUDIO IN L2 (For Component) - LEFT
15. AUDIO IN R1 (For Video/ S Video) - RIGHT
17. AUDIO IN L1 (For Video/ S Video) - LEFT
19. Video In (Composite)
21. S-Video In
23. ANT In (Antenna Input Terminal)
25. VGA In (D-sub 15pin)
(These figures are just for reference.)
VCR Set top box DVD Player DVD Recorder Blu Ray SKY HD Digital Camera Video Camera Games Console
PC
SCART 1 (RGB) o o o o o o
SCART 2 o o o o o o
COMPONENT IN o o o o
VIDEO IN o o o o
S-VIDEO IN o o o o o
VGA IN o o
HDMI 1 o o o o o o
HDMI 2 o o o o o o
HDMI 3 o o o o o o
Connections – where external products would typically connect (o = can be connected)
