Videocon VZ26 - Resistance Characteristics

36

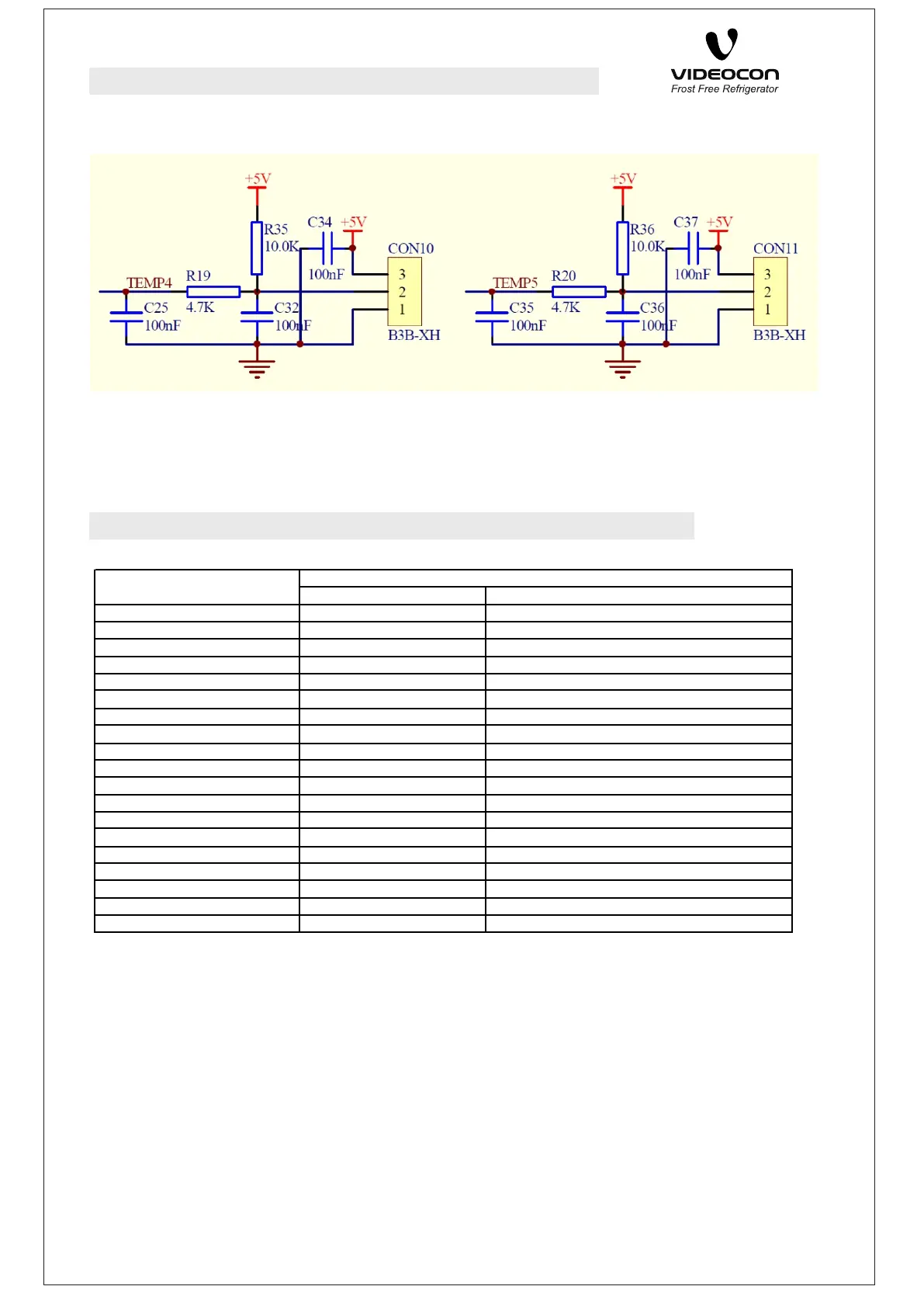

PCB DETAILS
KNOB CONTROL CIRCUIT
REFRIGERATOR SENSOR FREEZER SENSOR,DEFROSTING SENSOR
-40
℃
64.069KΩ 63.497KΩ
-35
℃
46.732 KΩ 46.315KΩ
-30
℃
34.387KΩ 34.080KΩ
-25
℃
25.522KΩ 25.294KΩ
-20
℃
19.103KΩ 18.932KΩ
-15
℃
14.417KΩ 14.288KΩ
-10
℃
10.968KΩ 10.870KΩ
-5
℃
8.410KΩ 8.335KΩ
0
℃
6.499KΩ 6.441KΩ
+5
℃
5.060KΩ 5.015KΩ
+10
℃
3.969KΩ 3.933KΩ
+15
℃
3.135KΩ 3.107KΩ
+20
℃
2.494KΩ 2.471KΩ
+25
℃
1.997KΩ 1.979KΩ
+30
℃
1.610KΩ 1.596KΩ
+35
℃
1.306KΩ 1.295KΩ
+40
℃
1.067KΩ 1.057KΩ
+45
℃
0.876KΩ 0.868KΩ
+50
℃
0.724KΩ 0.717KΩ
RESISTANCE
MEASURED TEMPERATURE
RESISTANCE CHARACTERISTICS TABLE OF SENSORS
Ÿ The tolerance of sensor resistance is ±2%.
Ÿ Be sure to measure the sensor resistance after keeping the sensor more than 3 minutes at a measuring temperature. (It
needs delay due to sensor speed.)
Ÿ Measure the resistance of the sensors with a digital tester after disconnecting CON1 and CON3 of main PCB.
