1. W INSTALLATION AND SETUP
INSTALLATION MANUAL
W & WIP Alarm panel

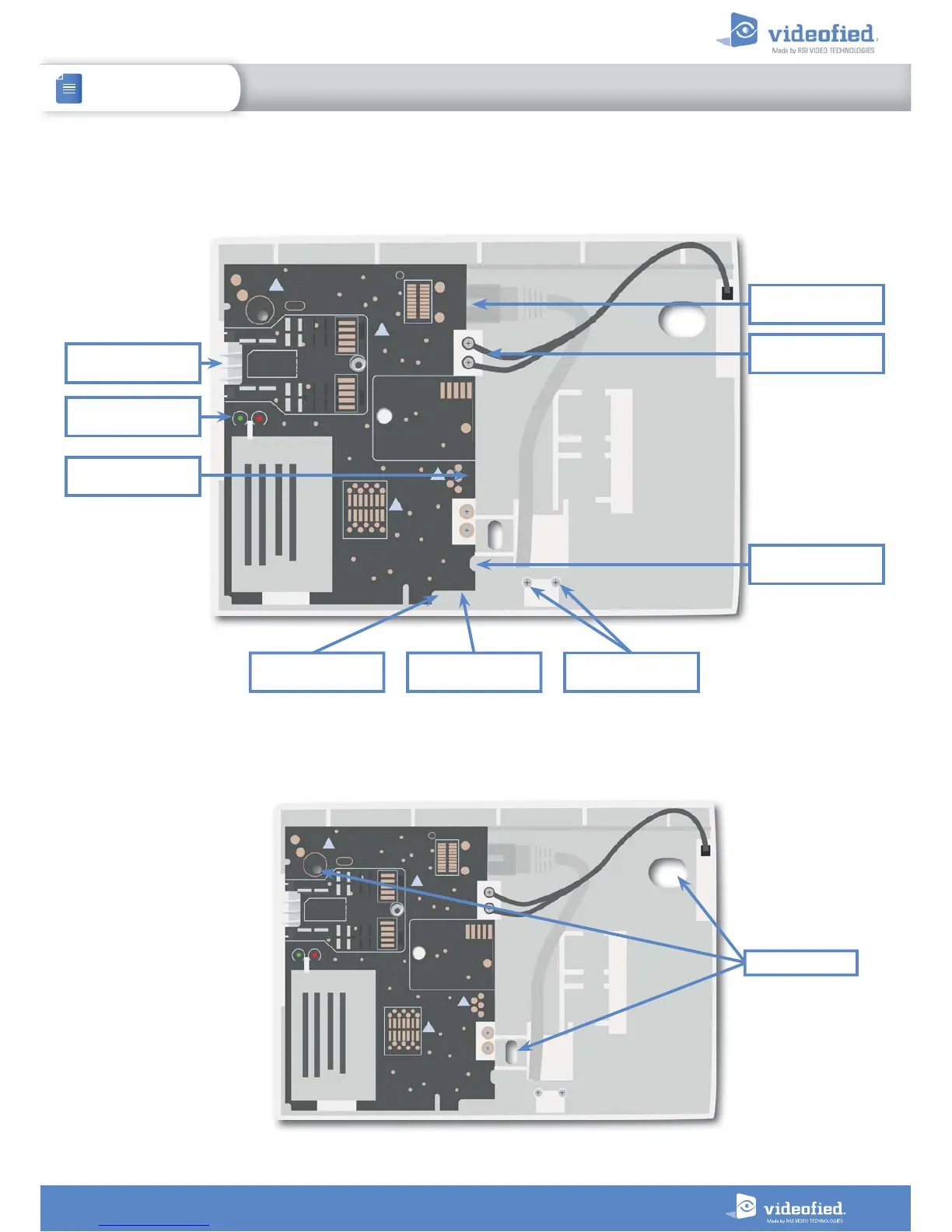

1.1 Panel overview
SIM card installation
Ethernet cable
connection
Status LEDs
Mini-USB connector
for power supply
Battery connector
1.2 Panel mounting
Fix the back casing on the
wall using the three mounting
holes (4 mm diameter) as
shown.
Mounting the panel is not
required for programming.
Bracket holes
COM button INIT button Locking screws
WIS100
Siren connector
