Plugging in your VideoLabs camera is easy. If your cable is disconnected from
the camera, plug the non-labeled end of the cable into the base of the camera.
•Plug the connector labeled “Video” into a standard NTSC or PAL “S-
Video-in” jack on a video digitizer board, VCR or TV.

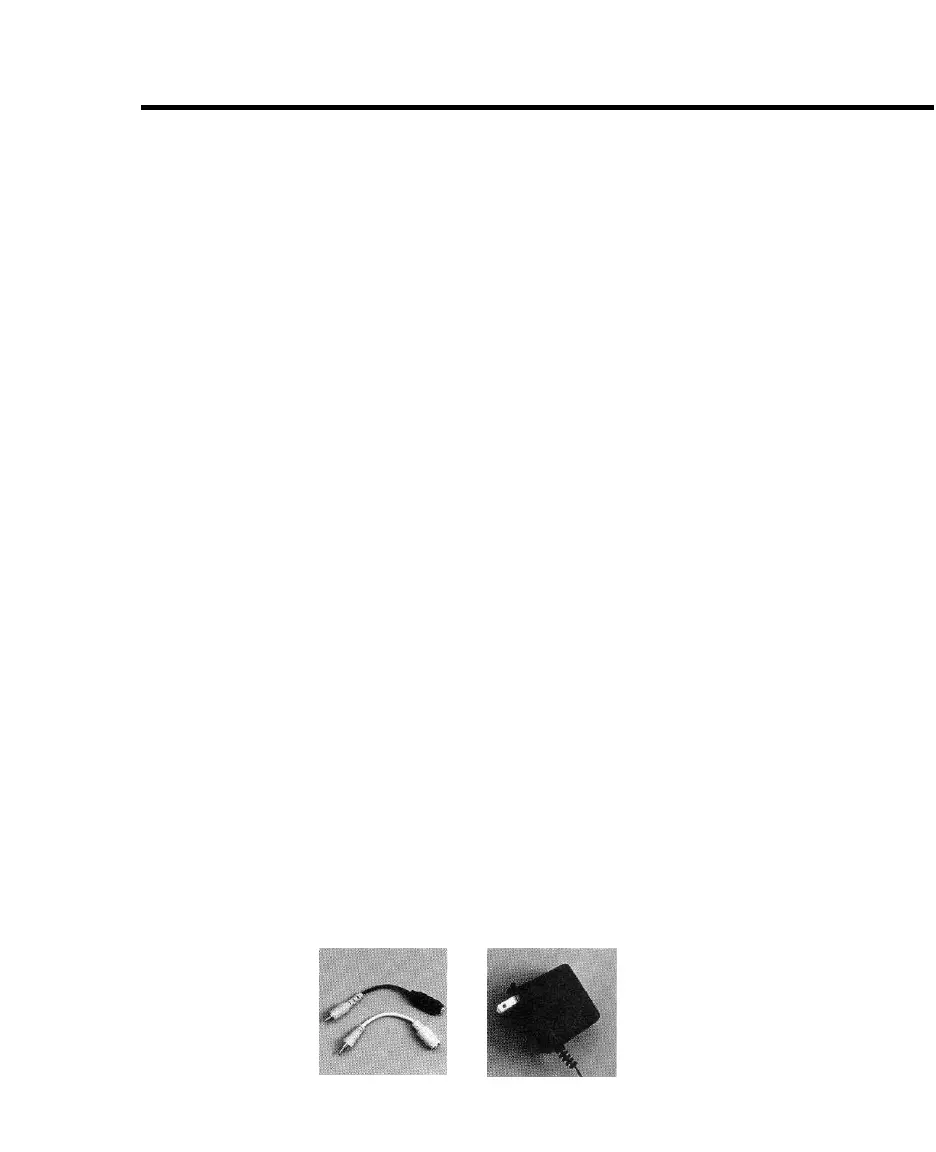

•An S-video adapter (Fig. 1) is included for converting the signal from S-
Video to Composite. Assemble the adapter by gently pushing it onto the
S-video connector. Then the RCA jack may be plugged into a standard
RCA acceptable video-in.
•Plug the connectors labeled “Audio” into the “Audio-in’’ jack.
•The final connector is for power. Your Videolabs camera comes with a wall-
mounted transformer (Fig.2). Plug the transformer into a power outlet,
then plug the remaining cable connector to the power supply jack.
Be sure to always use your Videolabs camera with the supplied wall-mount
power supply. Other power supplies, even if they “fit” may produce improper
voltages or reversed polarities that could seriously damage your camera.
To turn your camera on, use the ON/OFF switch located on the back of the cam-
era head or on the base.
Using your VideoLabs Camera
Plugging it in…
Turning it on…
Fig.2
Fig. 1
