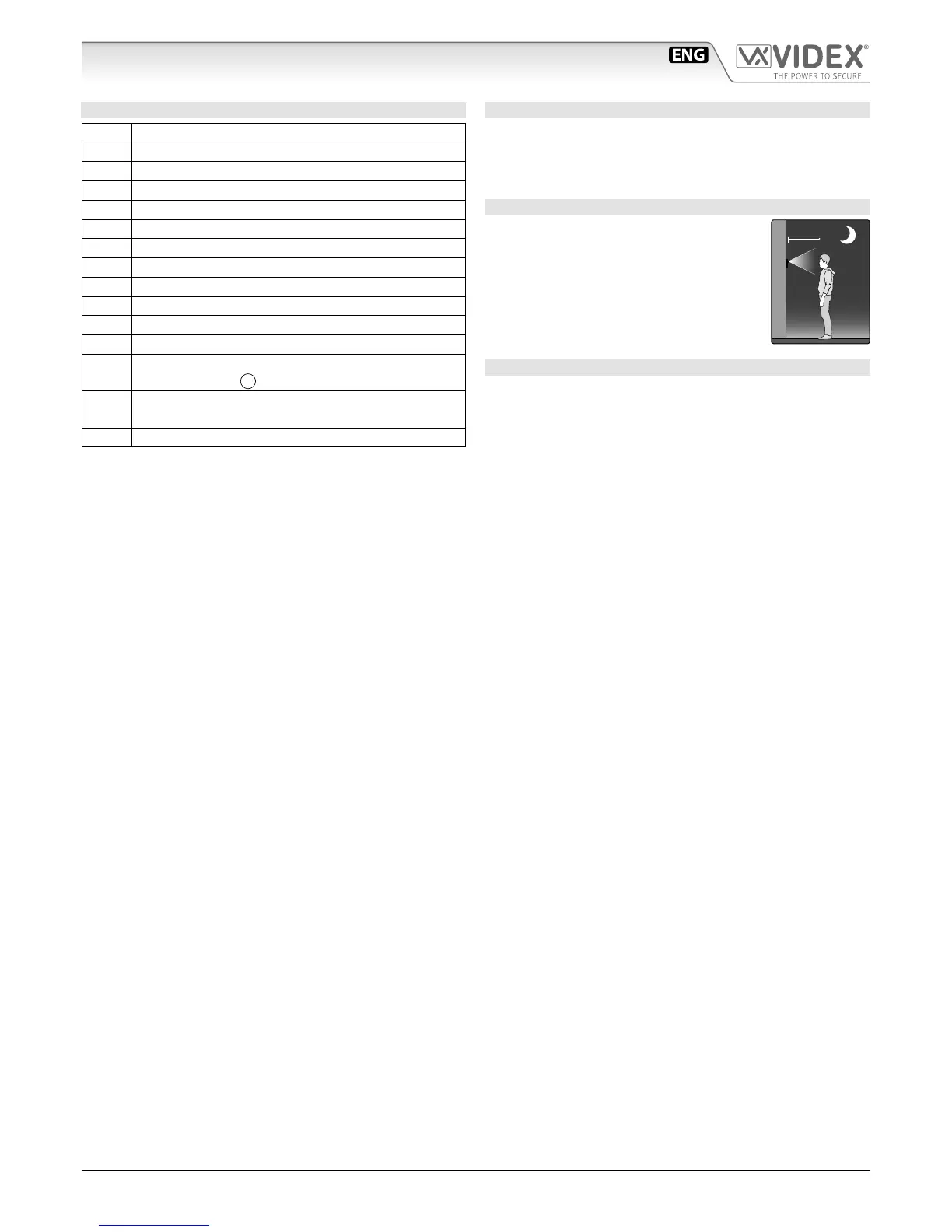

Art.4202 Audio/video digital front panel
CONNECTION TERMINALS SIGNALS
GND Power supply - ground
+12 Power supply - positive
– BUS connection - negative
L BUS connection - positive
BS “Busy system” signal
SL Accessory control signal
NC Relay out - normally close contact
C Relay out - common contact
NO Relay out - normally open contact
TRD Trade signal (from Art.701T)
PTE Push to exit button
V1 Balanced video signal sync+
V2/V Balanced video signal sync– (V2) or coax video signal
(V) refer to point
F
GNDV Camera power supply ground & video ground on coax
video system
12T +12Vdc camera power supply input
TECHNICAL SPECIFICATIONS
Memory capacity: 998 users
Working voltage: 13 Vdc +/- 10%
Max. absorption: about 350 mA
Working temperature: -10 +50° C
MAXIMUM ILLUMINATION DISTANCE FROM CAMERA AT NIGHT
The illumination LED’s within the camera will
illuminate the visitor when they are within
50cm of the camera.
Note: The camera supplied may be either
a CCD (With IR illumination) or CMOS (With
white LED illumination) sensor. This dierence
does not aect the performance.
