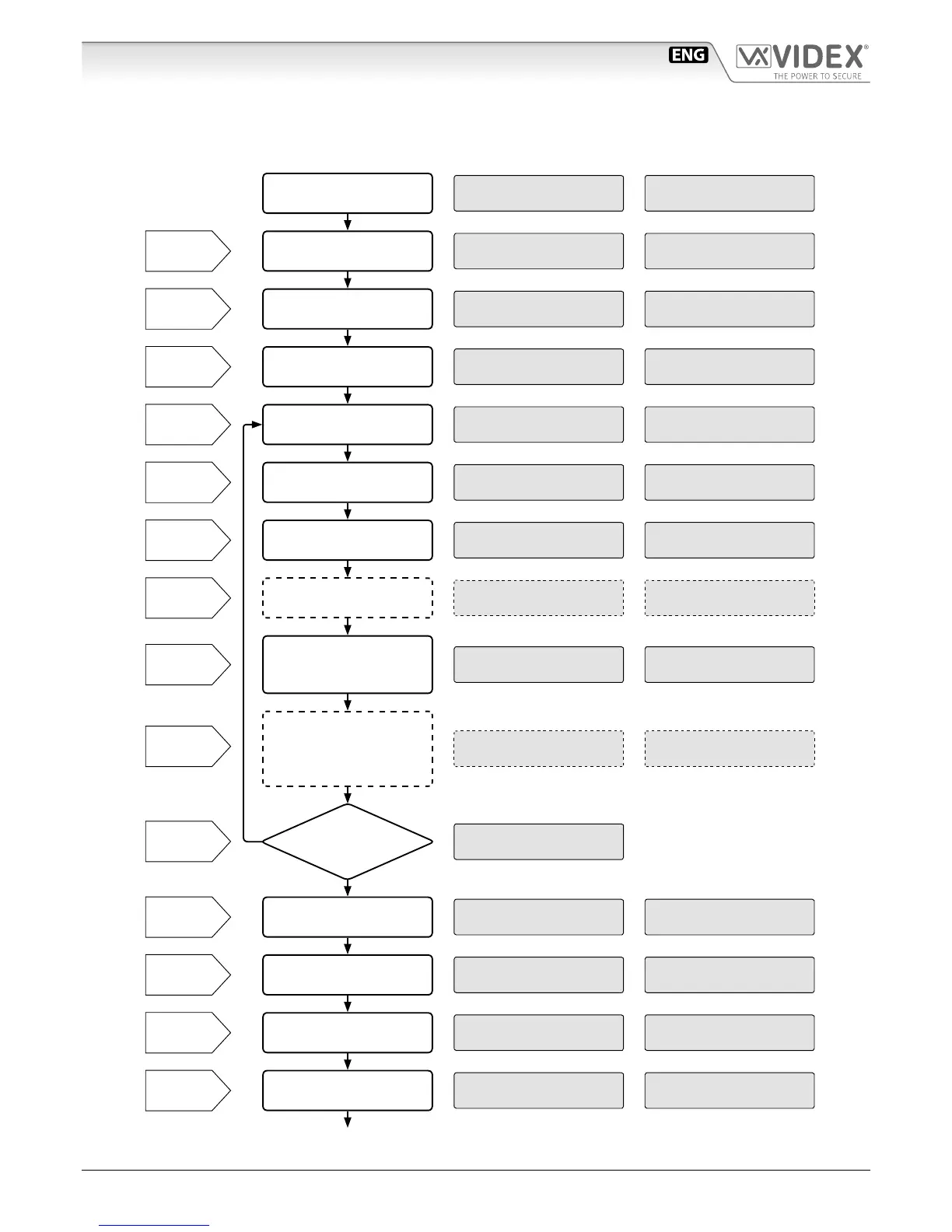

Videx 4202RV - Digital Panel Programming Flowchart (Fw. Rev 5.6 or Later)

66250200 - V2.1 - 15/08/18
- 6 -
4000 Series
Art.4202 - Installation instructions
code:*******
ENTER PRESET FACTORY
CODE: 0+6X1 (0111111)
code:*******
New:*******
ENTER MASTER CODE
(1 to 6 digits)
trade c.:xxxxxx
New:xxxx
ENTER “TRADE“ CODE
(1 to 6 digits)
Mode:standard
1=main
Set STANDARD or MAIN
MODE
mem.location:
ENTER MEMORY LOCATION
(1 to 998)
Flat:
New:xxxxxx
ENTER FLAT NUMBER
(1 to 6 digits)
ID Phone:
New:xxx
ENTER ID PHONE ADDRESS
(1 to 180)
Door code:
New:xxxxxx
ENTER “USER” CODE TO
OPEN THE DOOR
(1 to 6 digits)
User name:
xxxxxxx xxxxxxx
ENTER “USER NAME”
(R version only)
BY USING LETTERS ON
KEYPAD
MEM. LOCATION:
SPEECH TIME:XXX
NEW:XXX
ENTER “SPEECH TIME”
(1 to 255 sec)
DOOR TIME:XXX
NEW:XXX
ENTER “DOOR TIME”
(1 to 255 sec)
DEVICE NR:XXX
NEW:XXX
ENTER “DEVICE NUMBER”
(1 to 15)
SET LANGUAGE
(0 to 5)
[0]=ENG,1=IT,2=ESP,
3=POR, 4=FR, 5=GER
[0]=ENG,1=IT,2=ESP,
3=POR, 4=FR, 5=GER
SPEECH TIME:255
NEW:120
DOOR TIME:255
NEW:3
DEVICE NR:1
NEW:9
2206N N.
NEW: XXX
ENTER BLOCK NUMBER
2206N Addr. (1 to 15)
code:*******
code:*******
New:*******
trade c.:0
New:1234
Mode:standard
1=main
mem.location: 15
Flat:
New: 15
ID Phone:
New:15
Door code:
New:123456
User name:
HOGART STEVE
2206N N.
NEW: 2
On LCD display
PRESS ENTER
BUTTON
Example
OTHER
USER TO
PROGRAM?
YES
NO
NOTE 1
NOTE 1
NOTE 2
NOTE 3
NOTE 1,4
NOTE 1,4
NOTE 1,4
NOTE 6,4
NOTE 1
NOTE 1
NOTE 1
NOTE 1
NOTE 7
NOTES
1,4,5
CONTINUED ON NEXT PAGE
Art.2202, Art.4202, Art.8202
Digital Panel programming owchart (Fw. rev 5.6 or later)
