INDUCTION LOOP GUIDE
Induction Loop Guide EN-UK - V.1.1 - 19/10/16

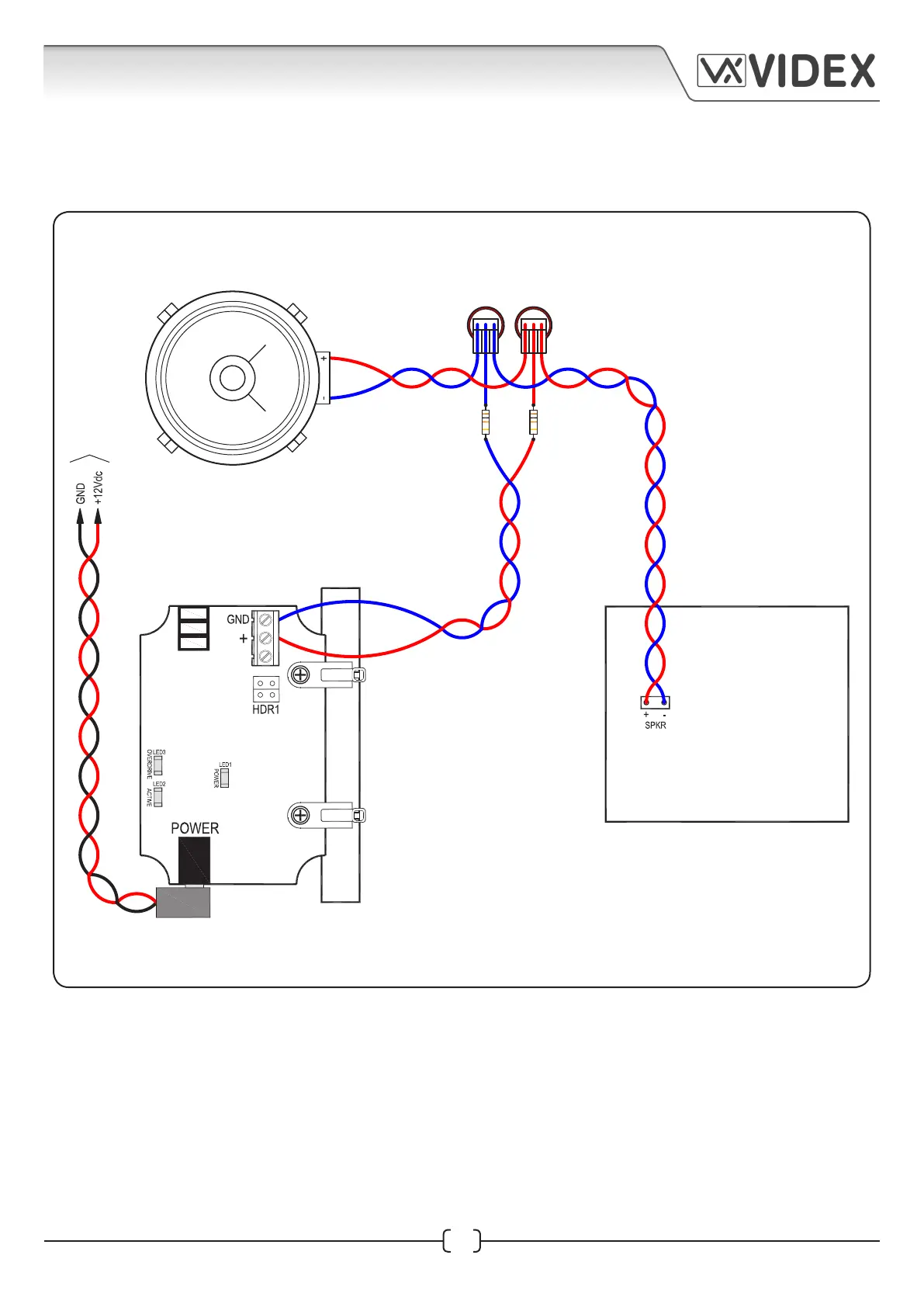

WIRING DIAGRAM
All speaker
variations
Speaker
Induction Loop
Scotchlok™ 3 Way
Butt Connectors
Connections to
12Vdc PSU (3A)
10KΩ resistor
10KΩ resistor
Fig.23 below shows the wiring connections from the Induction Loop pcb to any of the speaker
modules as listed on page 3.
Fig.23
