Videx 8800 User Manual

65801280 - V2.0 - 30/06/18
- 10 -

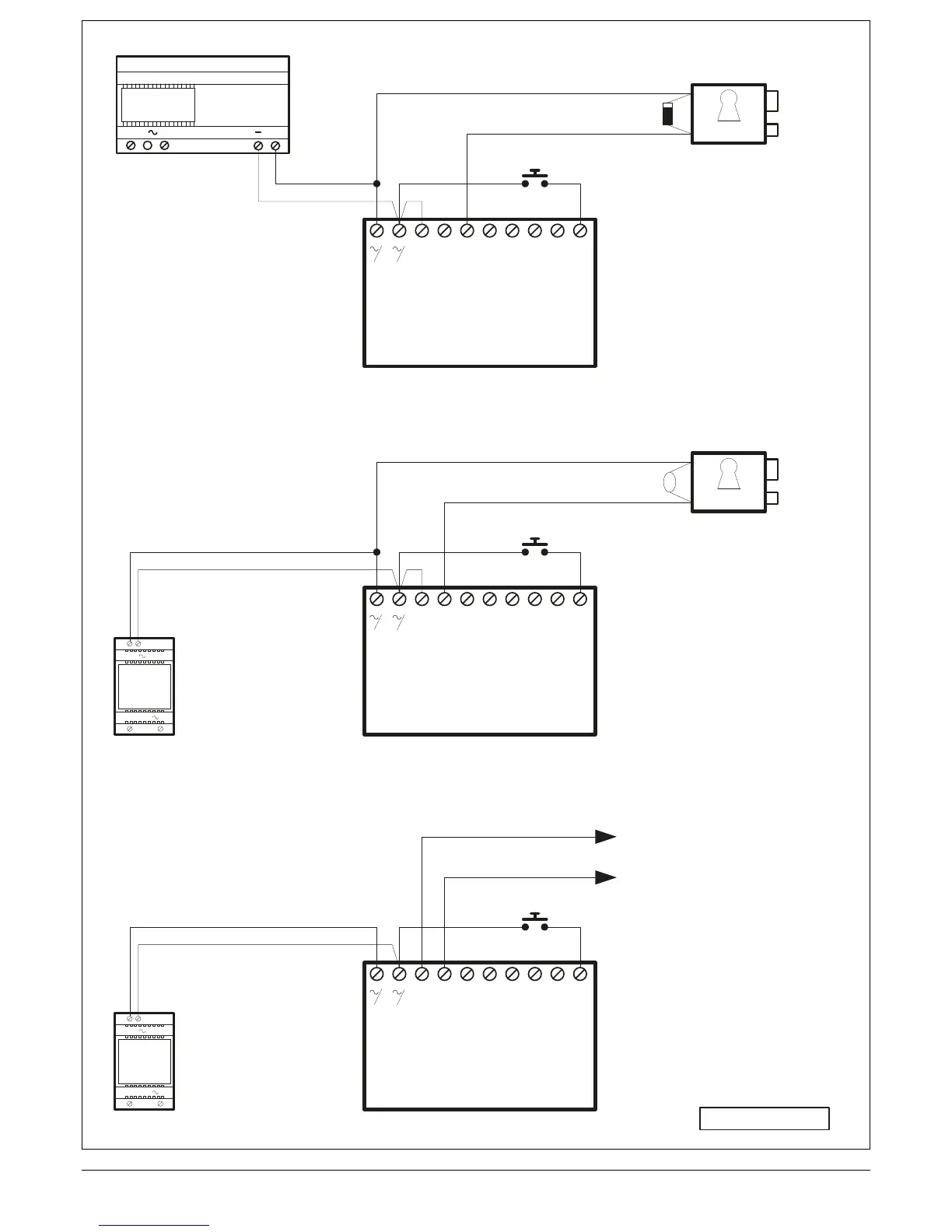

12Vdc
1N4002
FAIL SAFE DC LOCK
ART.521
230V 0
+
PUSH TO EXIT
FAIL SAFE LOCK RELEASE
12Vac
FAIL SECURE AC LOCK
PUSH TO EXIT
FAIL SECURE LOCK RELEASE
100uF
13V
ART.321
230V
12Vdc P.S.U.
12Vac P.S.U.
ELECTRIC GATES
PUSH TO EXIT
13V
ART.321
230V
12-24Vac/dc Input
VOLT FREE CONTACTS
VX8800
+
-
C1 NC1NO1 NO2 C2 NC2 SW1 SW2
12¸ 24
Vac/dc
VX8800
+
-
C1 NC1NO1 NO2 C2 NC2 SW1 SW2
12¸ 24
Vac/dc
VX8800
+
-
C1 NC1NO1 NO2 C2 NC2 SW1 SW2
12¸ 24
Vac/dc
VX8800-2.dwg
