Two Wire Videokit ESVK Series
PrtCode:ESVK_ENG_1.3 – Pag.10/24
23/10/2008 Rev.1.3

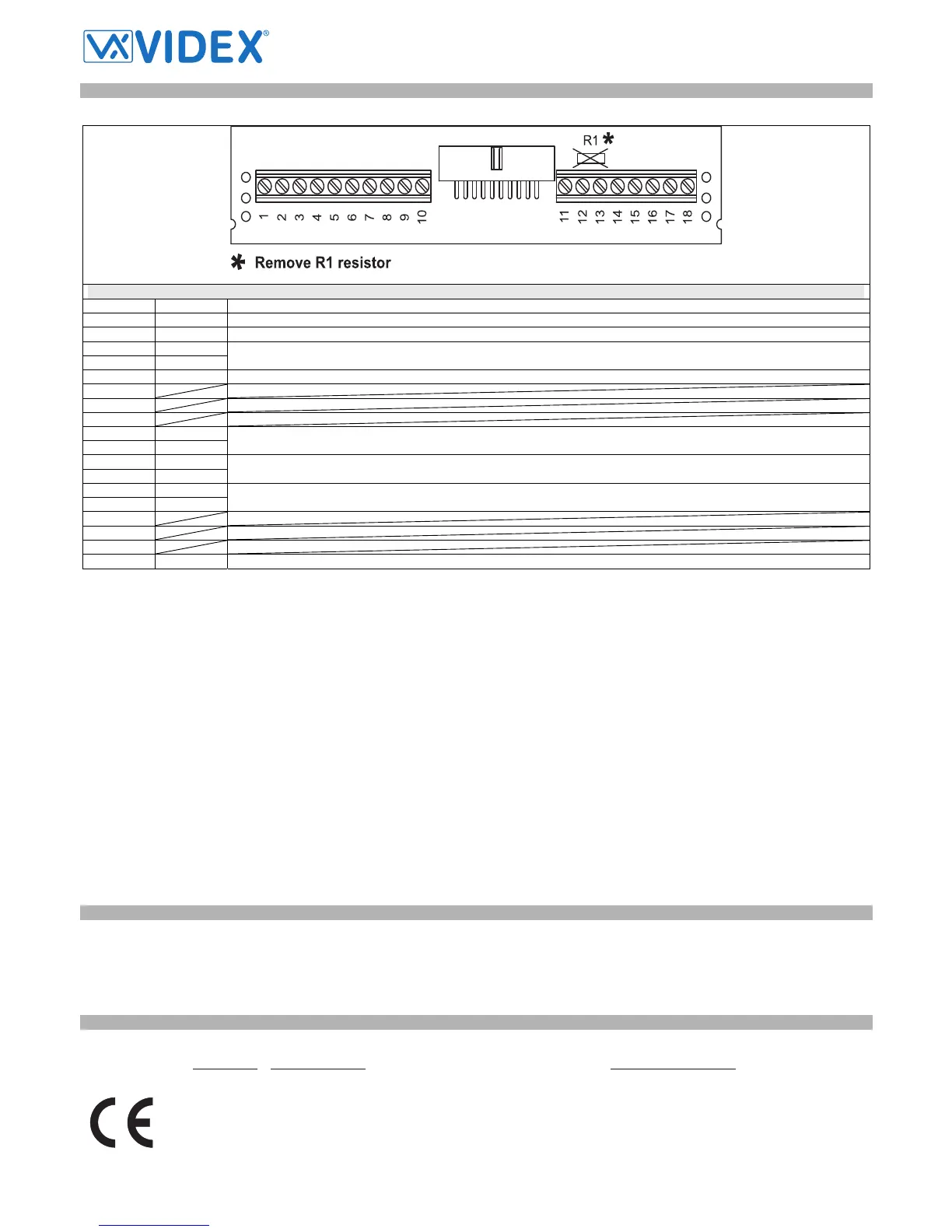

VIDEOPHONE CONNECTION BOARD ART.3980
As 3000 series videophones also this version uses the Art.3980 connection board.
Fig.3
SIGNALS ON TERMINALS OF ART.3980 CONNECTION BOARD
Terminal Signal Description
1 -LD
Door open LED ground signal input
2 AL
Alarm input (not implemented)
3 S
4 S
Contacts for “S” service push button. Linked together when the button is pressed
5 GND
Ground signal
6
7
8
9 Vin
10 -
Auxiliary power supply input (for local power supply)
11 BUS
12 BUS
Bus contacts
13 -
14 LB
Local bell contacts
15
16
17
18 +LD
Door open LED power supply (12Vdc)
SPECIFICATION
Housing/Mounting
3000 Series Videophones / mounting plate plus connection board
Push buttons
Yes, 5
Programming
Yes, carried out by the dip-switches located on the rear of the videophone
Controls
Call tone volume, contrast and brightness
Power Supply
Supplied by the BUS line
Working Temperature
-10 +50 ºC
CUSTOMER SUPPORT INFORMATION
All Countries Customers UK Customers
VIDEX Electronics S.p.A.
www.videx.it
– technical@videx.it
Tel.+39 0734 631669
Fax +39 0734 632475
VIDEX Security LTD
www.videx-security.com
Tech Line 0191 224 3174
Fax 0191 224 1559
The product is CE marked demonstrating its conformity and is for distribution within all
member states of the EU with no restrictions.
This product follows the provisions of the European Directives
89/336/EEC & 92/31/EEC (EMC),
73/23/EEC (LVD) and 93/68/EEC (CE marking).
Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito
liberamente all’interno dei paesi membri dell’unione europea EU.
Questo prodotto è conforme alle direttive Europee
89/336/EEC & 92/31/EEC (EMC),
73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).
