Water Cycle Setting
Very important: It is necessary to select one of the 3 setings
for the water cycle and according to the height of the water column.
Without this setting the power and control module will not work.
Important: to change the setting after installation proceed as follows:
Remove the fuse or disconnect the main positive wire (+)
Activate the corresponding key
Place the fuse or connect the main positive cable (+)

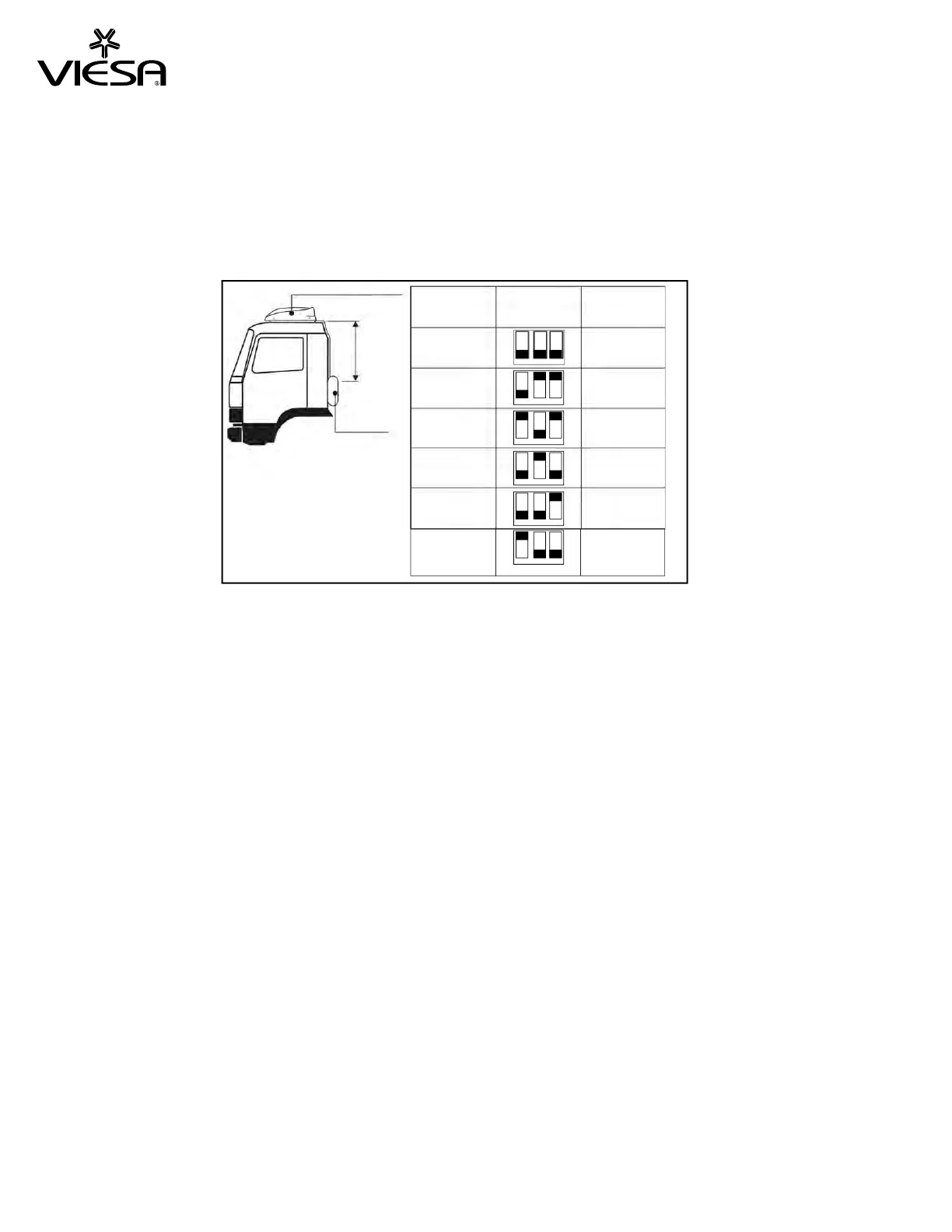

Evaporator Unit
Water
column
Water
WATER COLUMN
tank
1.25-2.00 mts.
0.40-1.20 mts.
USE KEY N°
WORKING TIME
10 Sec.
14 Sec.
17 Sec.
25 Sec.
(Do not use)
30 Sec.
(Do not use)
2.00-3.00 mts.
1
2
3
ON
1
2
3
ON
1
2
3
ON
1
2
3
ON
1
2
3
ON
12
3
ON
Higher than
3.00 mts.
35 Sec.
(Do not use)
