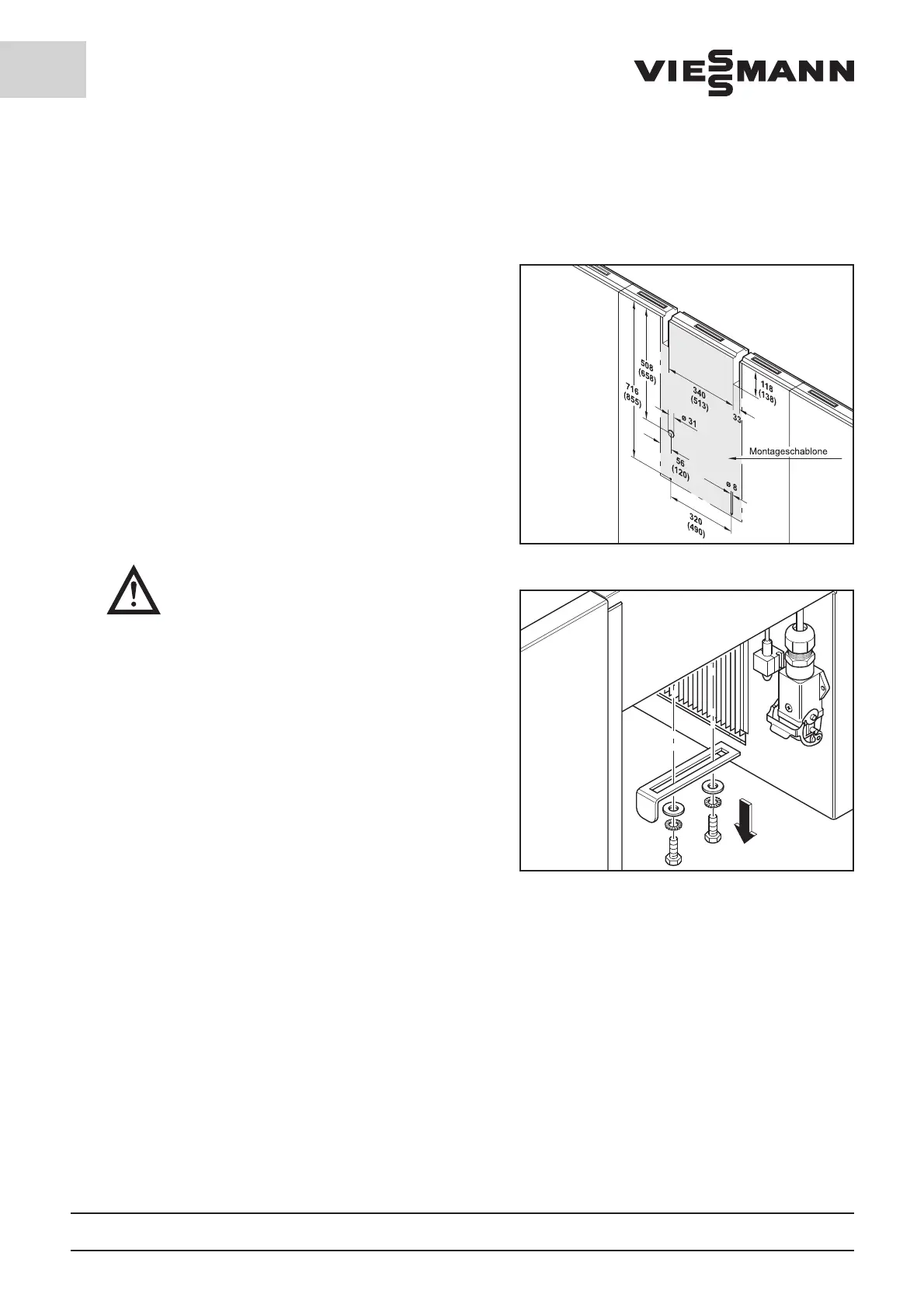

2.1.1 Drilling diagram for fastening the large condensation unit
(CS 2000, CS 2800, FS 1400, FS 1800, FS 2400)
Distance to wall 60 mm.
2.1.2 Drilling diagram for fastening the small condensation unit
(CS 0900, CS 1300, FS 0900)
Distance to wall 60 mm
Conections for
refrigerant and electro
lines to the evaporator
Wall
Ceiling
min. 60 mm
Two drill holes
with 12 mm
12 mm
min.
250 mm
94 mm
420 mm
240 mm
600 mm
390 mm
850 mm
Conections for
refrigerant and electro
lines to the evaporator
Wall
Ceiling
min. 60 mm
Two drill holes
with 12 mm
12 mm
240 mm
220 mm
290 mm
427 mm
700 mm
min.
250 mm
94 mm
