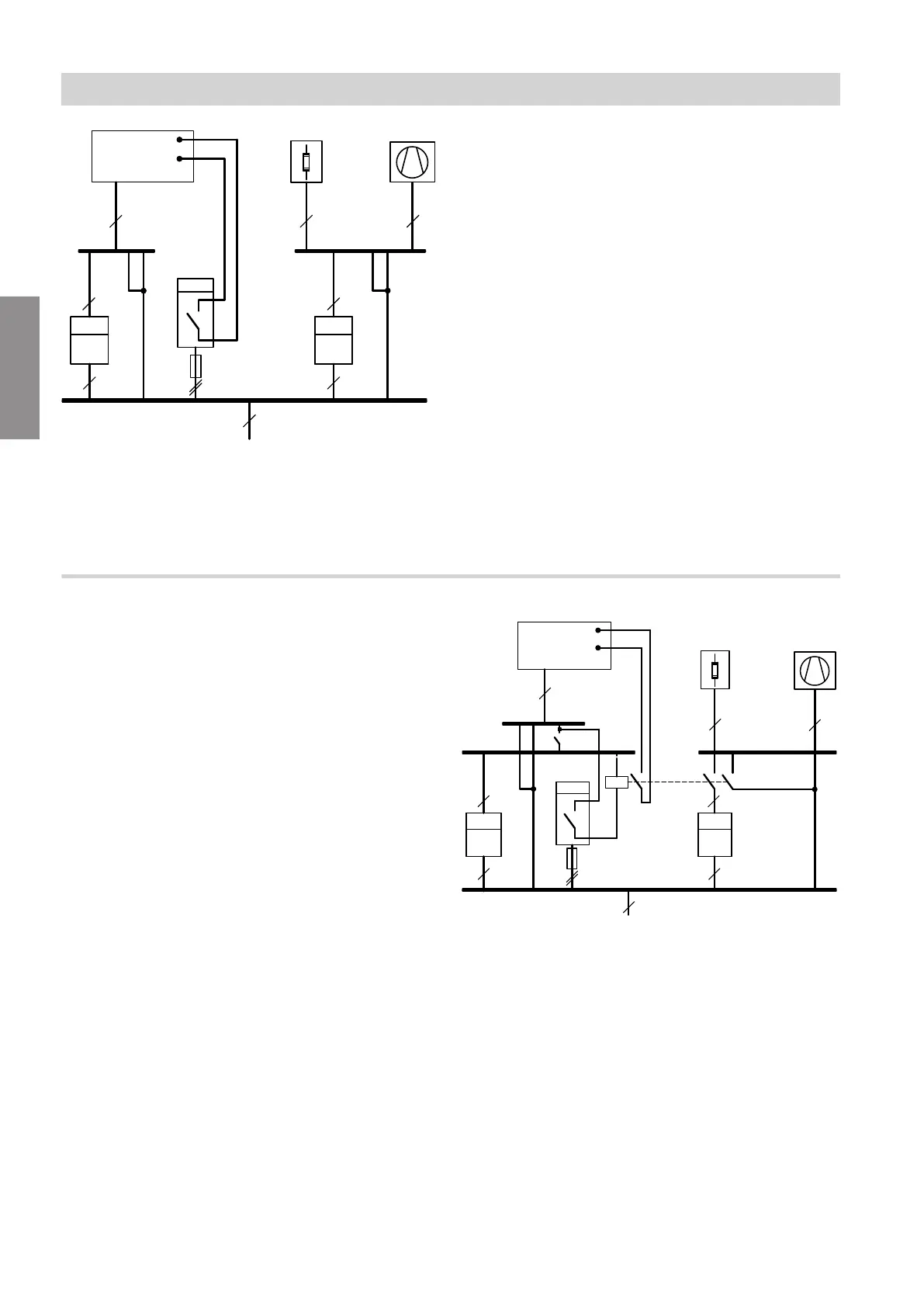

Fig. 54 Diagram excluding fuses and RCD
A
Heat pump control unit (indoor unit, luster termi-
nals: See chapter "Indoor unit: Electrical terminal
areas")
B
Instantaneous heating water heater (if installed)
C
Heat pump compressor (outdoor unit)
D
Heat pump control unit power supply: See chapter
"Heat pump control unit power supply 230 V~"
E
Premium tariff meter
F
Ripple control receiver backup fuse
G
Ripple control receiver (contact open: Power-OFF
enabled); feed: TNC system
H
Economy tariff meter
K
Feed: TNC system
Power supply with power-OFF: With on-site load disconnect
The power-OFF signal is connected to the on-site con-
tactor of the economy tariff power supply and to the
heat pump control unit.
With heat pump cascades, the power-OFF signal must
be connected to all heat pumps in parallel and in the
same phase. An additional contactor relay is required
for this: See page 57.
The compressor and instantaneous heating water
heater (if installed) are "forced" off when power-OFF is
active.
Note
Observe the technical connection requirements of the
relevant power supply utility.
C
B
≈
E H
3
3
4
4
3
3/N
3/N
G
K
4
kWh
kWh
3
L
D
7
5 (400 V~)
(230 V~)
X3.7
X3.6
A
X40
F
Fig. 55 Diagram excluding fuses and RCD
A
Heat pump control unit (indoor unit, luster termi-
nals: See chapter "Indoor unit: Electrical terminal
areas")
B
Instantaneous heating water heater (if installed)
C
Heat pump compressor (outdoor unit)
D
Heat pump control unit power supply: See chapter
"Heat pump control unit power supply 230 V~"
E
Premium tariff meter
F
Ripple control receiver backup fuse
G
Ripple control receiver (contact open: Power-OFF
enabled) with backup fuse
H
Economy tariff meter
K
Feed: TNC system
L
Mains isolator
Installation sequence
Power supply (cont.)
