Additional Information
10

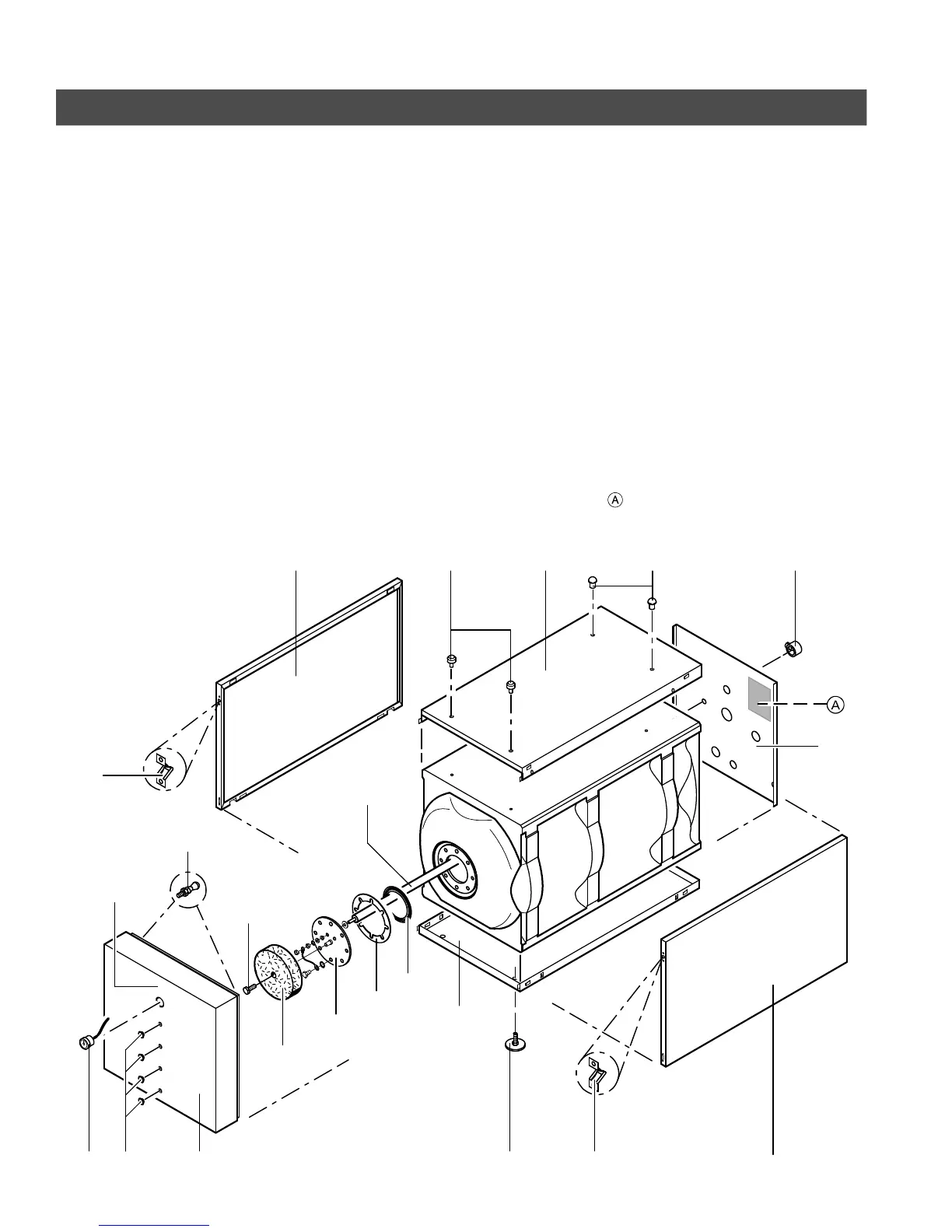

Parts List
Ordering Replacement Parts:
Please provide tank Model and Serial
Number from rating plate when
ordering replacement parts. Order
replacement components from your
Viessmann distributor.
Parts
001 Top panel
002 Side panels (right/left)
003 Panel plug
004 Positioning plug
005 Strain relief
006 Back panel
007 Leveling bolt
008 Base panel
009 Gasket
010 Spacer ring
011 Consumable anode
012 Flange (with position numbers 009
and 010)
013 Insulation ring
014 Panel plug with lamellae
015 Front panel
016 Panel caps
017 Thermometer
026 Vitocell 100 nameplate
027 Accessory pack to mount front
panel
Parts not illustrated
018 Decorative stripe
019 Temperature and pressure relief
valve
020 Installation Instructions
022 Start-up/Service Instructions
023 Operating Instructions and User’s
Information Manual
024 Spray paint, vitosilver
025 Touch-up pen, vitosilver
Rating plate
027
014
026
003001004
006
027
015
016
017
002
008
013
007 027
002 005
011
009
010
012
5167 515 - 01

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Viessmann Vitocell 100 and is the answer not in the manual?

Viessmann Vitocell 100 Specifications

General IconGeneral
Capacity120, 500 liters
Heat ExchangerStainless steel
Corrosion ProtectionCeraprotect enamel coating and magnesium anode
Maximum Operating Pressure10 bar
Maximum Flow Temperature95°C
Connections1" connections for heating and DHW
