Specification
Rated voltage 230 V/50 Hz
Rated breaking capacity of the con-
tact 6(1) A 250 V ~
Protection IP 20 to EN 60529
safeguard through appropri-
ate design and install ation
Permissible ambient temperature
during operation 0 to +40 °C
during storage and transport -20 to +60 °C
Set value range for standard and
reduced mode 10 to 30 °C
Set room temperature i n standby
mode 6 °C

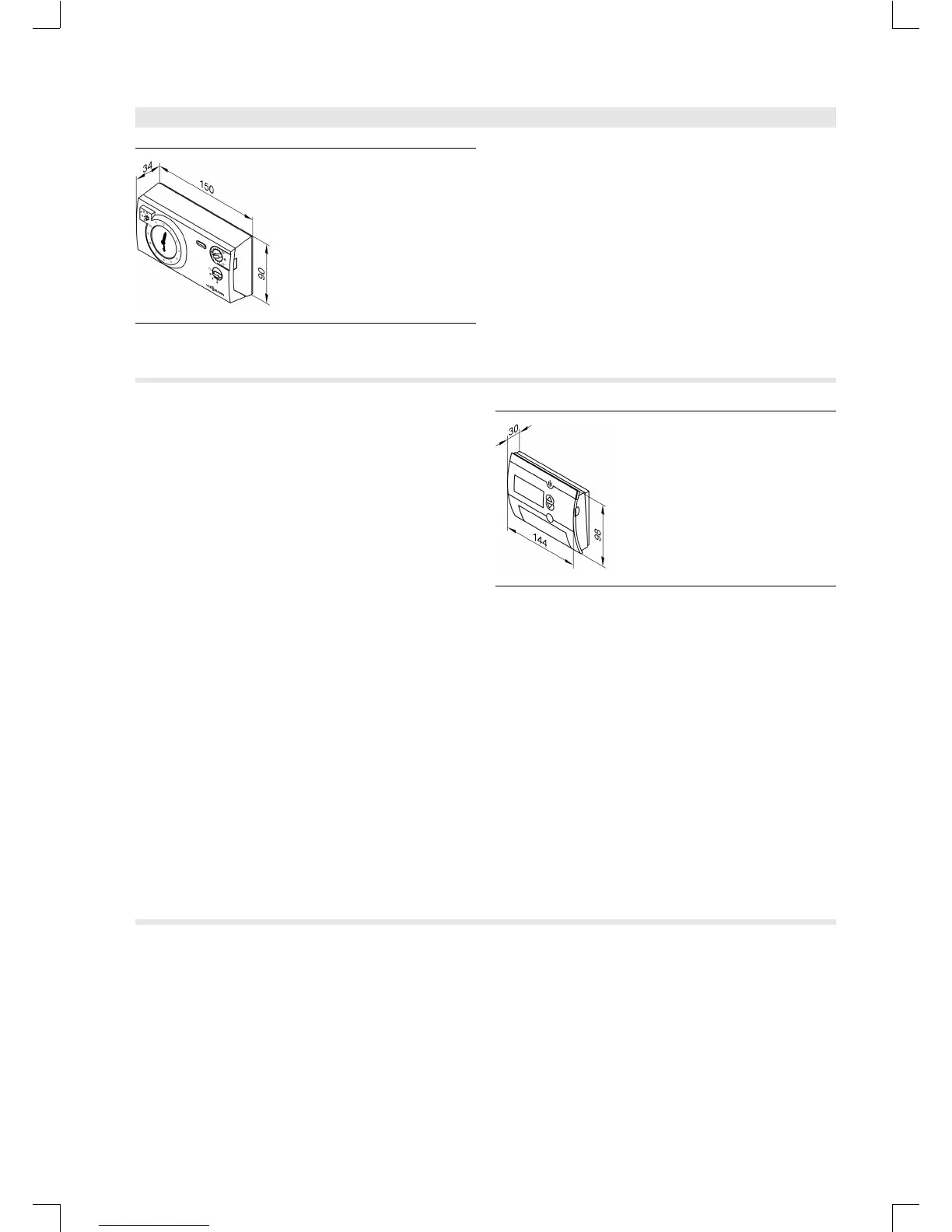

Vitotrol 100, type UTD
Part no. 7179 05 9
Room thermostat
&
With switching output (two-point output)
&
With digital time switch
&
With individual day and 7-day programs
&
With rotary selector for t he fol lowing settings:
Standard room temperature "Permanent comfort"
Reduced room temperature "Permanent setback"
Frost protection temperature "Frost"
2 f ixed time programs
1 ind ividually adj ustable time program
Holiday program
&
With selector keys for party and economy mode
Install the Vitotrol 100 in the main living room on an internal wall
opposite radiators, but not inside shelf units, recesses, immedi-
ately by a door or a heat source (e.g. direct sunlight, fireplace, TV
set, etc.).
Operation without power supply (two 1.5 V round alkaline cells,
type LR6 (AA), which run for approx. 18 months)
Control unit connection:
2-core cable with a cross-section of 1.5 mm
2
for 230 V~
Connection via a LV cable is possible in conjuncti on wi th the
external extension H4 (accessories).
Specification
Rated voltage 3 V
Rated breaking capacity of the zero
volt contact
max. 6(1) A 230 V ~
min. 1 mA 5 V
Protection IP 20 to EN 60529
safeguard through appropri-
ate design and install ation
Function RS type 1B to EN 60730-1
Permissible ambient temperature
during operation 0 to +50 °C
during storage and transport -10 to +60 °C
Setting range
Comfort temperature 10 to 30 °C
Setback temperature 10 to 30 °C
Frost temperature 6 to 10 °C
Power reserve during battery
change 10 min
Vitocom 100, type FA1
Part no. 7178 18 8
KM BUS user
&
For remote reporting, remote monitoring and scanning of faults
via the telephone system
&
For remote control of heating systems via the telephone system
Configuration:
&
Telephone operating wi th the dual tone multi frequency (DTMF)
method
&
D1/D2/EPlus/O
2
mobile phones
&
Configuration tool (software for PC)
Fault messages are transmitted to the following communica-
tion services via the telephone system:
&
Fax
&
D1/D2 mobile phone
Standard delivery:
&
Vitocom 100
&
Power s upply cable (2.0 m long)
&
Connecting ca ble wi th RJ11 plug for telephone socket (3.0 m
long)
&
Adaptor RJ11/TAE6N
&
KM BUS cable with plug aVG (3.0 m long)
For accessories and further details, see the Viessmann technical
guide "Communication systems"
5822 335-1 GB
VITOPEND 222 VIESMANN 17
AccessoriesfortheVitotronic100,typeHC1 (cont.)
