Configuration via:
&
Vitosoft 200, type LNR via Optoli nk
&
Vitodata 300
Data points provided by the heating control unit are hooked up to
Vitocom 300 via LON. Additional settings can be made during
commissioning, if system-specific special functions, such as mon-
itoring limits, are required.
Fault messages are reported to the Vitodata 300 server via the
internet. These messages are then t ransferred by the
Vitodata 300 server to the following communication services:
&
PC wi th internet access
&
Fax
&
Text message to D1/D2/E-Plus/O
2
[or other] mobile phones
&
E-mail
&
Voicemail
On-site requi rements:
&
Analog telephone connection
– for type FA3 with TAE socket, code "6N"
– for type FI1 with RJ45 socket (ISDN)
&
LON communication module (accessories)
Standard delivery:
&
LON connecting cable RJ45 — RJ45 for data exchange
between the Vitotronic and Vitocom 300 (7.0 m long)
&
Power supply unit
*
1
&
Power c able from the power supply unit to the basic module
&
Basic module
*
1
(with 8 digital inputs, 2 digital outputs and 2
sensor inputs):
– Type FA1: with integral analog modem and connecting cable
for telephone socket TAE 6N (2.0 m long)
– Type FE1: with connecting cable with RJ45 plug and sub-D
plug (9 PIN) as a modem connecting cable (GSM modem
accessories) or a suitable external ISDN terminal adaptor
– Type FI1: with integral ISDN modem and connecting cable
with RJ45 plug for ISDN s ocket (2.0 m long)
Accessories:
Accessories Part no.
Wall mounting enclosure for the installation of the
Vitocom 300 module, if no control panel or electrical
distribution panel is avai lable
2 rows 7143 434
3 rows 7143 435
Expansion module
*
1
– 10 digital inputs
– 7 analog inputs (2 may b e configured as pulsed
inputs)
– 2 digital outputs
– see the basic module for dimensions
or
7143 431
– 10 digital inputs
– 7 analog inputs (2 may b e configured as pulsed
inputs)
– 2 digital outputs
– 1 M BUS interface with connection of up to, for
example, 250 M BUS capable heat meters with M
BUS slave interface to EN 1434-3
– see the basic module for dimensions
7159 767
Uninterruptibl e power suppl y unit
*
1
(UPS) 7143 432
Additional rechargeable battery pack
*
1
for UPS
– practical for: 1 basic module, 1 expansion module
and allocatio n of all inputs
– required for: 1 basic module and 2 expansion
modules
7143 436
Accessories Part no.
Extension of the connecting cable
Installation distance 7 to 14 m
– 1 connecti ng ca ble (7.0 m long)
and
1 LON coupling RJ45
7143 495
and
7143 496
Installation distance 14 to 900 m
– 2 LON plug-in connectors RJ45
and
2-core cable, CAT5, screened or JY(St)
Y2x2x0.8
or
7199 251
and
on-site
– 2 connecti ng ca bles (7.0 m long)
and
2 LON sockets RJ45, CAT6
and
2-core cable, CAT5, screened or JY(St)
Y2x2x0.8
7143 495
and
7171 784
and
on-site

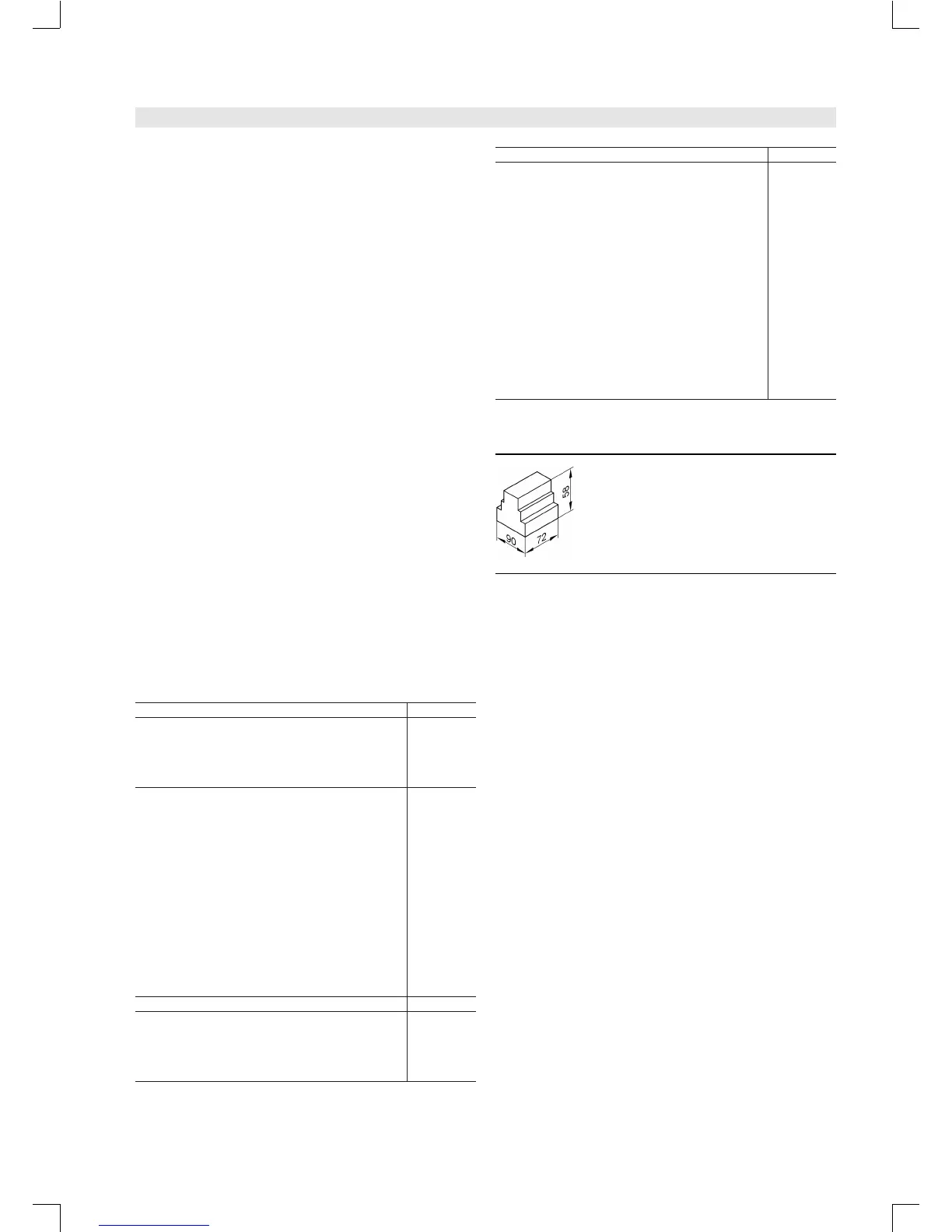

Power supply unit (standard delivery, Vitocom 300):
Specification
Rated voltage 85 to 264 V ~
Rated frequency 50/60 Hz
Rated current 0.55 A
Output voltage 24 V –
Output current 1.5 A
Protection class II
Protection IP 20 to EN 60529;
safeguard through appro-
priate d esign and installa-
tion
Potential separati on
primary/secondary SELV to EN 60 950
Electrical safety EN 60 335
Permissible ambient temperature
– for operation with supply voltage
U
E
187 to 264 V
-20 to +55 °C
Installation in living
spaces or boiler rooms
(standard ambient condi-
tions)
– for operation with supply voltage
U
E
100 to 264 V
-5 to +55 °C
Installation in living
spaces or boiler rooms
(standard ambient condi-
tions)
– during storage and transport -25 to +85 °C
5822 335-1 GB
VITOPEND 222 VIESMANN 23
*1
Carrier rai l i nstallation TS35 to DIN EN 50 022, 35 x 15 and 35 x 7.5.
AccessoriesfortheVitotronic200,typeHO1 (cont.)
