3) SERIAL PORT : This is used to connect your receiver with computer through a serial cable.
This port can be used for upgrading software.
4) S/PDIF DIGITAL OUTPUT : This port is for the connection to the extenal Hi-Fi system which has a
optical S/PDIF input interface.
5) VIDEO, AUDIO R/L, COMPONENT( Y ,Pb, Pr ): These RCA connectors are used to connect any
external video and audio.
6) IN FROM ANT/CATV : This is used to connect your local RF channels to your TV through Loop.
7) OUT TO TV : This is used to connect your TV through RF cable.
8) POWER INPUT : This is to plug in the AC main power cord.
The input AC volts range is 95V~240V, 50/60Hz supply.
9) S-VIDEO : This is used to connect your TV through S-Video Cable.
10) CH 3,4 : The switch select RF 3,4 channel number.
11) POWER SWITCH : This is a swith to turn on and off the AC main power.

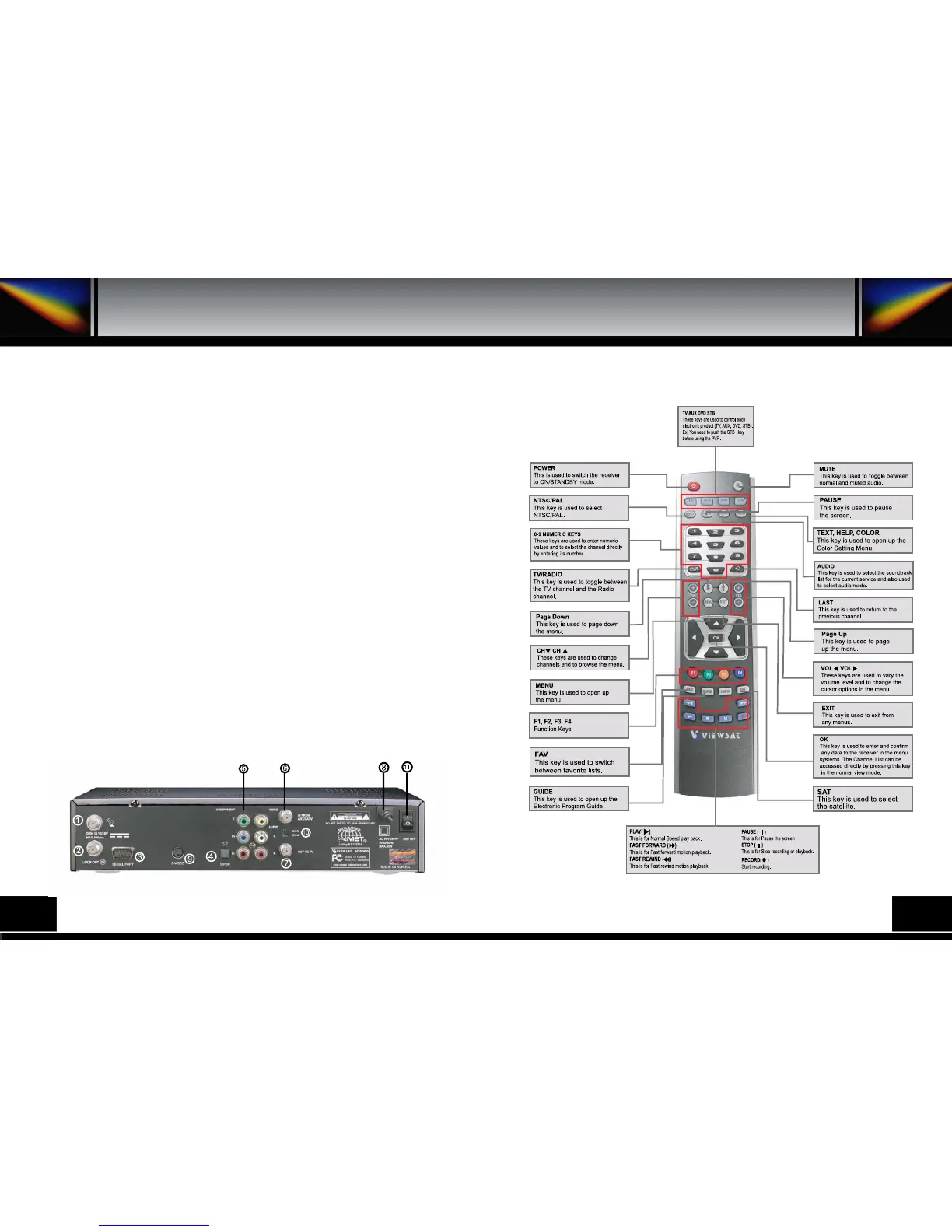

4.C. REMOTE CONTROL UNIT
1) DISH IN : This port is to connect the coaxial cable from LNB of your Dish. The IF input is provided
through this port and the input frequency range is 9502150MHz. Also the voltage switching
13V and 18V is passed through this port.
2) LOOP OUT : To enable the connection of an analog receiver, the receiver is provided with this port.
Connect this port to DISH IN(LNB IN) port of the other receiver via RF Cable.
4. B. REAR PANEL
