ViewSonic DSM3210 - Rear View of the Product

ViewSonic DSM3210
8
ENGLISH

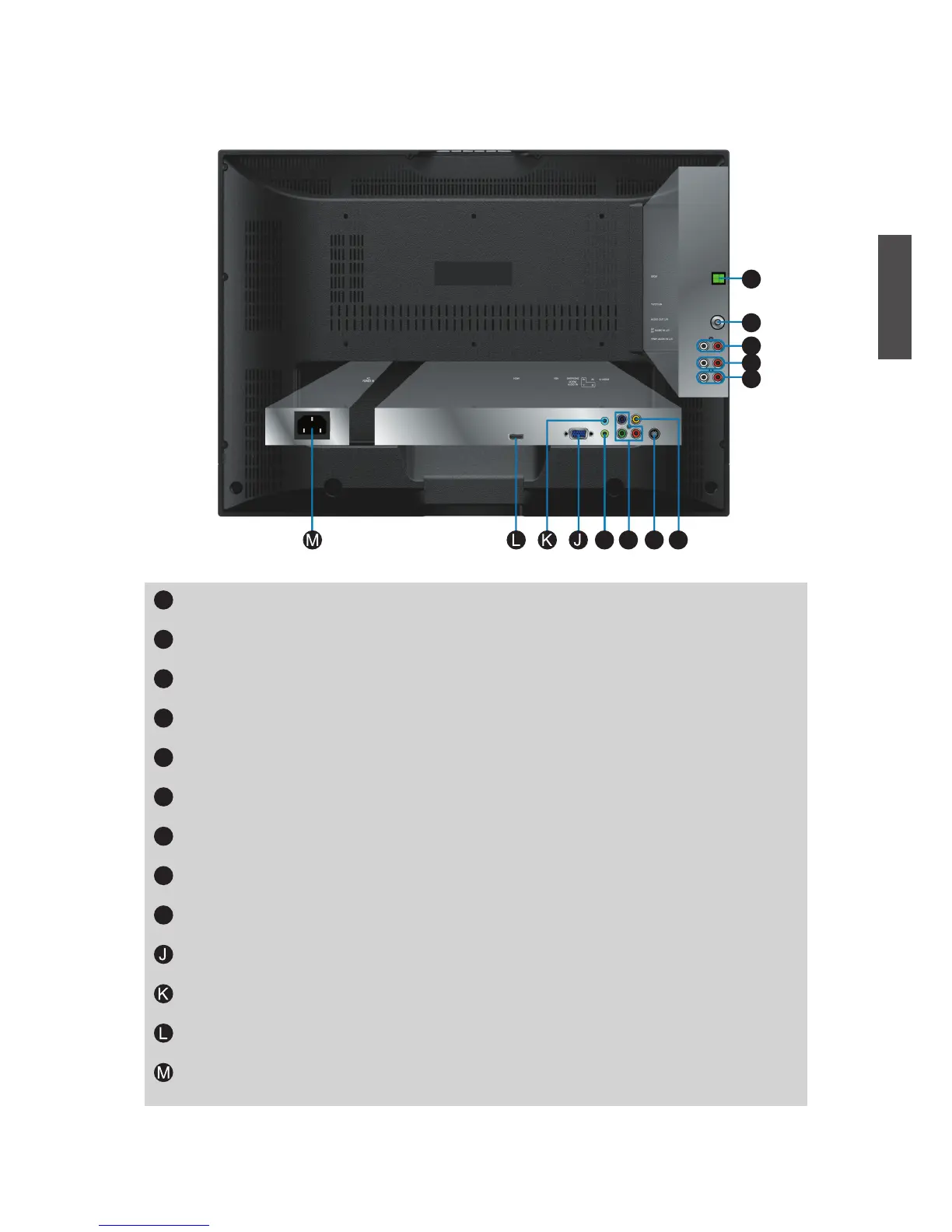

Rear View of the Product
SPDIF Optical output
Connect this port to the SPDIF input of A/V device.
Cable/Air input jack
Connect this port to RF/ CATV/ Digital cable.
Audio output
Connect this port to your A/V device with audio in (RCA) connectors or to audio amplifier.
AV/ S-Video signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
YPbPr signal Audio input (left/right)
Connect this port to the RCA audio output connectors of your A/V device.
Composite Video input
Connect this port to the composite video output of A/V device.
S-Video input
Connect this port to the S-Video output of A/V device.
YPbPr signal input
Connect this port to the YPbPr output of A/V device.
PC Audio input
Connect this port to PC line out jack.
VGA signal input
Connect this port to the VGA output of your PC.
Headphone Jack
Connect this port to your headphone.
HDMI Input Terminal
Connect this port to the HDMI output of A/V device.
Power (AC input)
Using power cord provided, connect to a power source.
